BNC 1105 Universal Counter - Manual (Page 57)

57 57 57 57

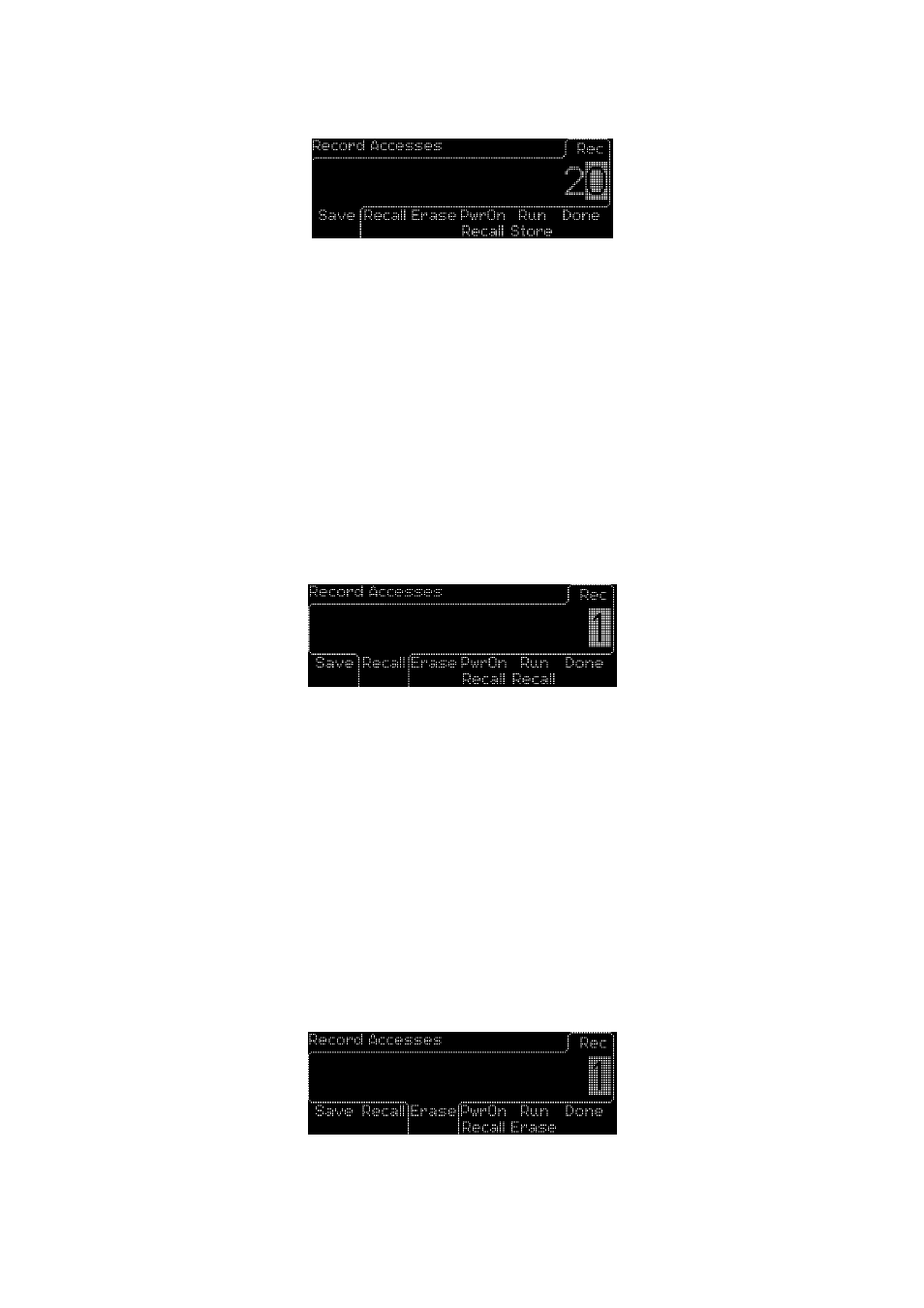

Figure 4-23
Remote Interface Command
*SAV
To recall measurement setting
1. Press SAVE&RECALL button.
2. Use the softkey under Recall to select the “recall” function.
3. Toggle the same Recall softkey to enter the memory address from
which you want to recall the settings.
4. Press the softkey under Run Recall to do the recall action as shown
in the Figure 4-24.
Figure 4-24
Remote Interface Command
*RCL
To erase measurement setting
1. Press SAVE&RECALL button.
2. Use the softkey under Erase to select the “erase” function.
3. Toggle the same Erase softkey to enter the memory address in
which you want to erase the settings.
4. Press the softkey under Run Erase to do the erasion as shown in the
Figure 4-25.
Figure 4-25
