4.4 Setting Scale and Offset
The MODEL 1105 provides the option of performing scaling and offset
calculations on the measurement results before they are displayed. The
mathematical formula involved is listed as follows:
(Displayed Result) = (Scale x Measurement Result) + Offset
The Scale and Offset are user-specified parameters as shown in the
Figure 4-10, and provide multiplication and addition functions for user
purposes to offset systematic errors or to present the percentage
difference between signals. This option is disabled by default. It is
automatically turned on when either Scale or Offset is specified.

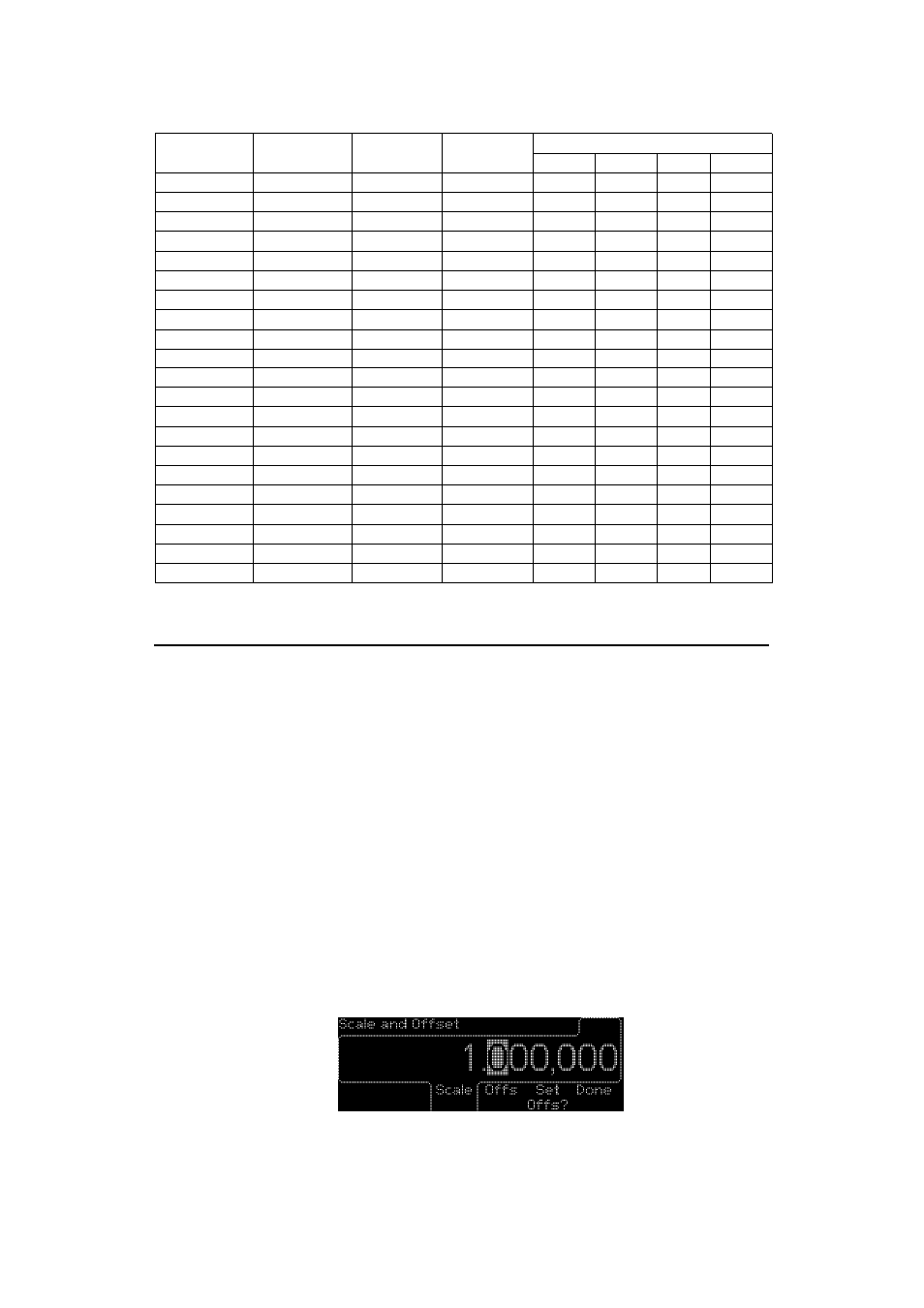

Figure 4-10
Front-Panel Arming Setting
*START *DELAY STOP* DELAY*
IMMediate IMMediate IMMediate IMMediate Auto ---- Auto None
IMMediate IMMediate IMMediate TIMer Auto ---- Auto Time
IMMediate IMMediate IMMediate INTernal2 Auto ---- Auto Event
EXTernal IMMediate IMMediate IMMediate Ext None Auto None
EXTernal IMMediate IMMediate TIMer Ext None Auto Time
EXTernal IMMediate IMMediate INTernal2 Ext None Auto Event
EXTernal IMMediate EXTernal IMMediate Ext None Ext None
EXTernal IMMediate EXTernal TIMer Ext None Ext Time
EXTernal IMMediate EXTernal INTernal2 Ext None Ext Event
EXTernal TIMer IMMediate IMMediate Ext Time Auto None
EXTernal TIMer IMMediate TIMer Ext Time Auto Time
EXTernal TIMer IMMediate INTernal2 Ext Time Auto Event
EXTernal TIMer EXTernal IMMediate Ext Time Ext None
EXTernal TIMer EXTernal TIMer Ext Time Ext Time
EXTernal TIMer EXTernal INTernal2 Ext Time Ext Event
EXTernal INTernal1 IMMediate IMMediate Ext Event Auto None
EXTernal INTernal1 IMMediate TIMer Ext Event Auto Time
EXTernal INTernal1 IMMediate INTernal2 Ext Event Auto Event
EXTernal INTernal1 EXTernal IMMediate Ext Event Ext None
EXTernal INTernal1 EXTernal TIMer Ext Event Ext Time
EXTernal INTernal1 EXTernal INTernal2 Ext Event Ext Event
ESTART:LAY2
:SOURce
ESTART:LAY1
:SOURce
ESTOP:LAY2
:SOURce
ESTOP:LAY1
:SOURce
