2. Press TIME&PERIOD button.
3. Use the softkey under (INTVL 1 to 2) to select interval
measurement
4. Press CH1 (or CH2) button to enter the channel conditioning menu.
5. Press the softkey under TRIG SENS to enter the trigger setting
menu.
6. Press the softkey under Com. to select OFF (or ON) as shown in the
Figure 4-22. This instructs the Counter to count the signal interval
time from channel 1 (or 2) to channel 2 (or 1).

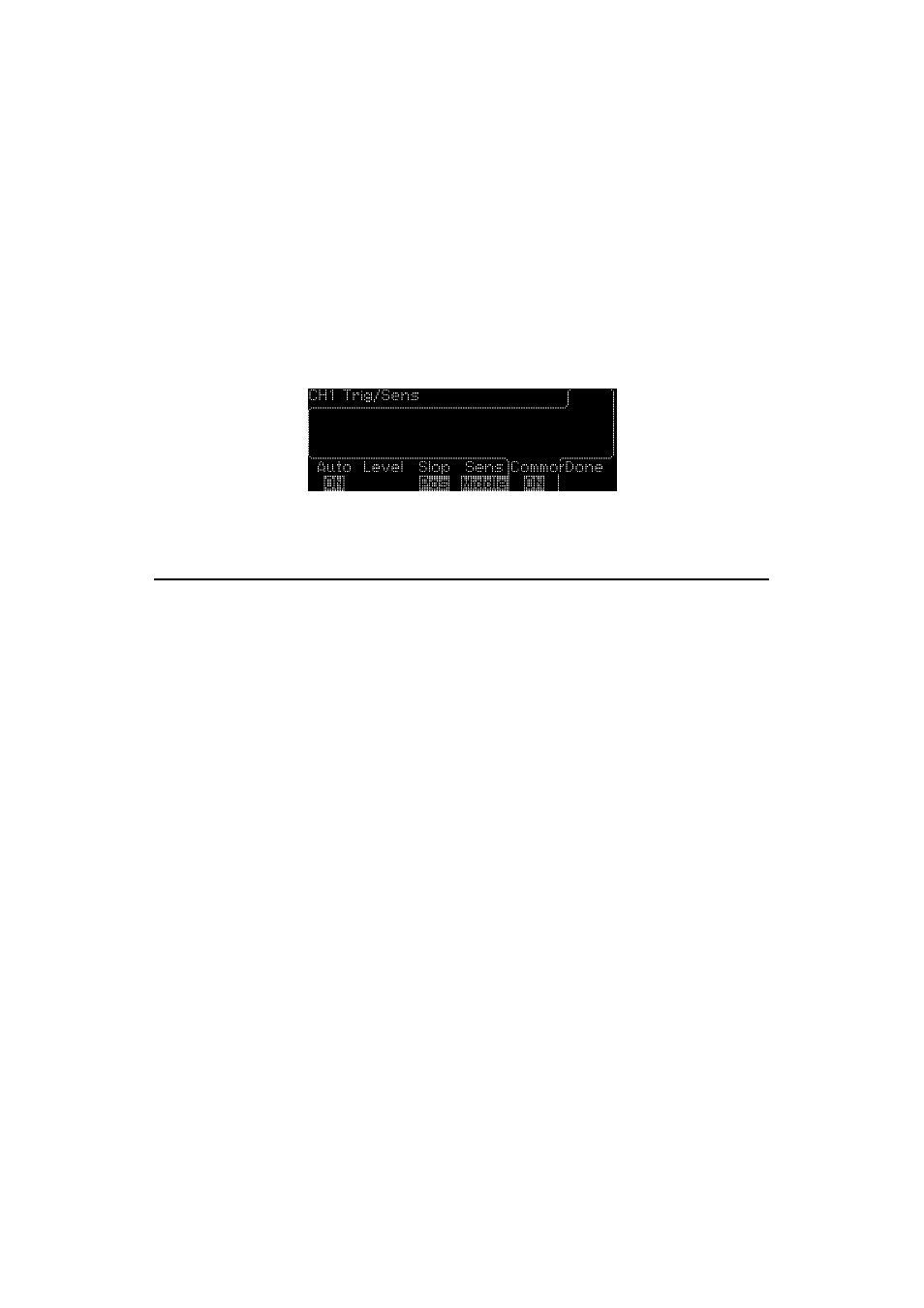

Figure 4-22
4.9 Save and Recall Functions
The MODEL 1105 universal counter provides functions to save and recall
your measurement settings which determine how the MODEL 1105
measures, analyzes and reports answers, especially, the functions can
reserve measurement settings, desired precision, specific offset/scale,
limit range and statistics. The settings are stored in non-volatile memory
and will not be erased after power-down. The MODEL 1105 can save up
to 20 different measurement settings as shown in the Figure 4-23. Refer
to Table in Appendix B for all the measurement parameters that are
handled by Save and Recall function.
To save measurement setting
1. Press SAVE&RECALL button.
2. Use the softkey under SAVE to select “save” function.
3. Toggle the same softkey or use the numeric or arrow keys to enter
the memory address (1-20) to which you want to save the current
settings.
4. Press the softkey under ENTER to select one of specified records.
5. Press the softkey under Run Store to do the save action as shown in
Figure 4-23.
