2. Mounting
2-8
Festo P.BE-MTR-DCI-IO-EN en 1209d
In order to fit Festo axes e.g. DMES or DGE axially, you will
require couplings and coupling housings as accessories. The
motor unit is connected to the axis by means of a clamp in the
coupling housing. Additional motor flanges are not therefore
necessary.
Fit the motor onto the permitted axis in accordance with the
Øassembly instructions for the motor mounting kit recom-
mended in the catalogue.
25°
25°
50°
6xM3x6
32°
4xM4x10
4xM3x7
4x
90°
4x
90°
28°
4xM5x10
4X
90°
45°
4xM5x10
4x
90°
30°
MTR-DCI-32 MTR-DCI-42
MTR-DCI-52 MTR-DCI-62
Ш 32
Ш3
2
Ш3
6
Ш5
0
Ш4
0

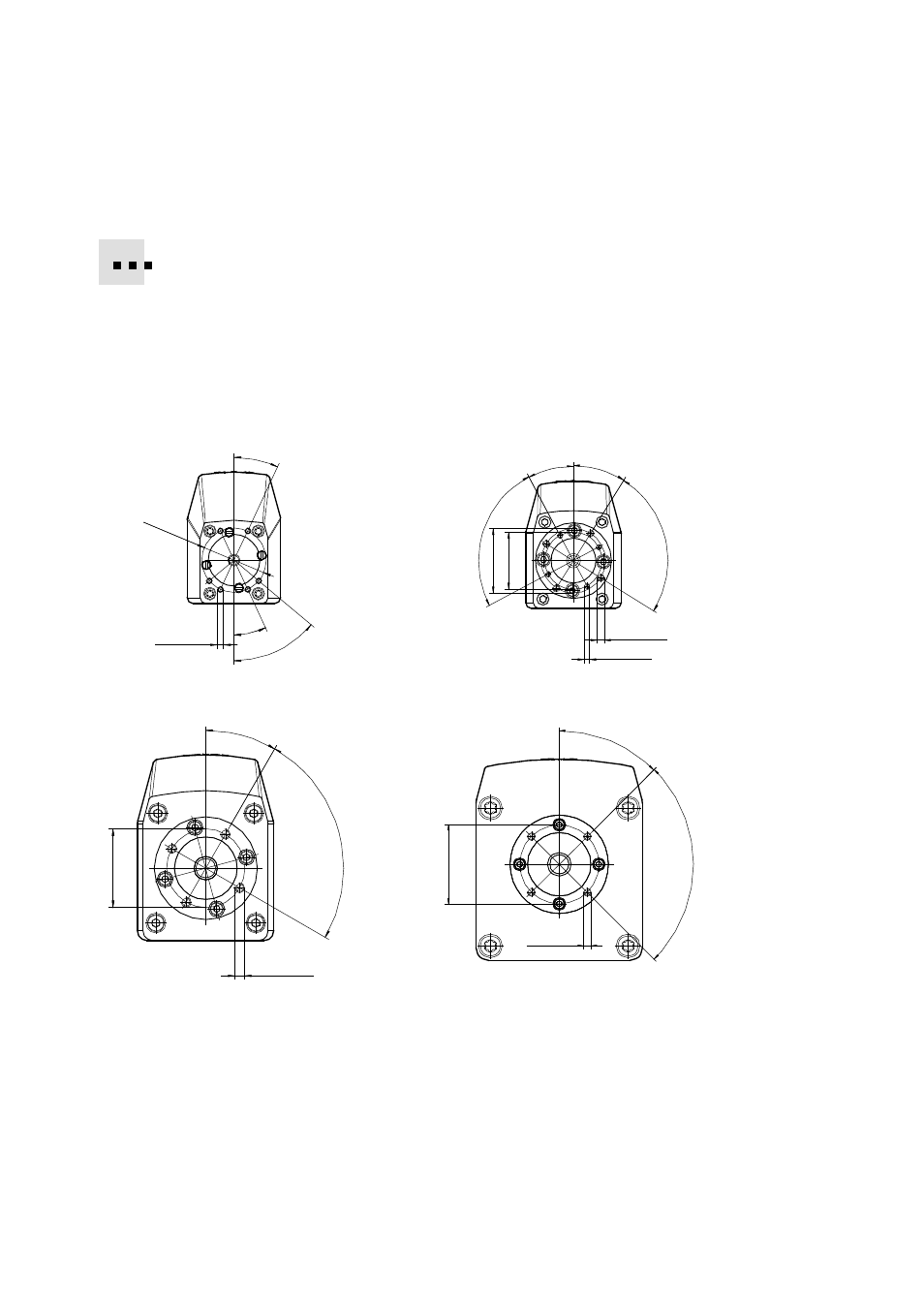

Fig. 2/2: Fastening the drive by means of the front threads (direct fastening)
