14. Orient the DLCM properly at a comfortable height above the pump and align the slot in the DLCM
coupling with the 'flats' on the adjustment shaft by turning the Manual Control knob on the DLCM.
Do not turn the PULSAR gear box adjustment shaft!
15. Lower the DLCM onto the gear box.

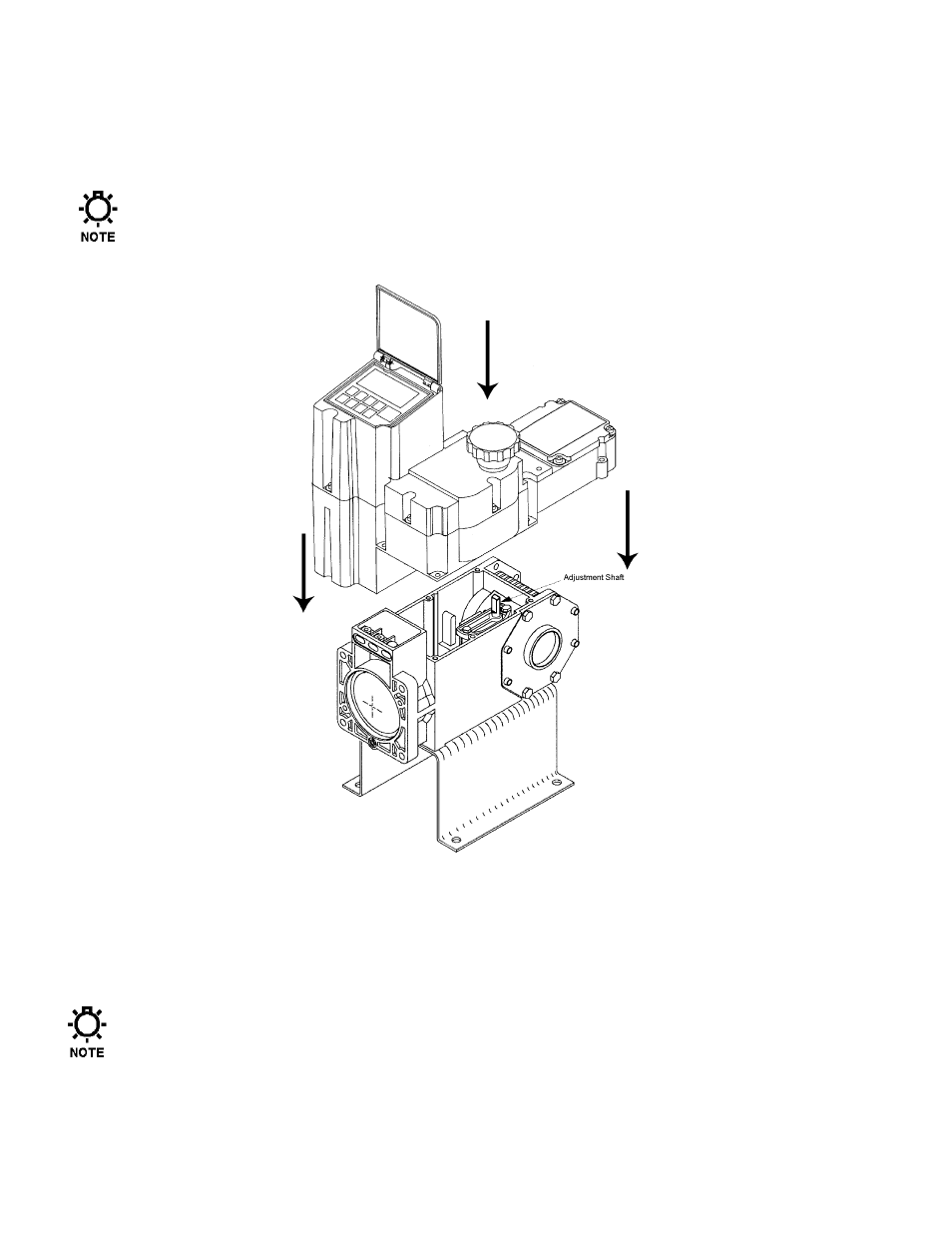

Figure 32 – Positioning the DLCM
It may be necessary to tip the DLCM slightly towards the motor to clear the Motor adapter.
a) With the DLCM approximately 25mm (1 inch) above the gear box, make a fine adjustment to align
the slot in the DLCM coupling with the adjustment shaft 'flats'.
b) Once aligned, lower the DLCM to mate with the gear box.
Do not force the cover! When the coupling is properly aligned, the DLCM will seat itself under its own
weight.
