Pulsafeeder Pulsar DLCM User Manual
Page 114
108
5. Remove the Tachometer Sensor Input Cable on the Field Wiring Board.
a) Disconnect the wire (typically brown) connected to Pin 1 of J10.
b) Disconnect the wire (typically blue) connected to Pin 2 of J10
6. Disconnect the Tachometer Sensor Conduit Assembly nut from the Tachometer Sensor Conduit
Assembly and remove the Conduit Assembly and Tachometer Sensor wire from the DLCM housing.

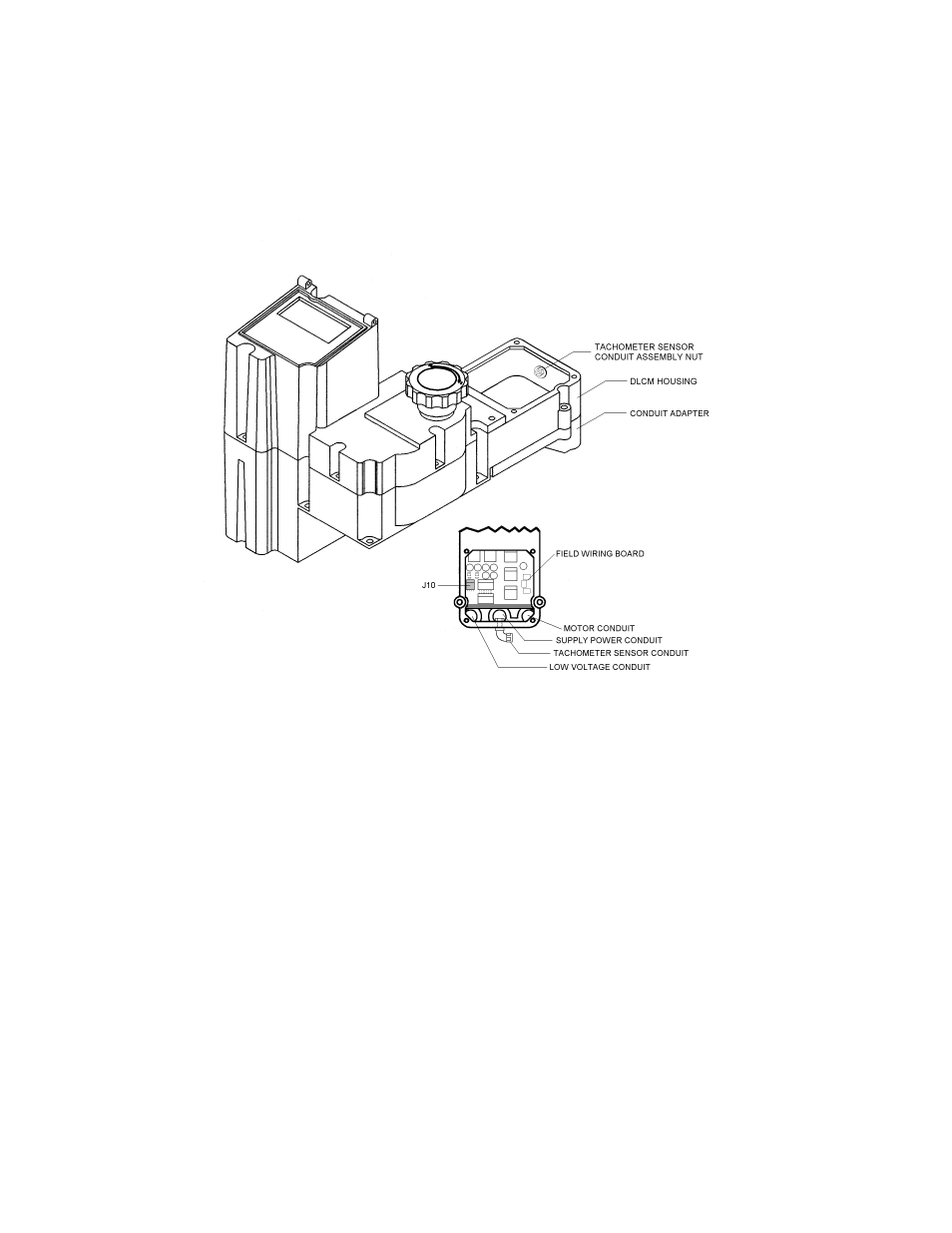

Figure 27 – Accessing the Tachometer Sensor Conduit
