Configuring the Switch

3-40

3

Community String – A community string that acts like a password and permits

access to the SNMP protocol.
Default strings: “public” (read-only), “private” (read/write)
Range: 1-32 characters, case sensitive

Access Mode

- Read-Only – Specifies read-only access. Authorized management stations are

only able to retrieve MIB objects.

- Read/Write – Specifies read-write access. Authorized management stations are

able to both retrieve and modify MIB objects.

Web – Click SNMP, Configuration. Add new community strings as required, select
the access rights from the Access Mode drop-down list, then click Add.

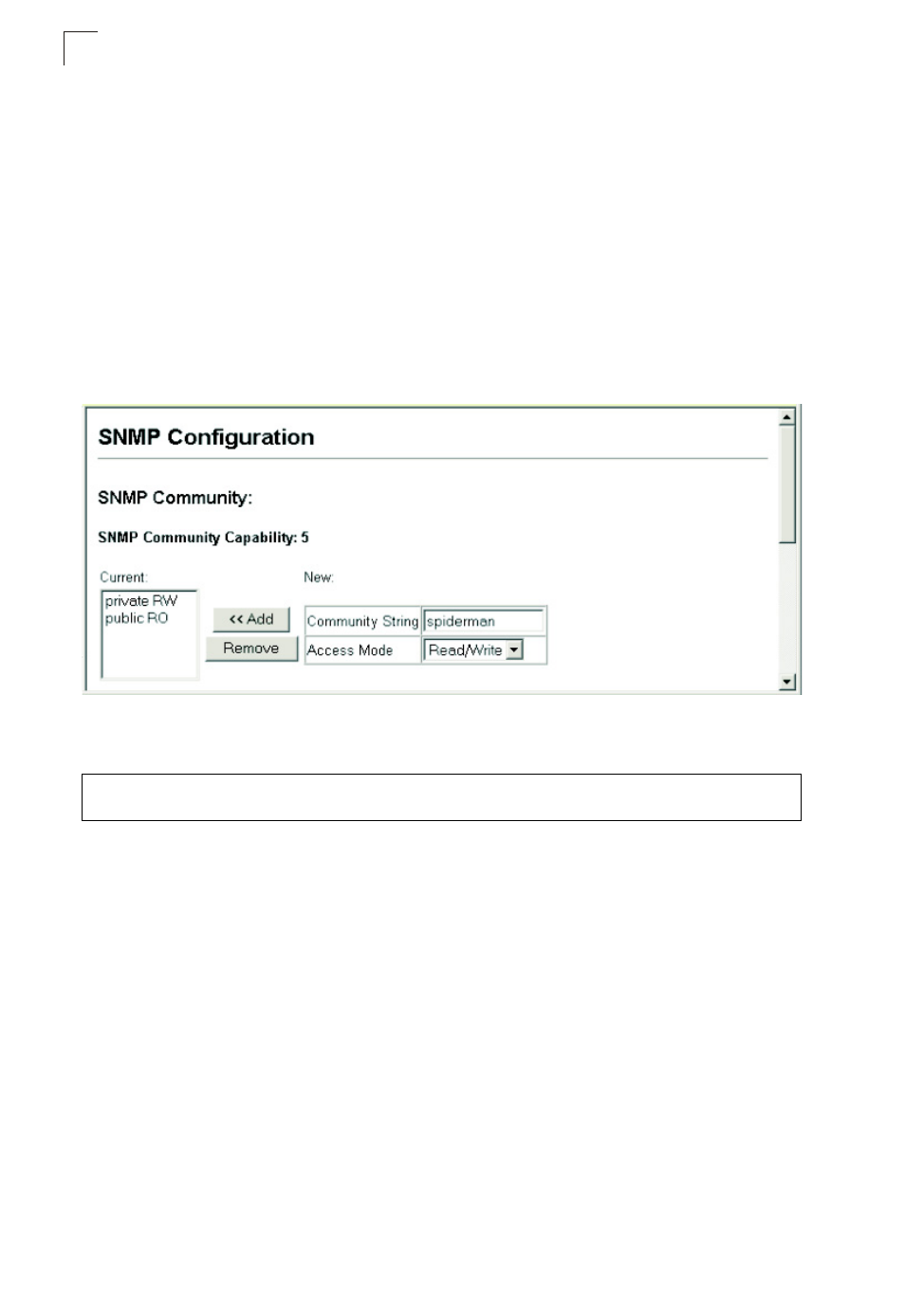

Figure 3-24 Configuring SNMP Community Strings

CLI – The following example adds the string “spiderman” with read/write access.

Specifying Trap Managers and Trap Types

Traps indicating status changes are issued by the switch to specified trap managers.
You must specify trap managers so that key events are reported by this switch to
your management station (using network management platforms such as HP
OpenView). You can specify up to five management stations that will receive
authentication failure messages and other trap messages from the switch.

Command Attributes
Trap Manager Capability – This switch supports up to five trap managers.
Current – Displays a list of the trap managers currently configured.
Trap Manager IP Address – IP address of the host (the targeted recipient).
Trap Manager Community String – Community string sent with the notification

operation. (Range: 1-32 characters, case sensitive)

Trap UDP Port – Sets the UDP port number. (Default: 162)

Console(config)#snmp-server community spiderman rw

4-152

Console(config)#
