Configuring the Switch

3-140

3

configuration message), a new root port is selected from among the device ports
attached to the network. (References to “ports” in this section means “interfaces,”
which includes both ports and trunks.)

Root Forward Delay – The maximum time (in seconds) this device will wait before

changing states (i.e., discarding to learning to forwarding). This delay is required
because every device must receive information about topology changes before it
starts to forward frames. In addition, each port needs time to listen for conflicting
information that would make it return to a discarding state; otherwise, temporary
data loops might result.

Transmission limit – The minimum interval between the transmission of

consecutive RSTP/MSTP BPDUs.

Path Cost Method – The path cost is used to determine the best path between

devices. The path cost method is used to determine the range of values that can
be assigned to each interface.

Web – Click Spanning Tree, STA, Information.

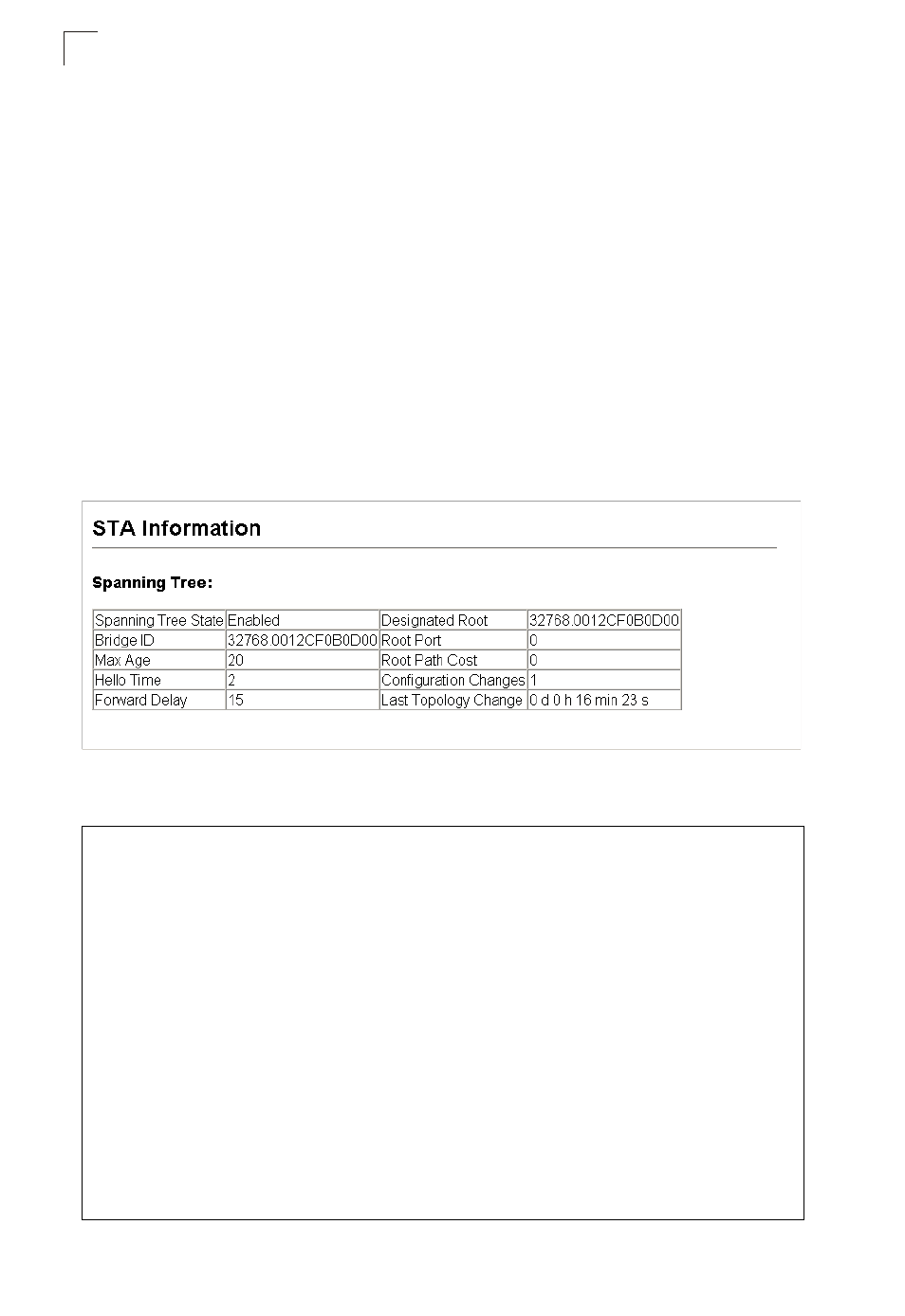

Figure 3-87 Displaying Spanning Tree Information

CLI – This command displays global STA settings, followed by settings for each port.

Console#show spanning-tree

4-235

Spanning-tree information
---------------------------------------------------------------
Spanning tree mode: RSTP
Spanning tree enabled/disabled: enabled
Priority: 32768
Bridge Hello Time (sec.): 2
Bridge Max Age (sec.): 20
Bridge Forward Delay (sec.): 15
Root Hello Time (sec.): 2
Root Max Age (sec.): 20
Root Forward Delay (sec.): 15
Designated Root: 32768.0012CF0B0D00
Current root port: 0
Current root cost: 0
Number of topology changes: 1
Last topology changes time (sec.):2262
Transmission limit: 3
Path Cost Method: long
.

.

.
