Class of Service Configuration
3-195
3

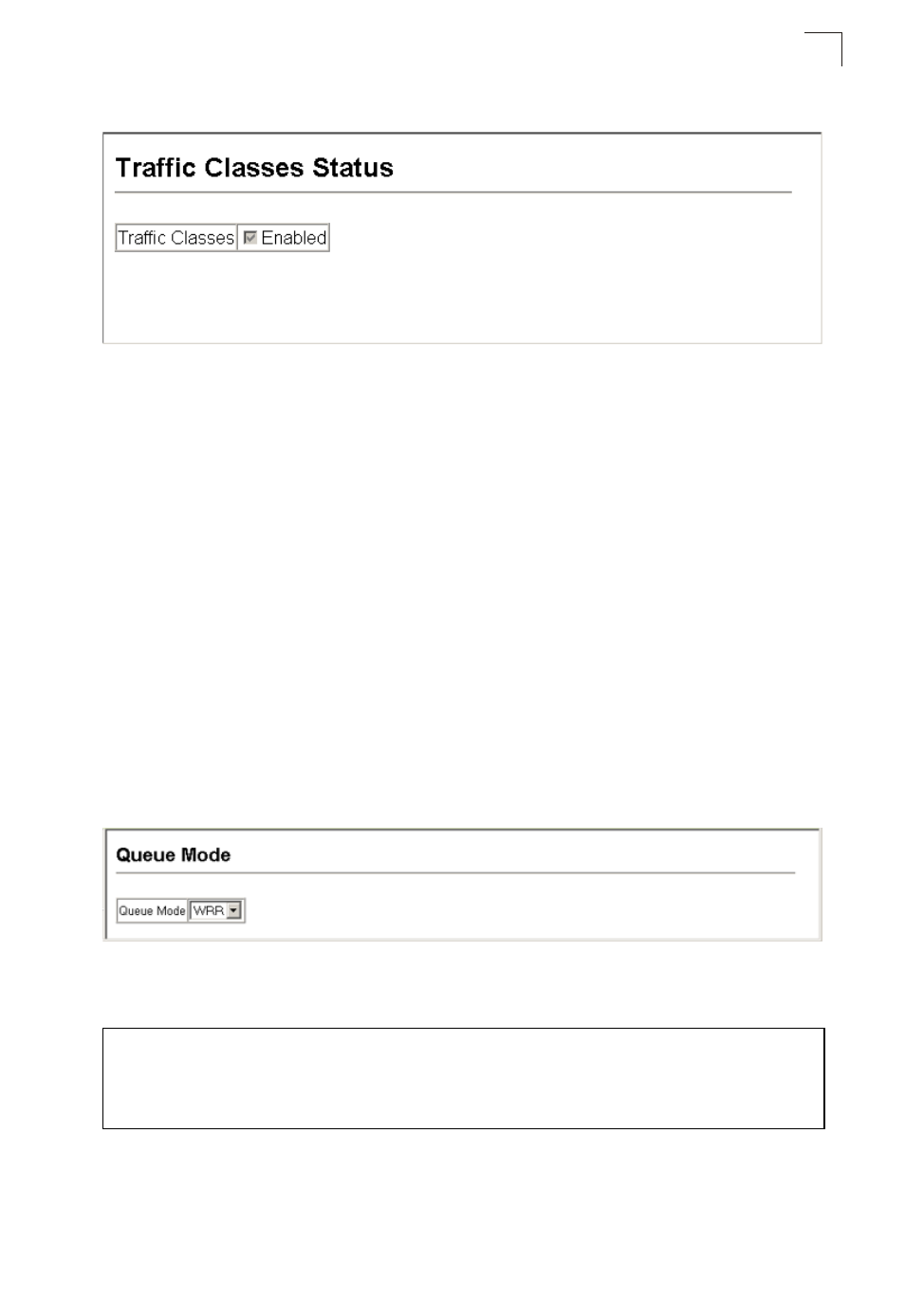

Web – Click Priority, Traffic Classes Status.
Figure 3-119 Enable Traffic Classes
Selecting the Queue Mode
You can set the switch to service the queues based on a strict rule that requires all
traffic in a higher priority queue to be processed before lower priority queues are
serviced, or use Weighted Round-Robin (WRR) queuing that specifies a relative
weight of each queue. WRR uses a predefined relative weight for each queue that
determines the percentage of service time the switch services each queue before
moving on to the next queue. This prevents the head-of-line blocking that can occur
with strict priority queuing.
Command Attributes
• WRR - Weighted Round-Robin shares bandwidth at the egress ports by using
scheduling weights 1, 2, 4, 8, for queues 0 through 3 respectively. (This is the
default selection.)
• Strict - Services the egress queues in sequential order, transmitting all traffic in the
higher priority queues before servicing lower priority queues.
Web – Click Priority, Queue Mode. Select Strict or WRR, then click Apply.
Figure 3-120 Queue Mode
CLI – The following sets the queue mode to strict priority service mode.
Setting the Service Weight for Traffic Classes
This switch uses the Weighted Round Robin (WRR) algorithm to determine the
frequency at which it services each priority queue. As described in “Mapping CoS
Console(config)#queue mode wrr 4-265
Console(config)#exit
Console#show queue mode
4-268
Queue mode: wrr
Console#
