Basic Configuration

3-17

3

Manual Configuration

Web – Click System, IP Configuration. Select the VLAN through which the
management station is attached, set the IP Address Mode to “Static,” enter the IP
address, subnet mask and gateway, then click Apply.

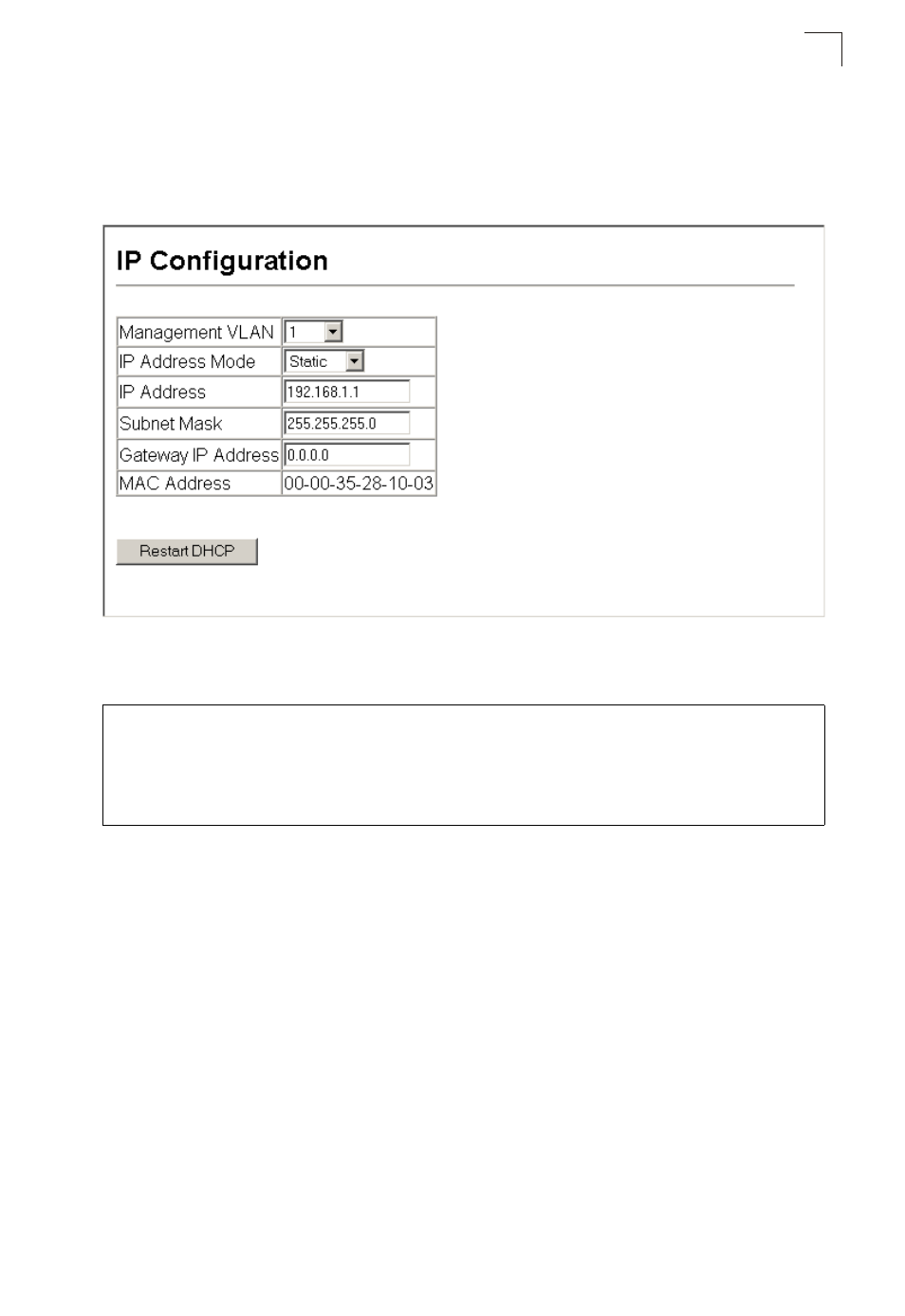

Figure 3-6 Manual IP Configuration

CLI – Specify the management interface, IP address and default gateway.

Console#config
Console(config)#interface vlan 1

4-166

Console(config-if)#ip address 192.168.1.1 255.255.255.0

4-309

Console(config-if)#exit
Console(config)#ip default-gateway 0.0.0.0

4-310

Console(config)#
