VLAN Configuration

3-173

3

Web – Click VLAN, 802.1Q VLAN, 802.1Q Tunnel Configuration or Tunnel Trunk
Configuration. Set the mode for a tunnel access port to 802.1Q Tunnel and a tunnel
uplink port to 802.1Q Tunnel Uplink. Click Apply.

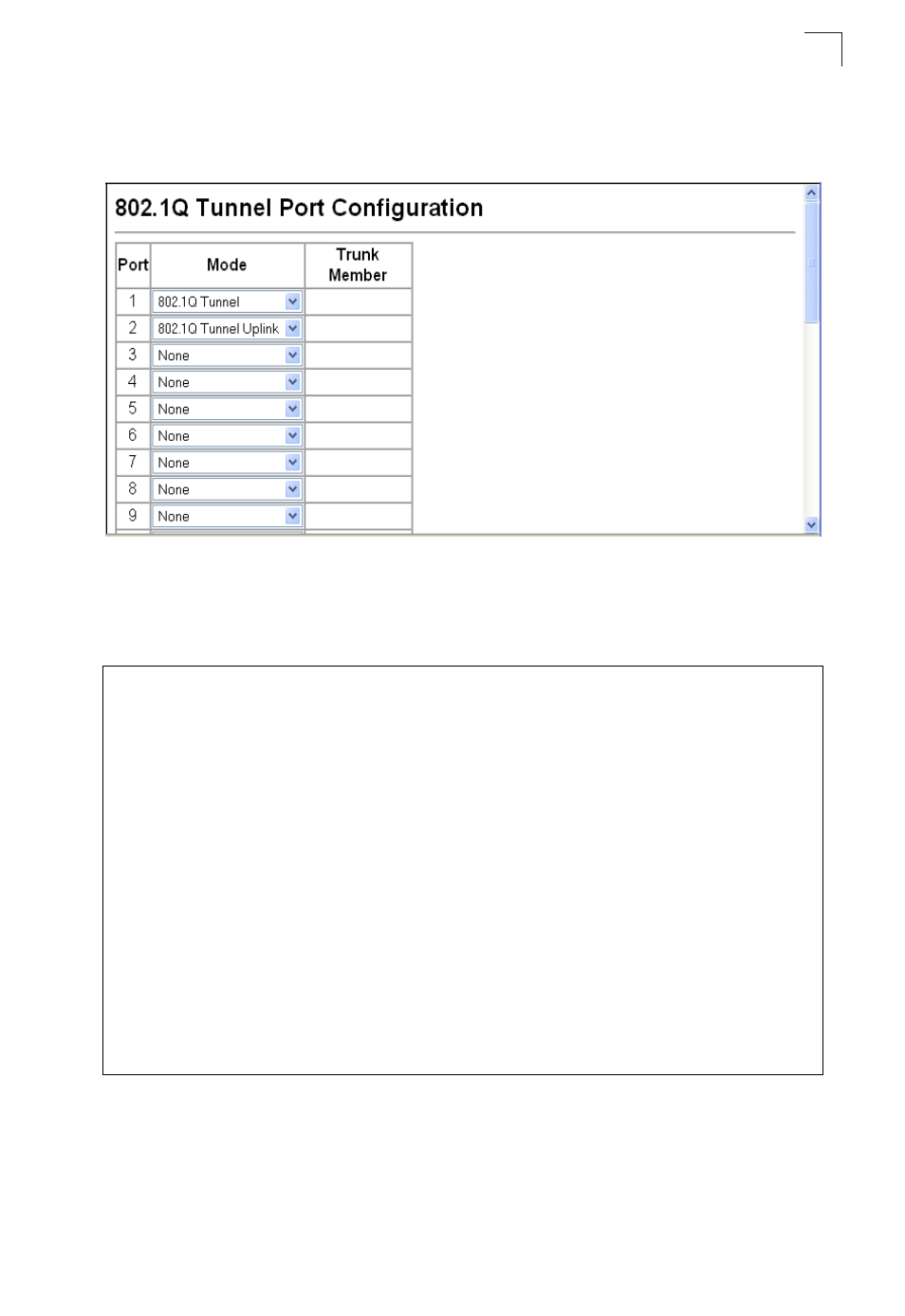

Figure 3-102 Tunnel Port Configuration

CLI – This example sets port 1 to tunnel access mode, indicates that the TPID used
for 802.1Q tagged frames is 9100 hexadecimal, and sets port 2 to tunnel uplink
mode.

Private VLANs

Private VLANs provide port-based security and isolation between ports within
the assigned VLAN. This switch supports two types of private VLANs: primary/
secondary associated groups, and stand-alone isolated VLANs. A primary VLAN

Console(config)#interface ethernet 1/1

4-166

Console(config-if)#switchport dot1q-tunnel mode access

4-252

Console(config-if)#switchport dot1q-tunnel tpid 9100

4-253

Console(config-if)#interface ethernet 1/2
Console(config-if)#switchport dot1q-tunnel mode uplink

4-252

Console(config-if)#end
Console#show dot1q-tunnel

4-253

Current double-tagged status of the system is Enabled

The dot1q-tunnel mode of the set interface 1/1 is Access mode, TPID is 0x9100.
The dot1q-tunnel mode of the set interface 1/2 is Uplink mode, TPID is 0x8100.
The dot1q-tunnel mode of the set interface 1/3 is Normal mode, TPID is 0x8100.
The dot1q-tunnel mode of the set interface 1/4 is Normal mode, TPID is 0x8100.
The dot1q-tunnel mode of the set interface 1/5 is Normal mode, TPID is 0x8100.
The dot1q-tunnel mode of the set interface 1/6 is Normal mode, TPID is 0x8100.
The dot1q-tunnel mode of the set interface 1/7 is Normal mode, TPID is 0x8100.
.
.
.
.
The dot1q-tunnel mode of the set interface 1/24 is Normal mode, TPID is 0x8100.
Console#
