Address Table Settings

3-135

3

Web – Click Address Table, Dynamic Addresses. Specify the search type (i.e., mark
the Interface, MAC Address, or VLAN checkbox), select the method of sorting the
displayed addresses, and then click Query.

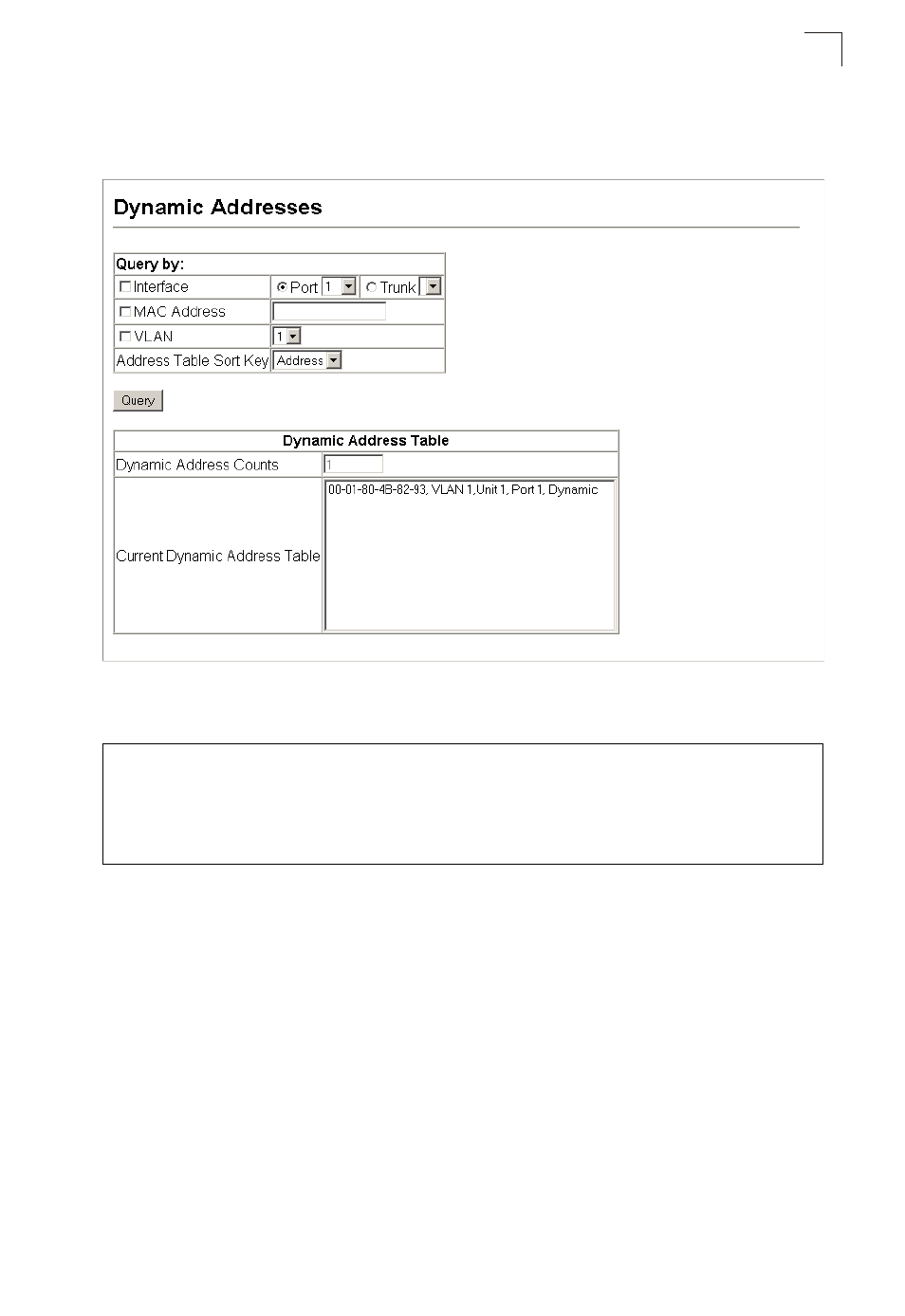

Figure 3-85 Configuring a Dynamic Address Table

CLI – This example also displays the address table entries for port 1.

Console#show mac-address-table interface ethernet 1/1

4-191

Interface Mac Address Vlan Type
--------- ----------------- ---- -----------------
Eth 1/ 1 00-12-CF-48-82-93 1 Delete-on-reset
Eth 1/ 1 00-12-CF-94-34-DE 2 Learned
Console#
