Configuring the Switch

3-226

3

General Configuration Guidelines for MVR

1.

Enable MVR globally on the switch, select the MVR VLAN, and add the
multicast groups that will stream traffic to attached hosts (see “Configuring
Global MVR Settings” on page 3-226)
.

2.

Set the interfaces that will join the MVR as source ports or receiver ports (see
“Configuring MVR Interface Status” on page 3-229).

3.

Enable IGMP Snooping to a allow a subscriber to dynamically join or leave an
MVR group (see “Configuring IGMP Snooping and Query Parameters” on
page 3-213)
. Note that only IGMP version 2 or 3 hosts can issue multicast join
or leave messages.

4.

For multicast streams that will run for a long term and be associated with a
stable set of hosts, you can statically bind the multicast group to the
participating interfaces (see “Assigning Static Multicast Groups to Interfaces” on
page 3-231)
.

Configuring Global MVR Settings

The global settings for Multicast VLAN Registration (MVR) include enabling or
disabling MVR for the switch, selecting the VLAN that will serve as the sole channel
for common multicast streams supported by the service provider, and assigning the
multicast group address for each of these services to the MVR VLAN.

Command Attributes
MVR Status – When MVR is enabled on the switch, any multicast data associated

with an MVR group is sent from all designated source ports, and to all receiver
ports that have registered to receive data from that multicast group. (Default:
Disabled)

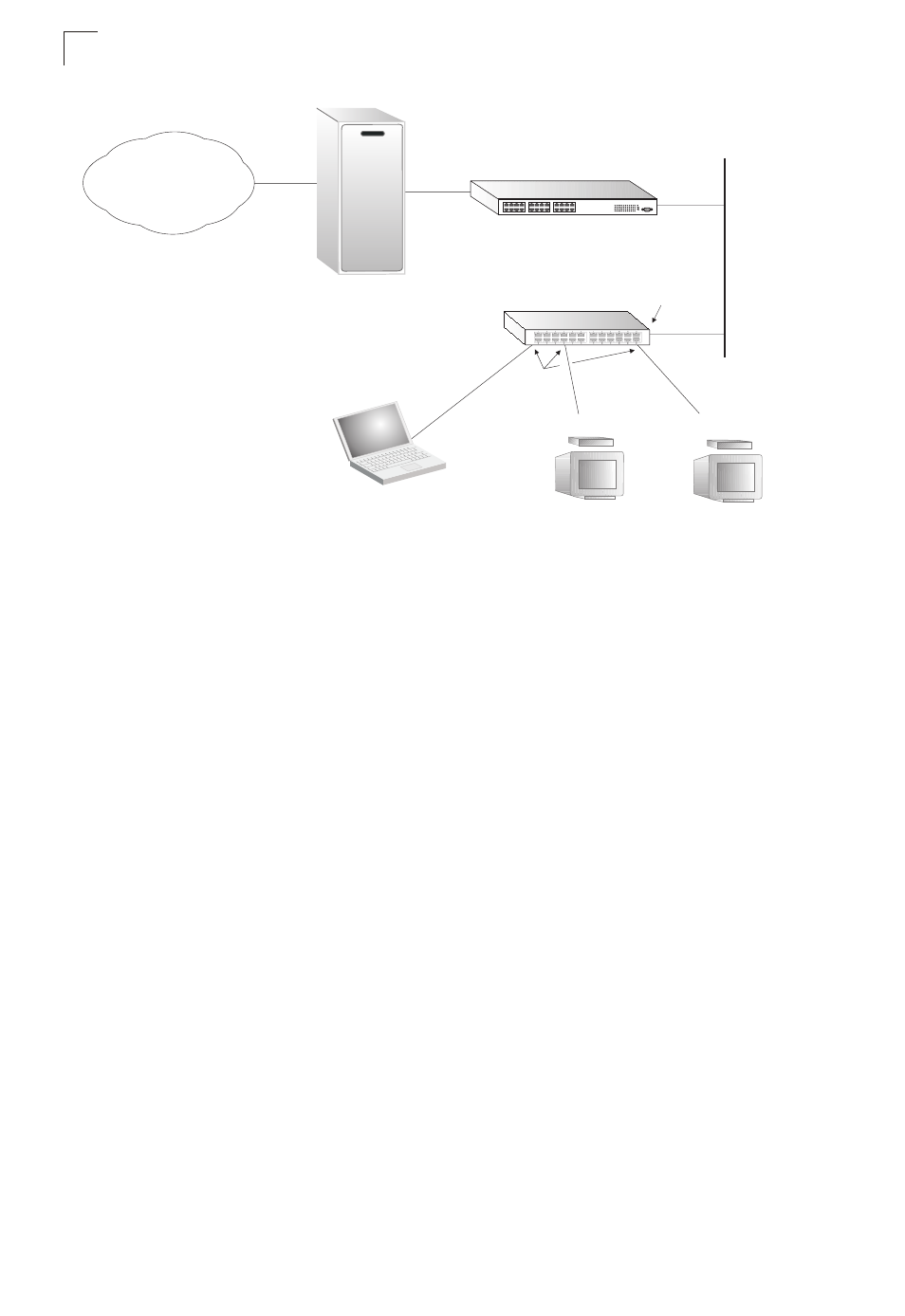

Multicast Router

Layer 2 Switch

Multicast Server

PC

TV

Set-top Box

TV

Set-top Box

Satellite Services

Service
Network

Source

Port

Receiver

Ports
