Configuring the Switch

3-160

3

Status – Shows how this VLAN was added to the switch.

- Dynamic GVRP: Automatically learned via GVRP.
- Permanent: Added as a static entry.

Egress Ports – Shows all the VLAN port members.
Untagged Ports – Shows the untagged VLAN port members.

Web – Click VLAN, 802.1Q VLAN, Current Table. Select any ID from the scroll-down
list.

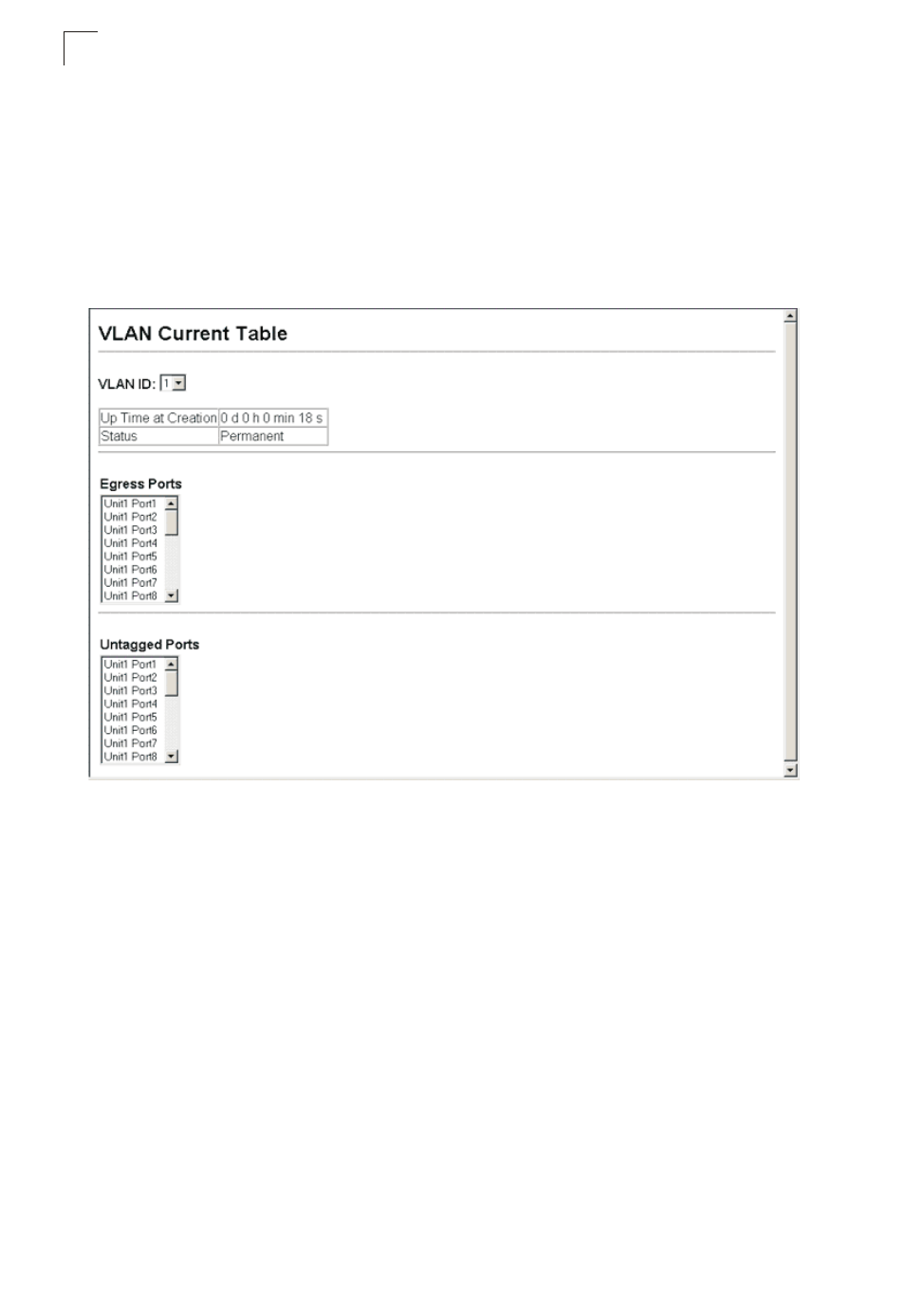

Figure 3-96 Displaying Current VLANs

Command Attributes (CLI)
VLAN – ID of configured VLAN (1-4092, no leading zeroes).
Type – Shows how this VLAN was added to the switch.

- Dynamic: Automatically learned via GVRP.
- Static: Added as a static entry.

Name – Name of the VLAN (1 to 32 characters).
Status – Shows if this VLAN is enabled or disabled.

- Active: VLAN is operational.
- Suspend: VLAN is suspended; i.e., does not pass packets.

Ports / Channel groups – Shows the VLAN interface members.
