Configuring the Switch

3-228

3

MVR Status – Shows the MVR status. MVR status for source ports is “ACTIVE” if

MVR is globally enabled on the switch. MVR status for receiver ports is “ACTIVE”
only if there are subscribers receiving multicast traffic from one of the MVR groups,
or a multicast group has been statically assigned to an interface.

Immediate Leave – Shows if immediate leave is enabled or disabled.
Trunk Member

15

– Shows if port is a trunk member.

Web – Click MVR, Port or Trunk Information.

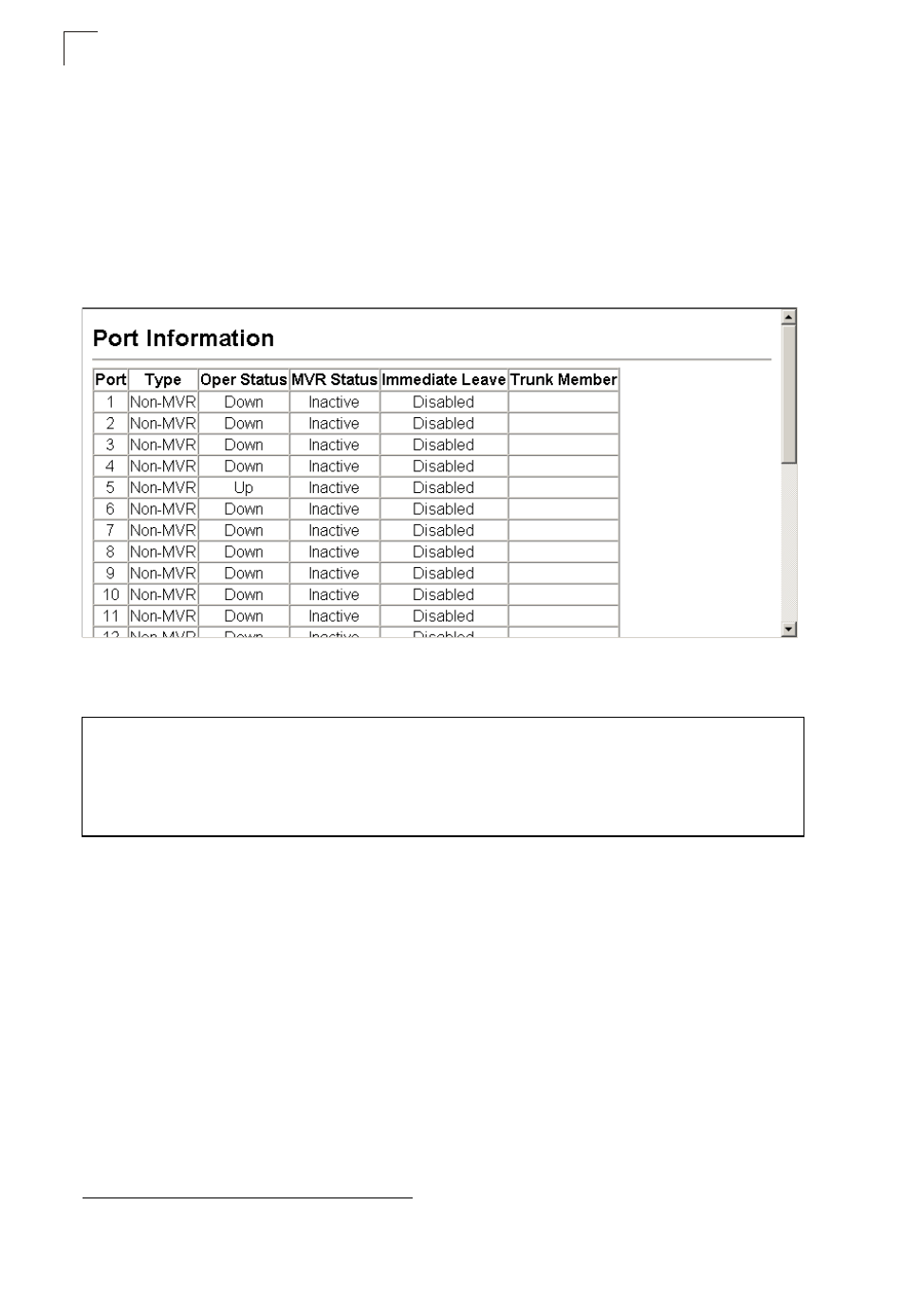

Figure 3-140 MVR Port Information

CLI – This example shows information about interfaces attached to the MVR VLAN.

Displaying Port Members of Multicast Groups

You can display the multicast groups assigned to the MVR VLAN either through
IGMP snooping or static configuration.

Field Attributes
Group IP – Multicast groups assigned to the MVR VLAN.
Group Port List – Shows the interfaces with subscribers for multicast services

provided through the MVR VLAN.

15. Port Information only.

Console#show mvr interface

4-307

Port Type Status Immediate Leave
------- -------- ------------- ---------------
eth1/1 SOURCE ACTIVE/UP Disable
eth1/2 RECEIVER ACTIVE/UP Disable
Console#
