Multicast VLAN Registration
3-227
3
• MVR Running Status – Indicates whether or not all necessary conditions in the
MVR environment are satisfied.
• MVR VLAN – Identifier of the VLAN that serves as the channel for streaming
multicast services using MVR. (Range: 1-4093; Default: 1)
• MVR Group IP – IP address for an MVR multicast group. The IP address range of
224.0.0.0 to 239.255.255.255 is used for multicast streams. MVR group addresses
cannot fall within the reserved IP multicast address range of 224.0.0.x. (Range:
224.0.1.0 - 239.255.255.255; Default: no groups are assigned to the MVR VLAN)
• Count – The number of contiguous MVR group addresses. (Range: 1-255;
Default: 0)
Web – Click MVR, Configuration. Enable MVR globally on the switch, select the
MVR VLAN, add the multicast groups that will stream traffic to attached hosts, and
then click Apply.

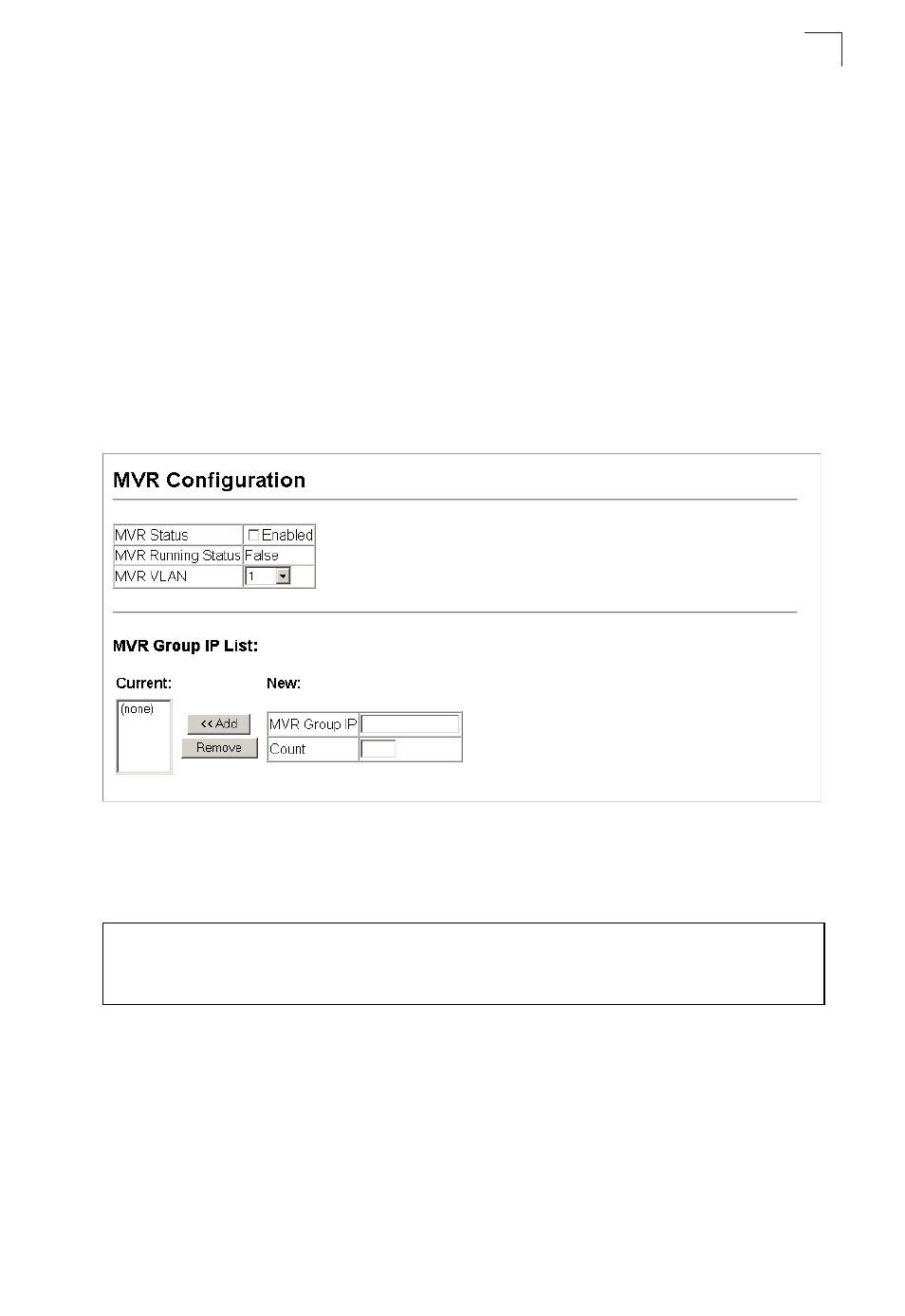

Figure 3-139 MVR Global Configuration
CLI – This example first enables IGMP snooping, enables MVR globally, and then
configures a range of MVR group addresses.
Displaying MVR Interface Status
You can display information about the interfaces attached to the MVR VLAN.
Field Attributes
• Type – Shows the MVR port type.
• Oper Status – Shows the link status.
Console(config)#ip igmp snooping 4-288
Console(config)#mvr 4-304
Console(config)#mvr group 228.1.23.1 10 4-304
Console(config)#
