Class of Service Configuration

3-197

3

a Class of Service value by the switch, and the traffic then sent to the corresponding
output queue.

Because different priority information may be contained in the traffic, this switch
maps priority values to the output queues in the following manner:
• The precedence for priority mapping is IP DSCP Priority, and then Default Port

Priority.

Enabling IP DSCP Priority

The switch allows you to enable or disable the IP DSCP priority.

Command Attributes
• IP DSCP Priority Status
– The following options are:

- Disabled – Disables the priority service. (Default Setting: Disabled)
- IP DSCP – Maps layer 3/4 priorities using Differentiated Services Code Point

Mapping.

Web – Click Priority, IP DSCP Priority Status. Select IP DSCP from the drop down
menu, then click Apply.

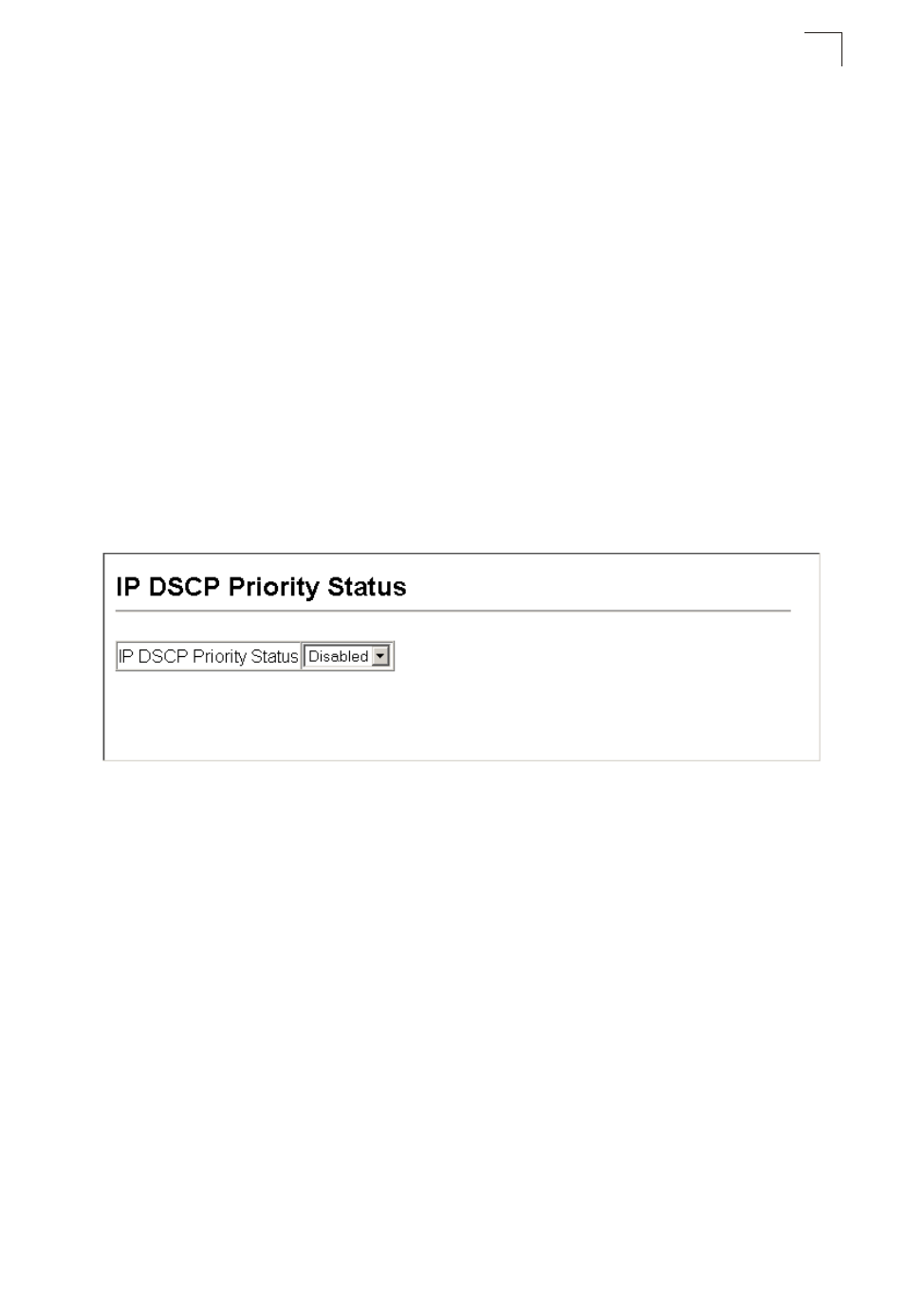

Figure 3-122 IP DSCP Priority Status
