Page 61

ETUP

IELD

PERATIONS

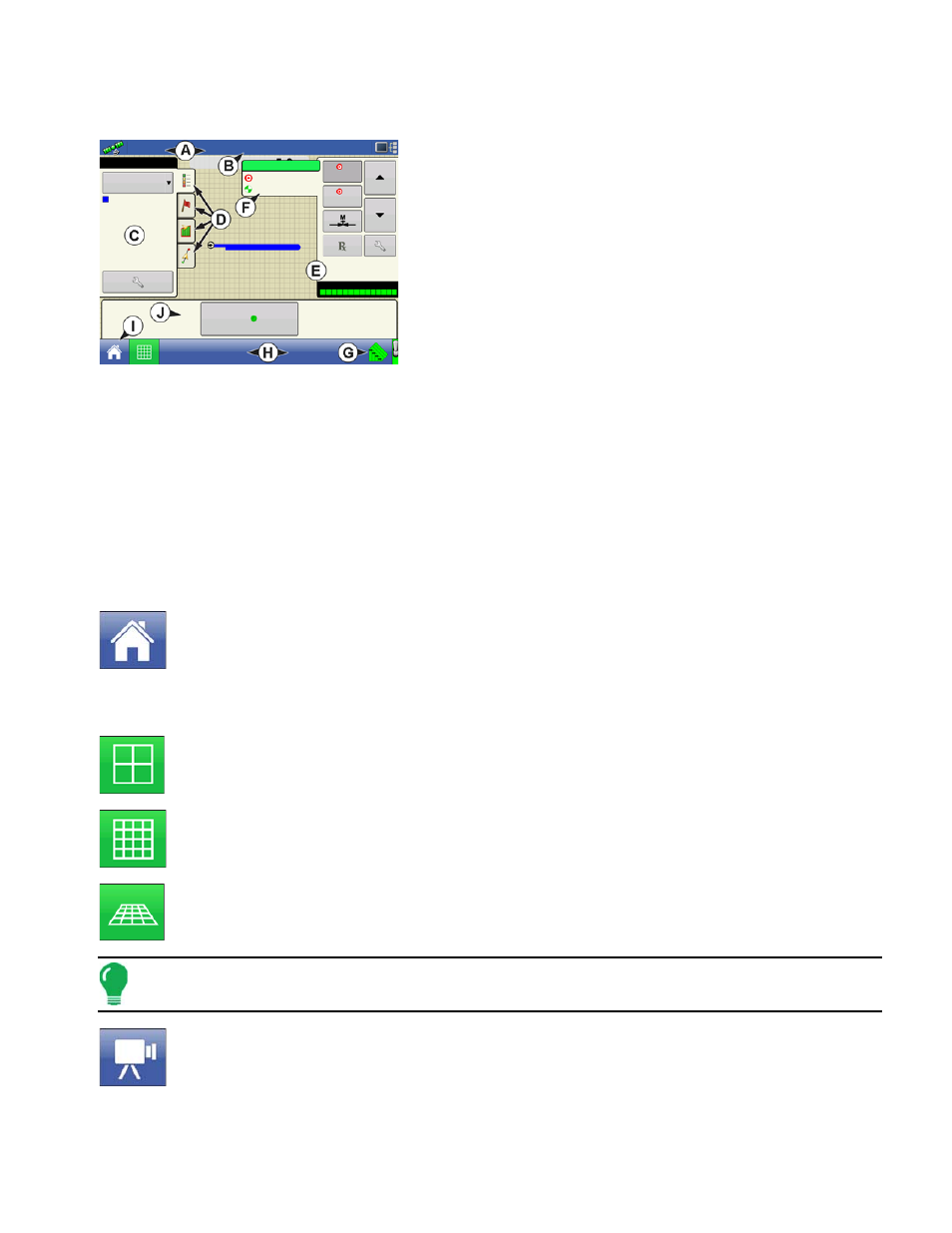

SCREENS

• (A) Status Bar

• (B) On-screen Light bar

• (C) Mapping toolbox

• (D) Mapping Function tabs

• (E) Product Control toolbox

• (F) Product tabs

• (G) Function buttons

• (H) Task bar

• (I) Main Screen buttons

• (J) Equipment tab

The appearance of the Map screen varies, depending upon which operation you are performing, and
your specific operating configuration.

The task bar displays buttons relating to various functions of the display. These buttons and status
indicators include Home, Mapping, Autoswath, Logging, and Auxiliary Input Status. These buttons are
shown in front of a green background when you are at that screen; otherwise they are shown in front of
a blue background.

Home button - Pressing the Home button takes you to the Home screen.

Map button - Pressing the Map button takes you to the Map screen. Pressing it more than once cycles
the Map screen to zoom in and out.

ZOOM DETAILS

ZOOM TO EXTENT

PERSPECTIVE VIEW

Note: The Perspective View is only available when guidance is active.

Video button. Pressing this button takes you to the video screen. Pressing this button
repeatedly cycles through the video inputs.

40 ft 0 in

sds/ac

Corn

Varieties

C1420

Planter Drives (rpm)

Flow 12864 sds/min

100%

1.97

C1420

32000

30000
