184 Firmware Version 5.4
• PWM Standby
This is a user-defined setting that determines the percent duty cycle the system uses when the booms are
all off. The setting must be greater than the Zero Flow Offset.
Note: The current PWM Duty Cycle can be viewed at the Liquid Diagnostics screen. For more information,
see
“Liquid Application Diagnostics” on page 193

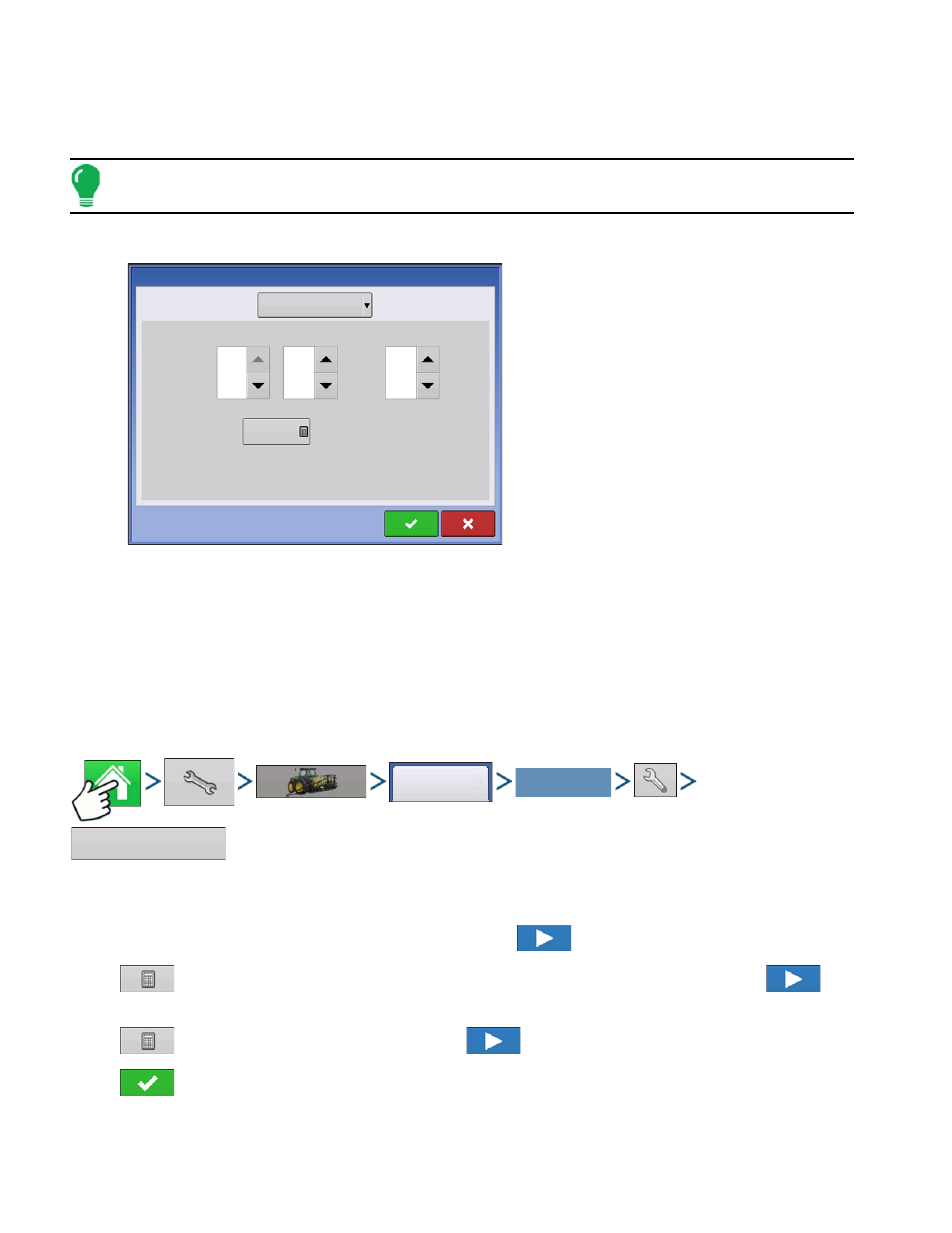

Control Valve Settings - Servo, Calibrated Reflow and Ramsey Valve
• Valve Response 1
Determines the speed of the servo valve when
product control error exceeds the Response
Threshold setting. The default for this setting is
100%. Decreasing the value will cause the servo
valve to run slower. Valve Response 1
represents the fast speed of the servo valve.
• Valve Response 2
Determines the speed of the servo valve when
product control error is less than the Response
Threshold setting. The default for this setting is
24%. Decreasing the value will cause the servo
valve to run slower. Valve Response 2
represents the slow speed of the servo valve.
• Response Threshold
Determines where the control channel switches between using Valve Response 1 and Valve Response 2
speed settings. The default setting is 3. Leaving all other valve control settings at the default value and
making a small adjustment to this setting is usually all that is required to fine-tune system performance.
- Decreasing this value will have the overall effect of speeding up servo valve response.
- Increasing this value will have the overall effect of slowing servo valve response.
Calibrate Pressure
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > select
your specific configuration > Setup (wrench) button > Calibrate Pressure button
Choose Main, Agitation or Aux from drop-down box. Press to continue.
Press to enter pressure value as a set point or press Reset to Default button. Press to
continue.
Press to enter voltage/pressure ratio. Press to continue.
Press to finish process.
3 gal/min
Control Valve Settings
Control Valve: Inline Servo
Valve
Response 1
Valve
Response 2
Response Threshold
100 24
Allowable
Error
2 %
Configuration
Select Your Specific
Configuration
Calibrate Pressure
