183
A
PPLICATION
L
IQU
ID
R
ATE
C
ONTROL
• Control Valve Settings
Opens the Control Valve Settings screen, which displays control valve settings for PWM, Servo, Calibrated
Reflow and Ramsey Valve Controls. For more information, see below or for more settings see
“Control Valve
Settings - Servo, Calibrated Reflow and Ramsey Valve” on page 184 .
• Close Flow Control Valve When Rate Off
When this is selected, the controlling system shuts down when there is either a zero rate in the field or when
entering an already-applied area. When unchecked, the controlling system remains in the last known state
when the sections are shut off.
• Auxiliary Valve 1 & 2
When all boom sections are off, this setting closes or opens an auxiliary valve. Choose settings for up to
two auxiliary valves.
• Allowable Error
Determines the percent of error that is allowed prior to the product control system making any flow rate
changes.
• Threshhold
The user-defined percentage of actual rate error allowed before an alarm sounds.
• Timeout
The number of seconds that an actual rate falls out of the error threshold before an alarm sounds.
Control Valve Settings - PWM
• PWM Frequency
The frequency that the PWM control valve is
pulsed at. Settings can be found from the
manufacturer of the valve. Typical settings
range from 100-125 Hz.
Note: See PWM valve manufacturer information for recommended settings.
• PWM Gain
Determines how aggressively the control valve responds when making rate change adjustments. The
higher the value the more aggressive the system response is.
• Zero Flow Offset
Represents the maximum duty cycle that is sent to the control valve without producing any hydraulic flow
from the PWM valve. Using too high of a Zero Flow Offset value can cause the product control system to
not properly control low rates. See the PWM valve manufacturer information for recommended settings.

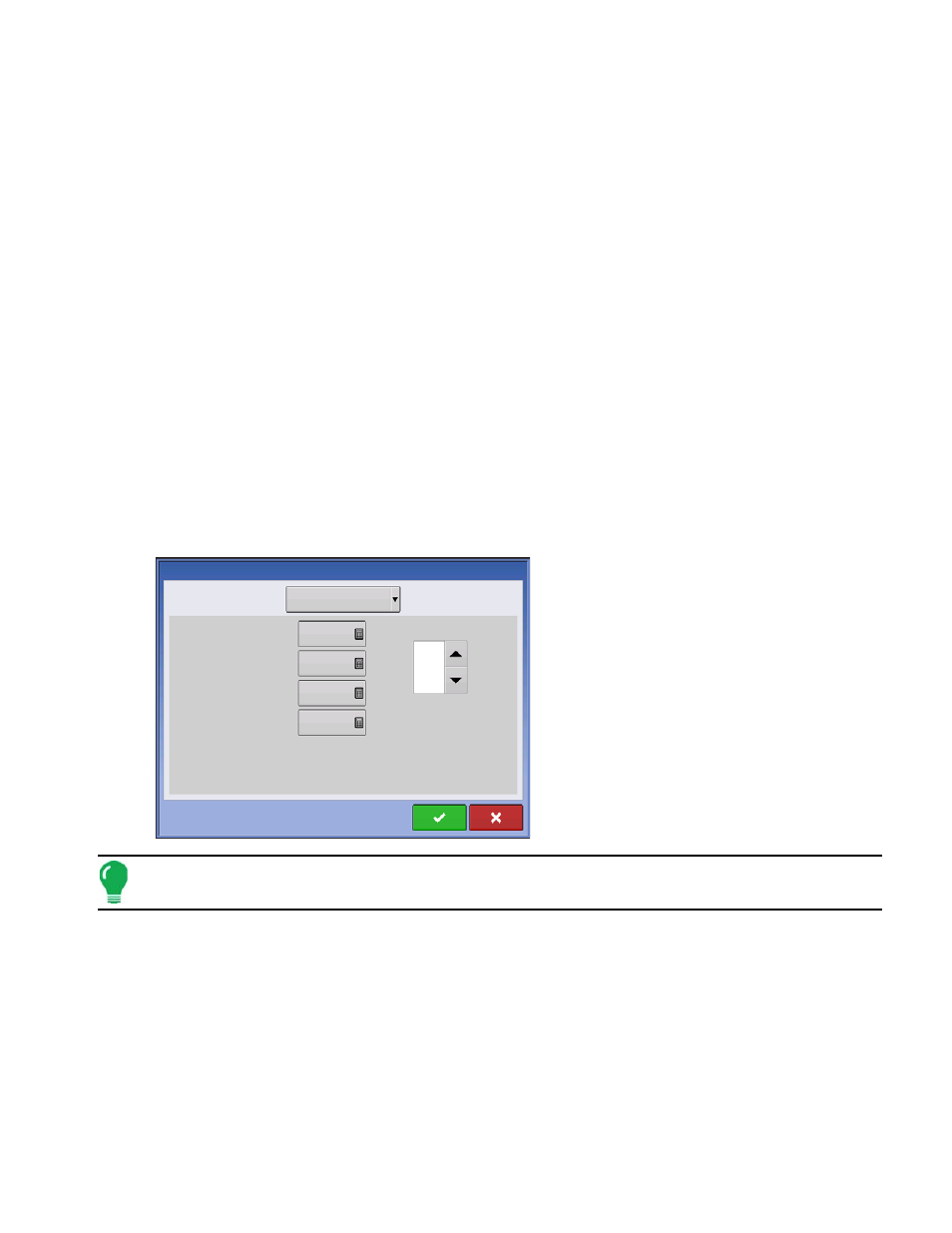

Control Valve Settings
PWM 12 volt Control Valve:
PWM Frequency
PWM Gain
Zero Flow Offset
PWM Standby 50
30
800
100
Allowable
Error
2 %
