The Pattern Cycle Button allows the user to easily cycle between patterns with a
single button press. Patterns will cycle in the order they were created or added,
starting back at the beginning of the list, once the last patterns is reached.

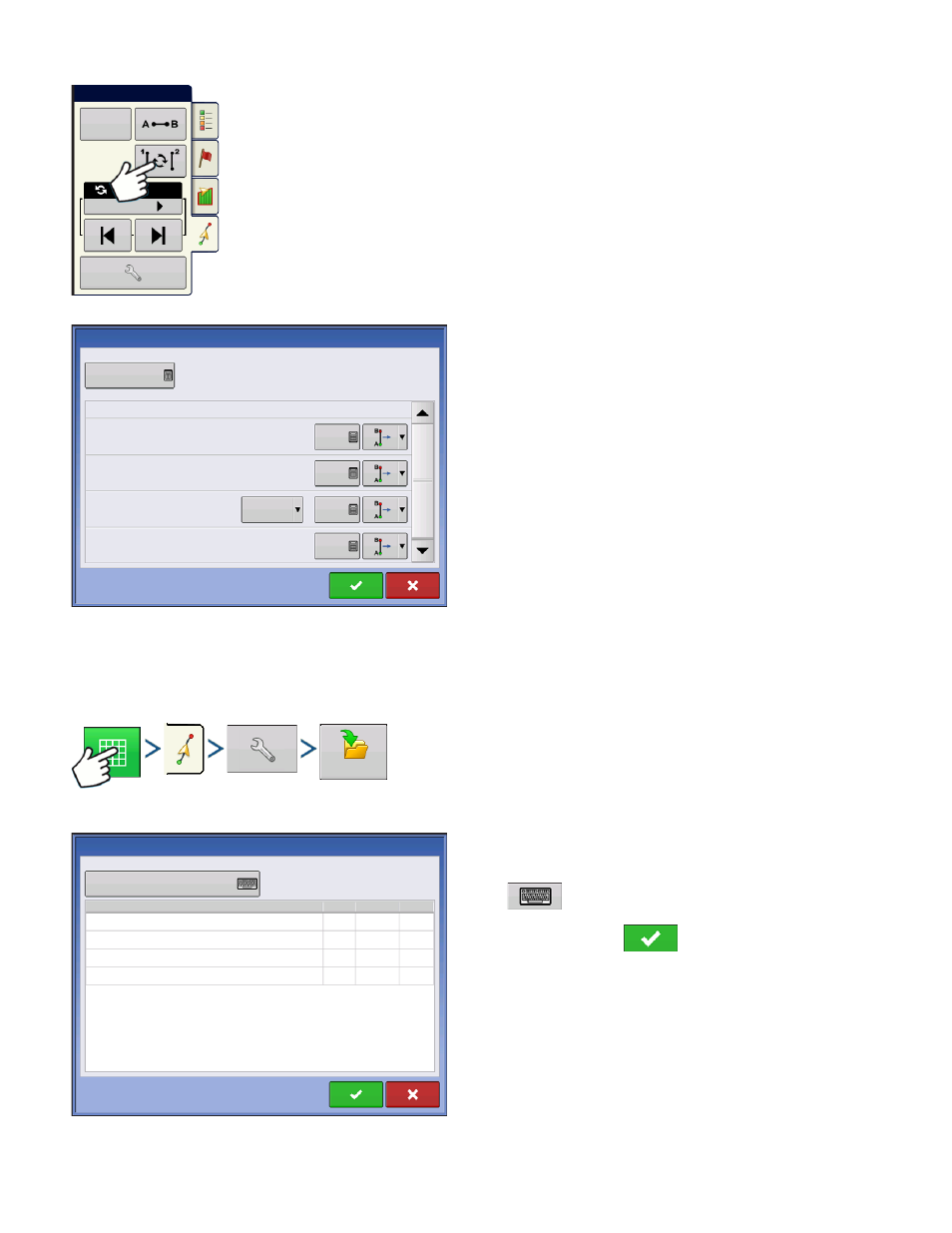

When loading a Pattern Group, the Group Pattern
Setting dialog appears and allows the user to select
the Guidance Width and any Shift that needs to be
applied to each Pattern within the Pattern Group.
User will also have the option to load Curve Patterns
as Adaptive or Identical.
Straight AB, Identical Curve, Adaptive Curve and
Pivot Patterns can be grouped. SmartPath cannot
be grouped.
G
UIDANCE
O
PTIONS
S
AVE
Press: Map button > Guidance tab (in Mapping Toolbox) > Setup (wrench) button > Save button
This allows you can save a pattern (.AGSETUP file)
to the display's internal memory to the current field.
Press and enter a unique pattern name.
When finished, press .
