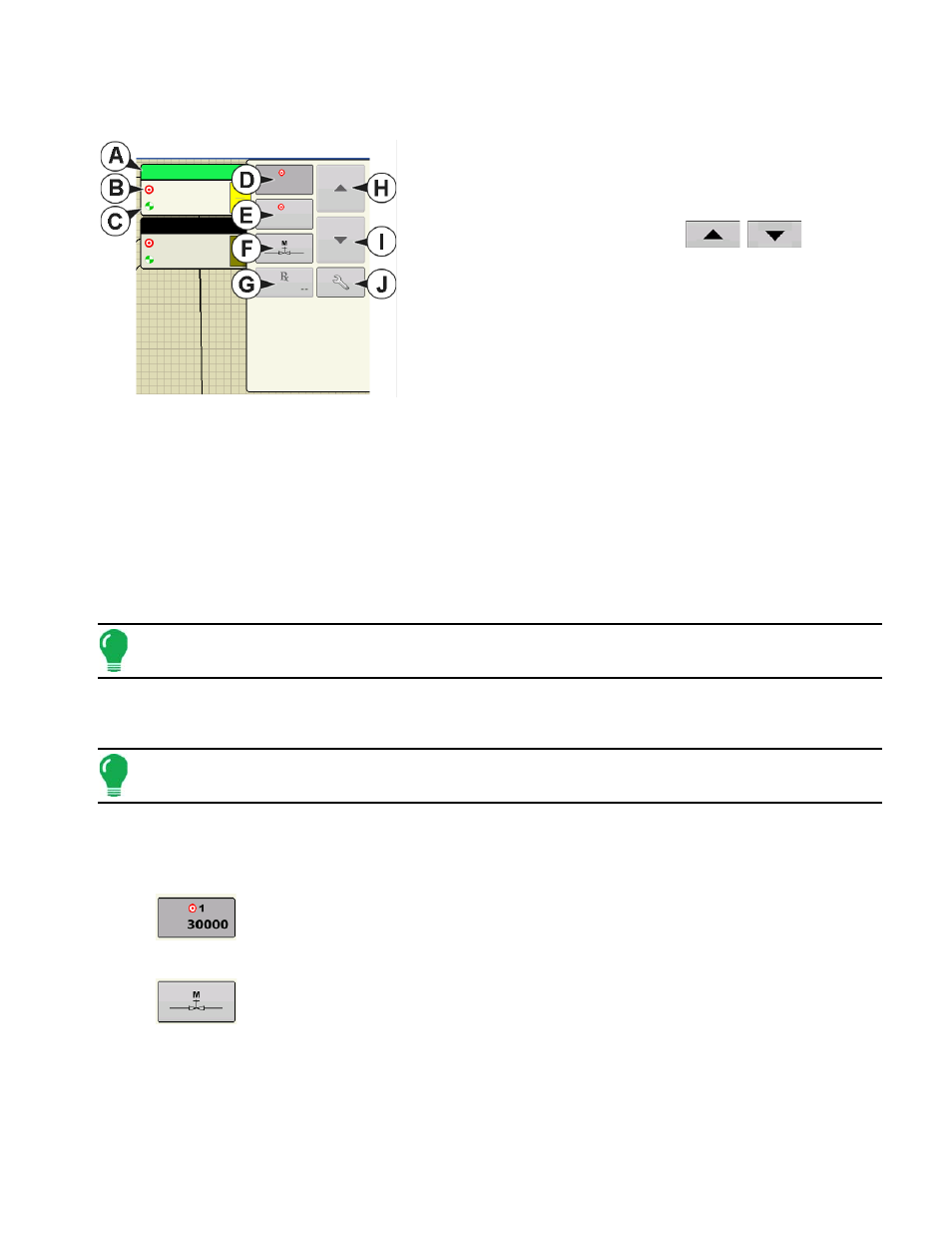

During DirectCommand Run Time operations, the Product
Tabs are shown in the upper right-hand side of the Map screen.
Press the Product Tabs, and an extended view shows the Rate
buttons, Manual Valve Control button, Prescription button, Rate
Increase and Rate Decrease arrows / , and the
Rate Setup button, all of which are described below.
• (A) Product
• (B) Target Rate
• (C) Actual Rate
• (D) Rate 1 button
• (E) Rate 2 button
• (F) Manual Valve Control
• (G) Prescription button
• (H) Rate Increase arrow
• (I) Rate Decrease arrow
• (J) Rate Setup button
• Target Rate
The Target Rate is desired application rate.
Note: In some conditions, the Target Rate may increment more quickly than the Actual Rate.
• Actual Rate
The Flow Sensor returns the actual rate being applied.
Note: In some conditions, the Actual Rate may increment slower than the Target Rate, or its numeric values
may vary before matching the Target Rate.
• Container Level
The Container Level shows the amount of product in the container. For more information, see
“Rate Control:
Container Level” on page 189 .
• Rate 1 and Rate 2 buttons
The Rate 1 and Rate 2 settings represent preset application rates that allow operators to
quickly change between desired target rates for each individual product.
• Manual Valve Control button
The Manual Valve Control button allows operators to specify the position of the control
valve. Operators use this option to prime the system before application or clean out the
equipment at the end of the day.
160 ft 3
0.29 ac
43.1 lb
99.6 lb/min Flow:
Applied:
Area:
Container:
NH3
150.00
150.00
75.00
75.00
ExTran
150
135
1
2
