Installing Hardware Options - Server Power Off 4-19
Compaq Confidential – Need to Know Required
Writer: Bryce Miller Project: Compaq ProLiant DL760 Servers User Guide Comments:
Part Number: 173774-001 File Name: e-ch4 Installing Hardware Options - Server Power Off.doc Last Saved On: 1/25/01 9:33 AM
PCI-X and PCI Bus Distribution Guidelines
The I/O board in the ProLiant DL760 server has 11 PCI Hot Plug I/O
expansion slots. The ProLiant DL760 server is shipped with a Network
Interface Card (NIC) in a slot on Bus 1.
Figure 4-15 and Table 4-4 identify the PCI/PCI-X expansion slots associated
with each of the three buses. Bus balancing is not required.
1 2 3 4 5 6 7 8 9 10 11

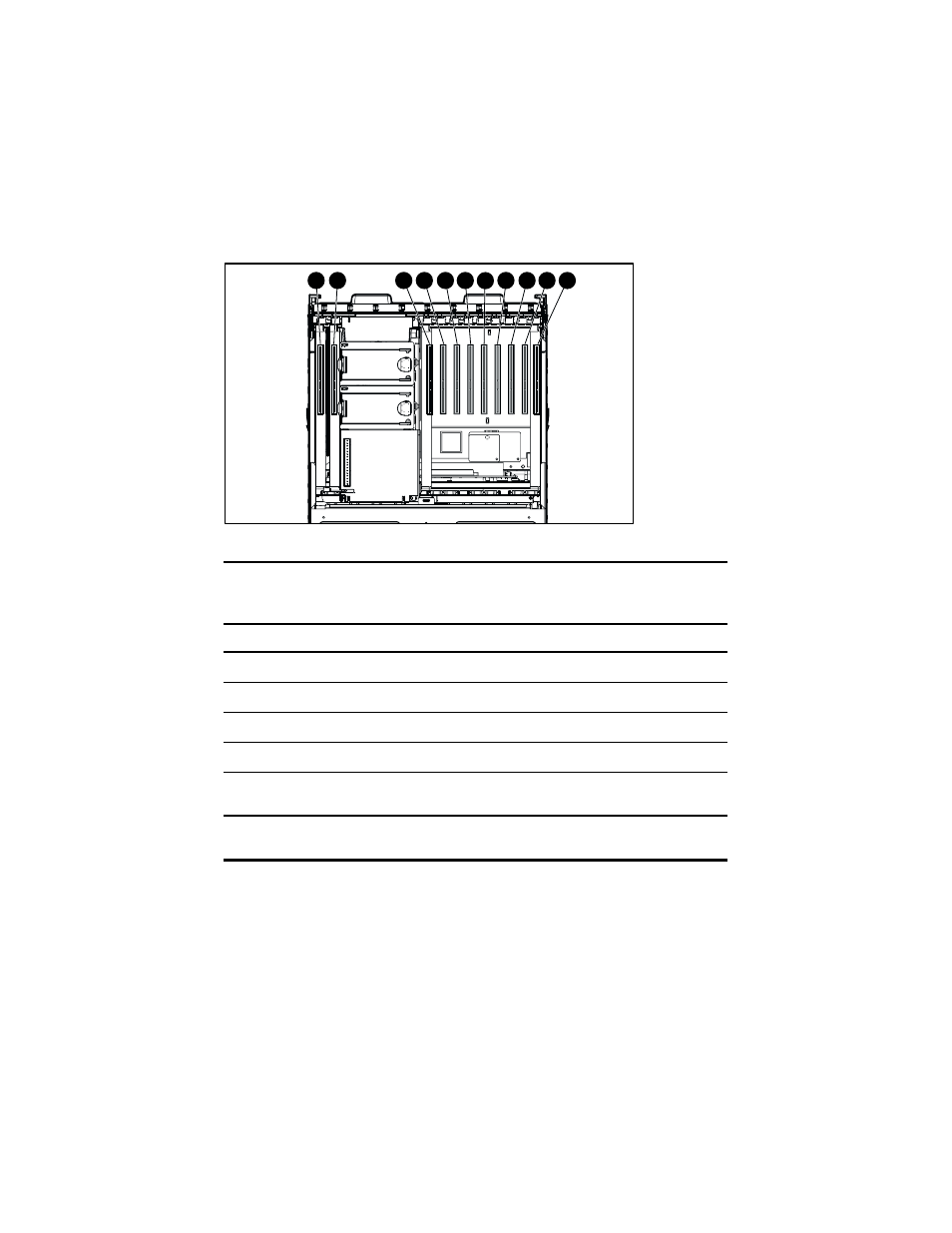

Figure 4-15. PCI/PCI-X bus slot numbers
Table 4-4
Bus Distribution of PCI Hot Plug Slots
Bus Number PCI Hot Plug Slot No. Associated PCI Bus and Bus Speed
1
Slots
through PCI Bus 1 (64 Bit), 33 MHz
2 Slots through PCI-X Bus 2 (64 Bit), 50 MHz
Slots through PCI Bus 2 (64-Bit), 33 MHz
3 Slots and PCI-X Bus 3 (64 Bit), 100 MHz
Slots and PCI Bus 3 (64-Bit), 33 MHz,
66 MHz
Note 1: All PCI-X Buses support PCI expansion boards at 33 MHz
Note 2: The Bus speed will only run as fast as the slowest board installed
