C H A P T E R 4 Logon Screen
61
Logon Screen
To access the various GUI services available to you on the SA8220,
you must first log on to the system as described in this section.
Logging on to
the GUI 1. Launch your browser.
2. In your browser’s Address or Location field, type the SA8220’s
address and specify port 1095. For example:
NOTE: If Internet
Explorer* 5.01 (or later)
is your browser, you must
add a trailing slash (/) to
the URL, as shown in step
(2). Also, the default GUI
port (1095) can be
changed. For details,
please see “GUI Tab” in
this chapter. http://system_name:1095/
where system_name is the actual name or IP address of your
SA8220.
3. Press Enter.

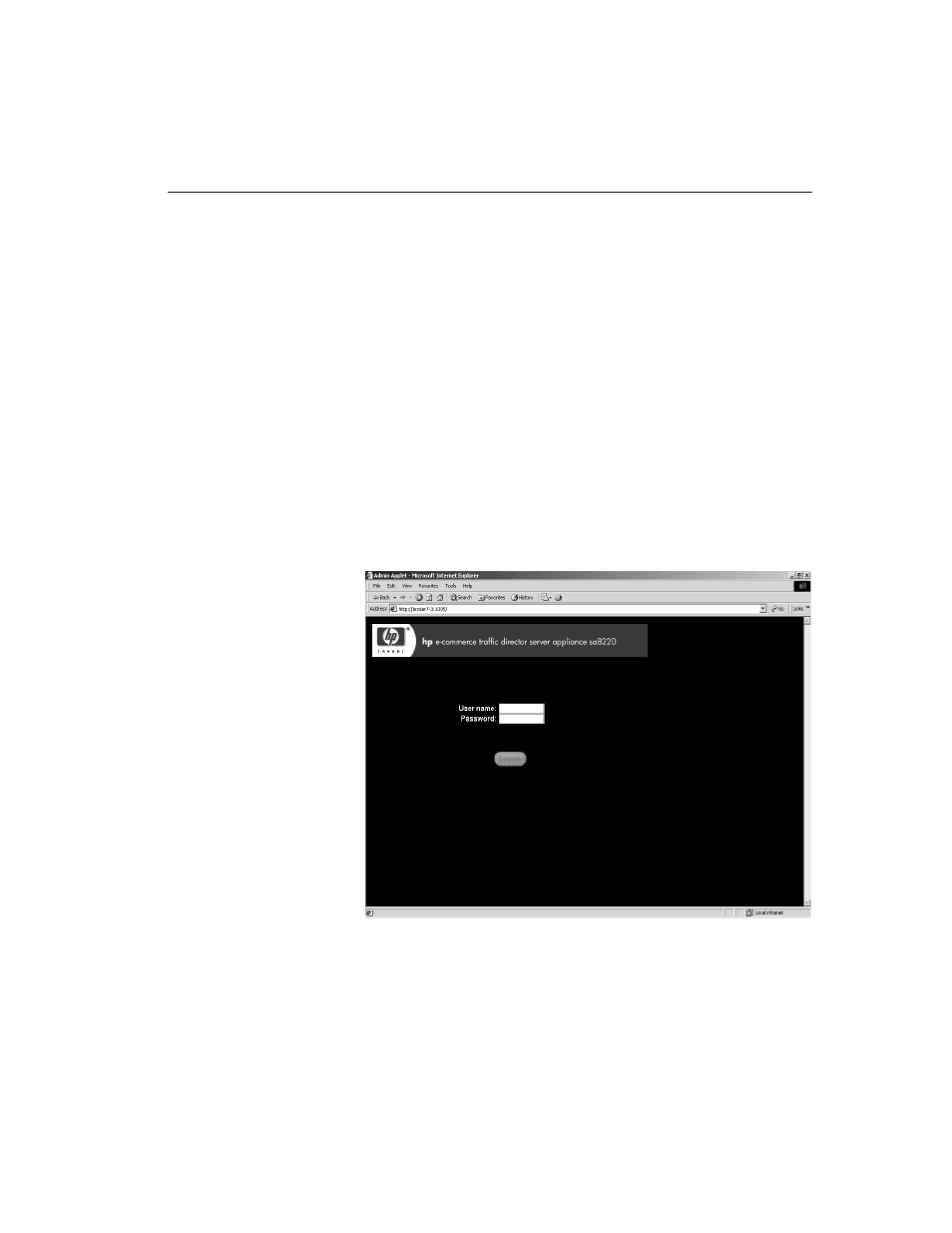

The Logon screen displays, as shown below.
Logon Screen
