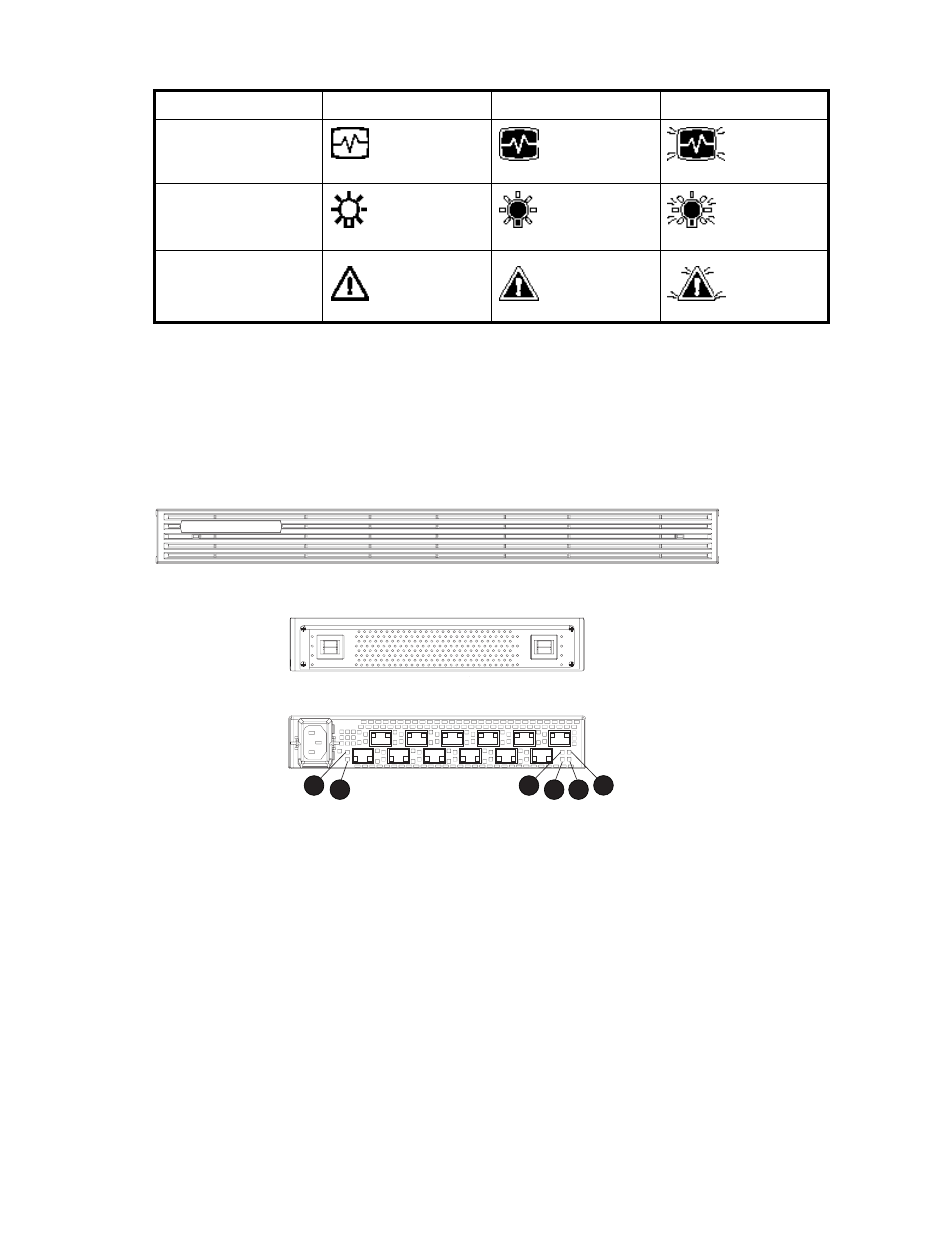

Table 22 Enclosure status icon displays
Icon Off On Flashing
EMU “Heartbeat” Icon
(green LED)
Power Icon (green LED)
Enclosure Status Icon
(orange LED)
Fibre Channel loop switches
The EVA 5000 uses four FC loop switches ( Figure 42 ) to connect all of the drive enclosures to the
controller pair using FC cables. Each switch acts as a central point of interconnection and establishes a
fault-tolerant physical loop topology.
Rear
Front
Bezel
CXO7884A
3
4 6
5 1
2
Figure 42 FC loop switch
1. SFP Status LED
2. Port Bypassed LED
3. POST Fault LED
4. Over Temp LED
5. Power LED
6. Loop Operational LED
Power-on self test
When you power On the Fibre Channel switch, it performs a Power-On Self Test (POST). A POST verifies
that the switch is functioning properly. During a POST, all of the LEDs turn On for approximately two
seconds. Then, all of the LEDs, except the Power LED, turn Off.
