CXO8238A
1
3
2
4
5
6
7
8
2

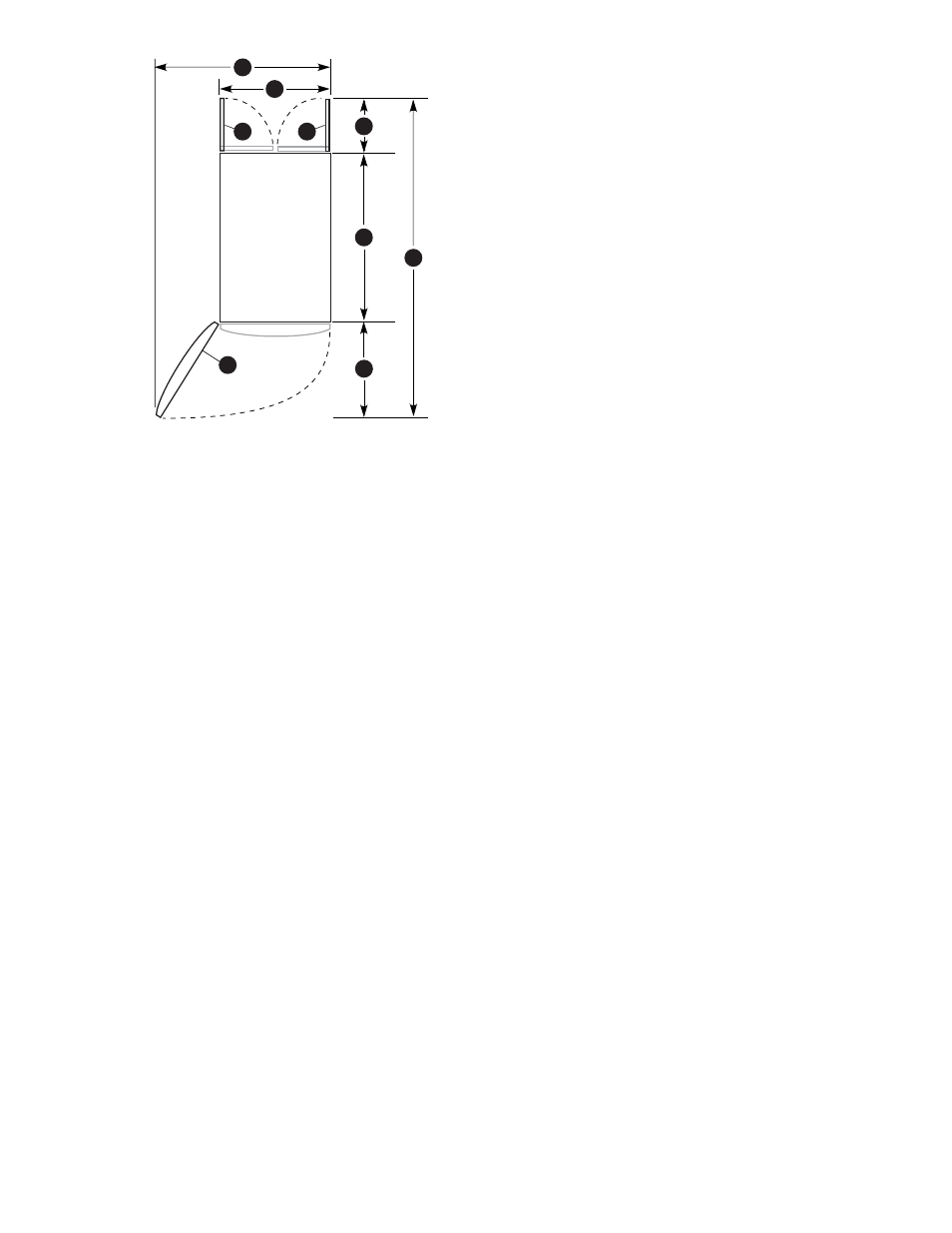

Figure 56 10000-Series single rack configuration floor space requirements
1.
Front door
2. Rear door
3. Rack width 600 mm
4. Service area width 813 mm
5. Rear service area depth 300 mm
6. Rack depth 1000 mm
7. Front service area depth 406 mm
8. Total rack depth 1706 mm
If the feet are not fully raised, complete the following procedure:
1. Raise one foot by turning the leveler foot hex nut counterclockwise until the weight of the rack is
fully on the caster (see Figure 57 ).
2. Repeat Step 1 for the other feet.
Enterprise Virtual Array 3000/5000 user guide (VCS 3.110) 113
