CXO7571A
1 7
2 6 11 12 3 4 5 10 9 8

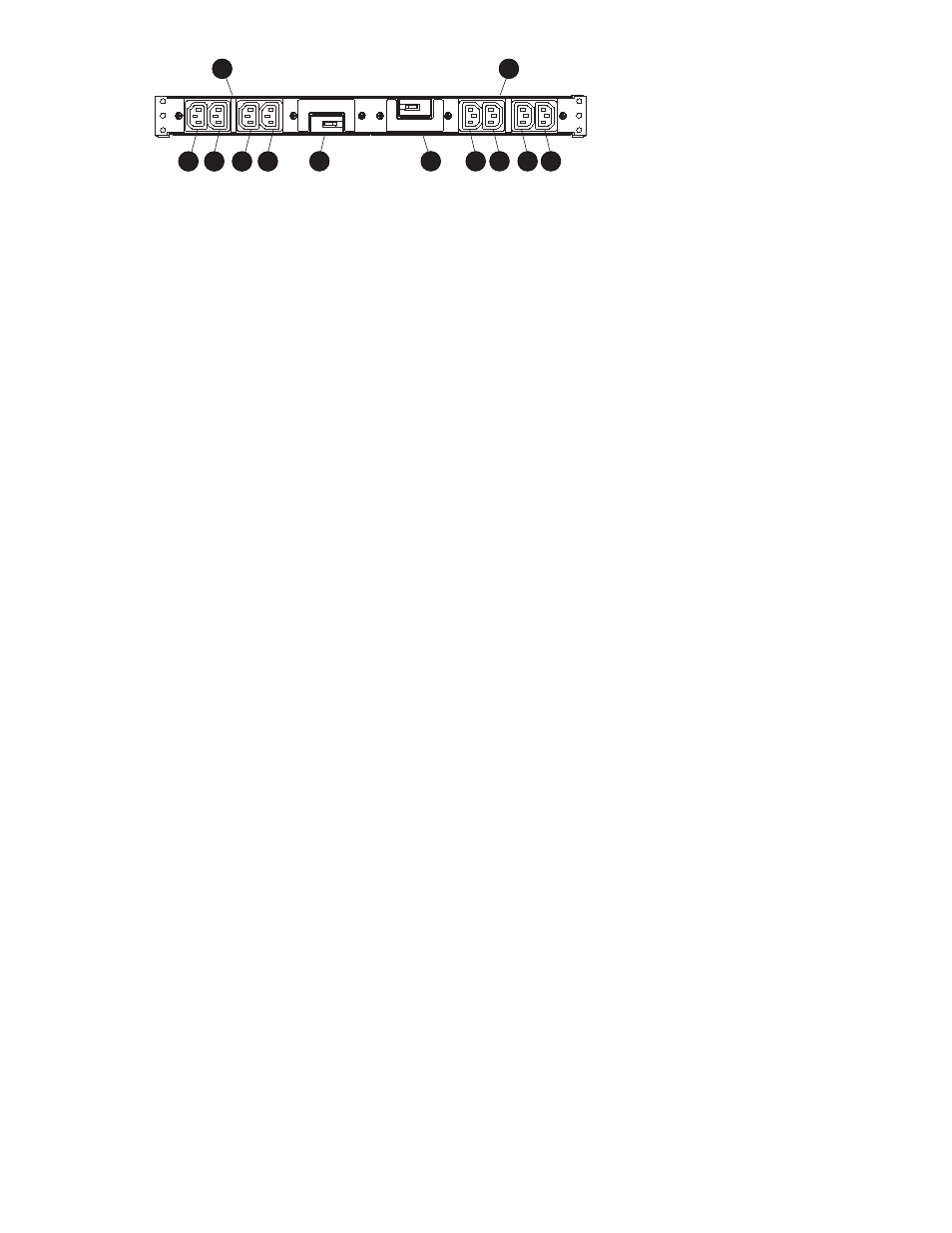

Figure 51 Dual PDU assembly major components
1.
PDU 1
2. PDU 1 receptacle A
3. PDU 1 receptacle B
4. PDU 1 receptacle C
5. PDU 1 receptacle D
6. PDU 1 circuit breaker
7. PDU 2
8. PDU 2 receptacle A
9. PDU 2 receptacle B
10. PDU 2 receptacle C
11. PDU 2 receptacle D
12. PDU 2 circuit breaker
During normal operation, the hinged PDU assembly is in the upright position and the rear door is closed.
228481–002/228481–003 PDU models
The 228481–002/22481–003 PDU models allow for greater customer flexibility. The customer can:
• Use the power cord in any standard electrical outlet.
• Replace with little inconvenience.
The PDU nearest the rear of the rack is PDU 1, the other is PDU 2. See Figure 52 for the this PDU assembly.
Enterprise Virtual Array 3000/5000 user guide (VCS 3.110) 107
