ELECTRICAL CONNECTIONS
92
IFC 300
www.krohne.com 08/2010 - 4000069803 - MA IFC 300 R04 en
Status output / limit switch S
N
NAMUR, modular I/Os
• Any connection polarity.
• Connection in conformity with EN 60947-5-6
• open:
I
nom
= 0.6 mA
closed:
I
nom
= 3.8 mA
• The output is open when the device is de-energized.
• X designates the connection terminals A, B or D, depending on the version of the signal
converter.

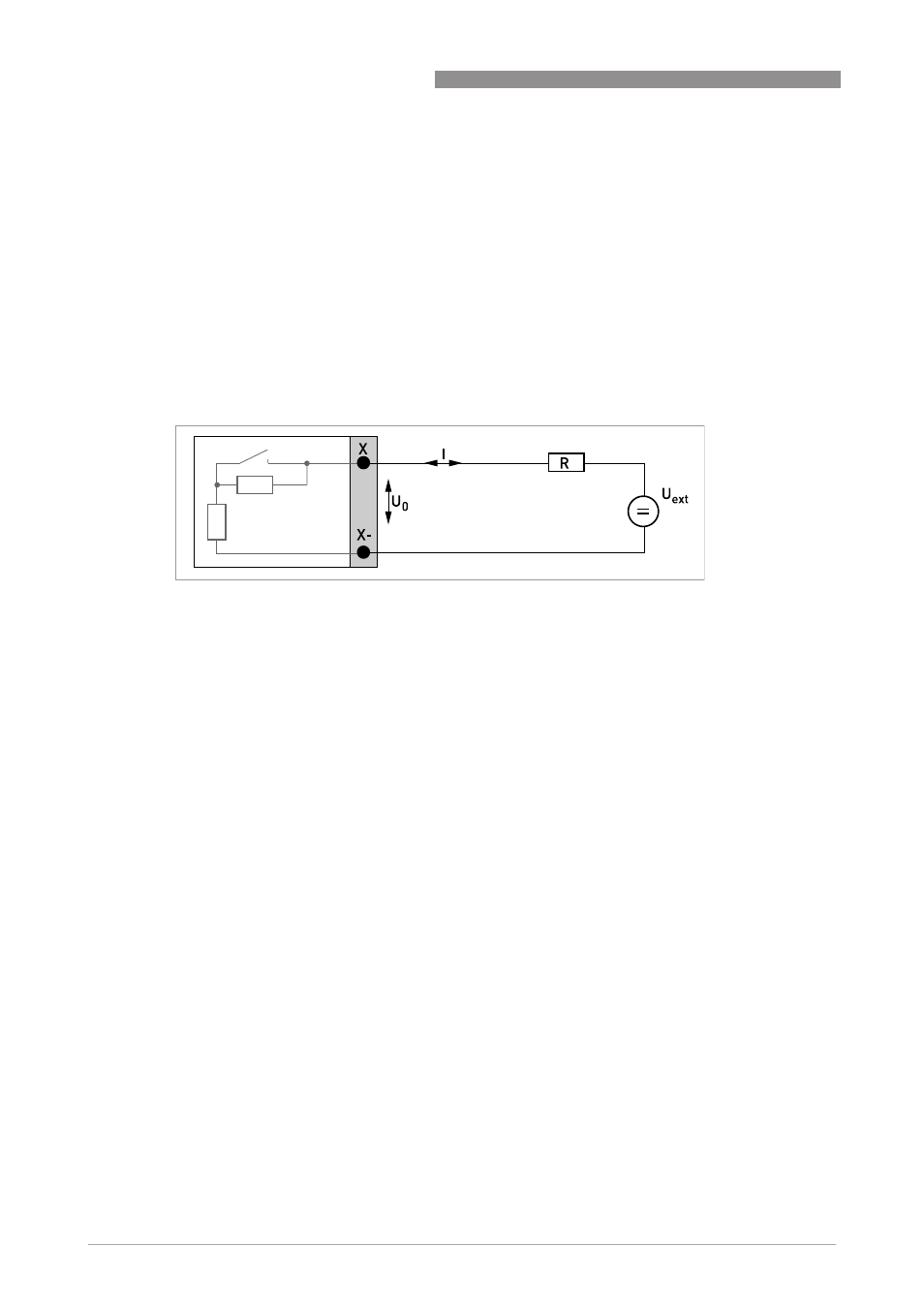

Figure 4-56: Status output / limit switch S
N
to NAMUR EN 60947-5-6
