ELECTRICAL CONNECTIONS
4
53
IFC 300
www.krohne.com 08/2010 - 4000069803 - MA IFC 300 R04 en
4.6.2 Signal cable A (type DS 300), construction
• Signal cable A is a double-shielded cable for signal transmission between the measuring
sensor and signal converter.
• Bending radius: ≥ 50 mm / 2"

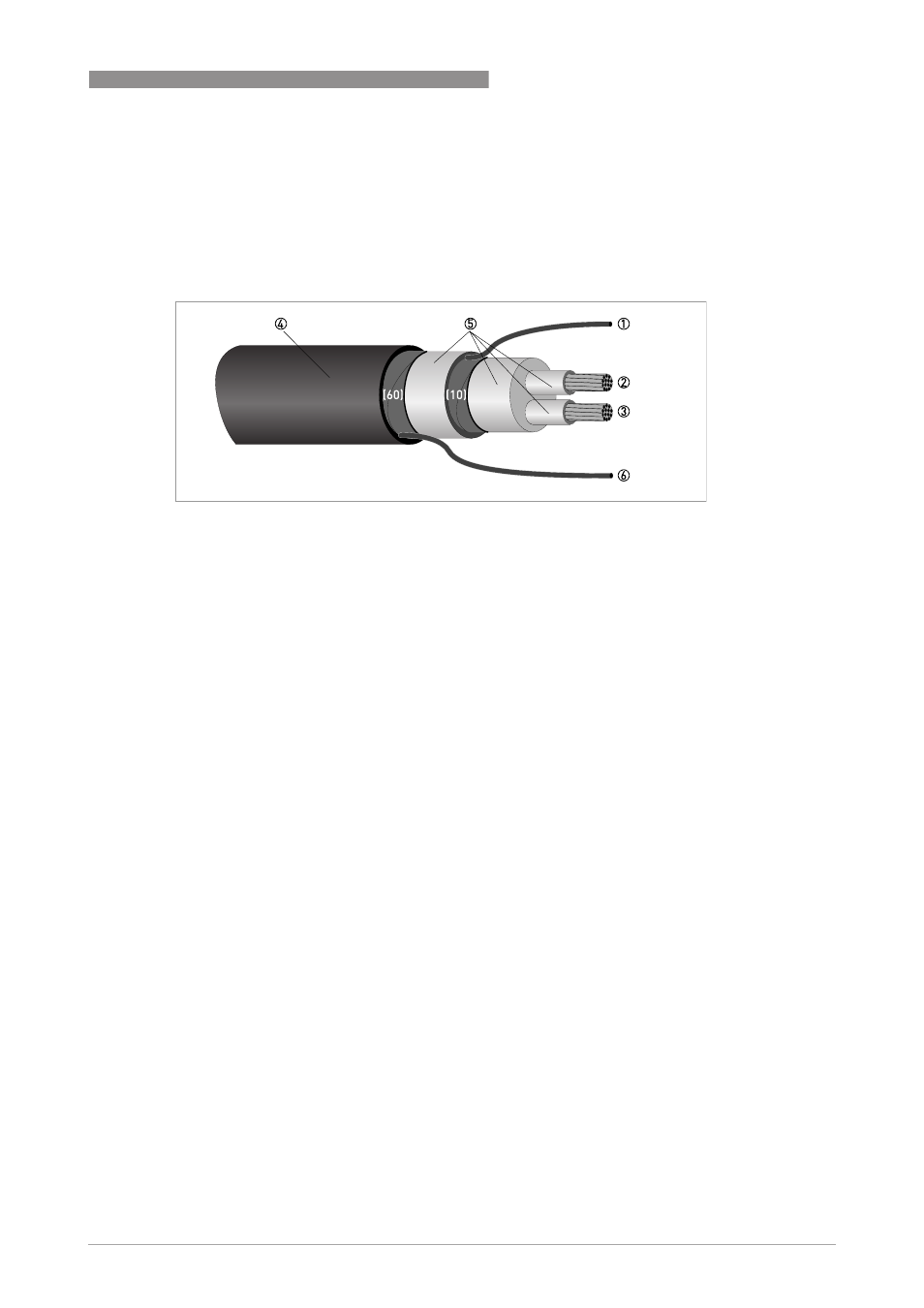

Figure 4-23: Construction of signal cable A
1 Stranded drain wire (1) for the inner shield (10), 1.0 mm
2 Cu / AWG 17 (not insulated, bare)
2 Insulated wire (2), 0.5 mm 2 Cu / AWG 20
3 Insulated wire (3), 0.5 mm
2 Cu / AWG 20
4 Outer sheath
5 Insulation layers
6 Stranded drain wire (6) for the outer shield (60)
