OPERATION
6
105
IFC 300
www.krohne.com 08/2010 - 4000069803 - MA IFC 300 R04 en
6.1.1 Display in measuring mode with 2 or 3 measured values
6.1.2 Display for selection of sub-menu and functions, 3 lines

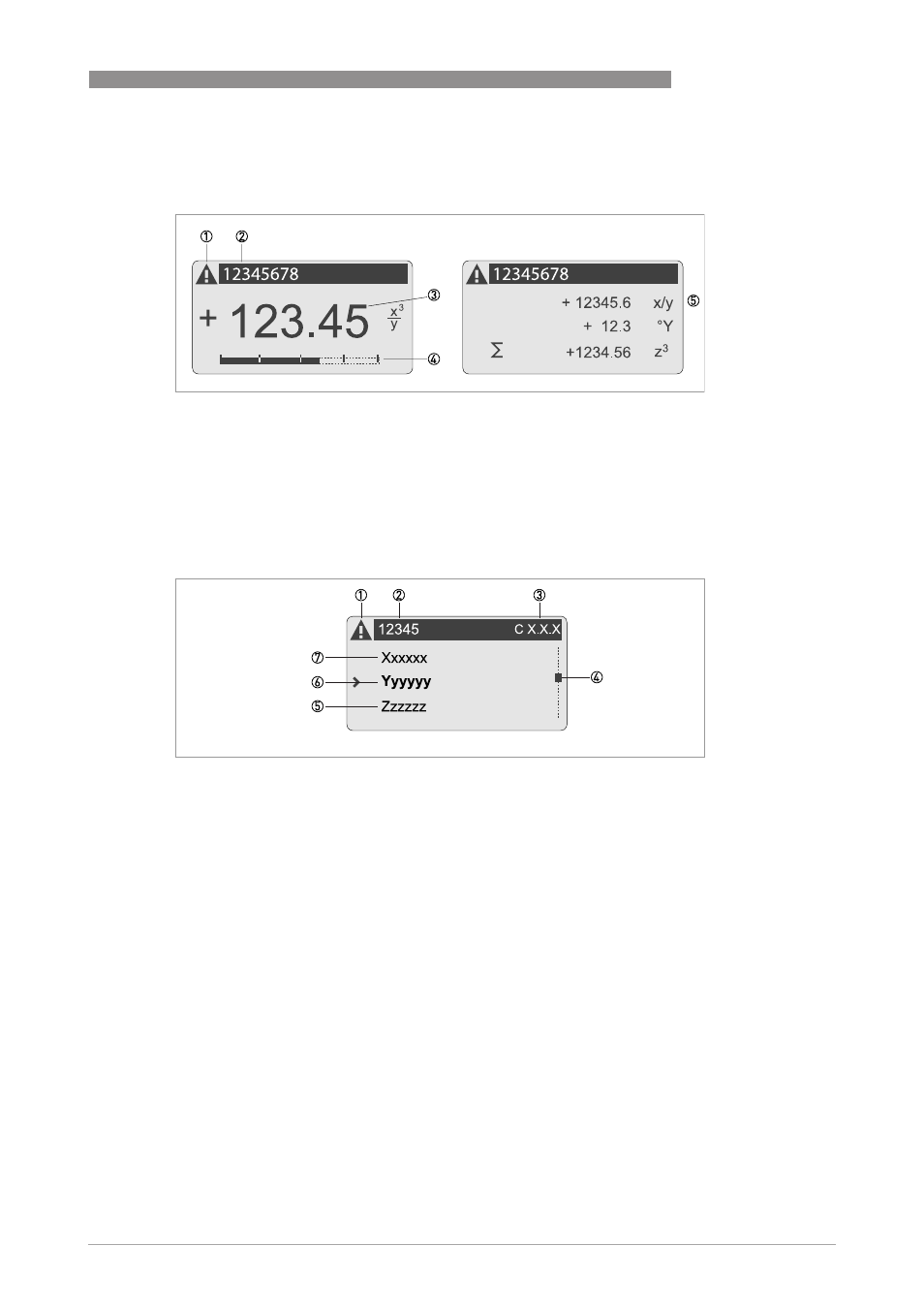

Figure 6-2: Example for display in measuring mode with 2 or 3 measured values
1 Indicates a possible status message in the status list
2 Tag number (is only indicated if this number was entered previously by the operator)
3 1st measured variable in large depiction
4 Bargraph indication
5 Depiction with 3 measured values
Figure 6-3: Display for selection of sub-menu and functions, 3 lines
1 Indicates a possible status message in the status list
2 Menu, sub-menu or function name
3 Number relating to 2
4 Indicates position within menu, sub-menu or function list
5 Next menu, sub-menu or function
(_ _ _ signalise in this line the end of the list)
6 Current menu, sub-menu or function
7 Previous menu, sub-menu or function
(_ _ _ signalise in this line the beginning of the list)
