ELECTRICAL CONNECTIONS
4
61
IFC 300
www.krohne.com 08/2010 - 4000069803 - MA IFC 300 R04 en
At flow converter side:
At flow sensor side:

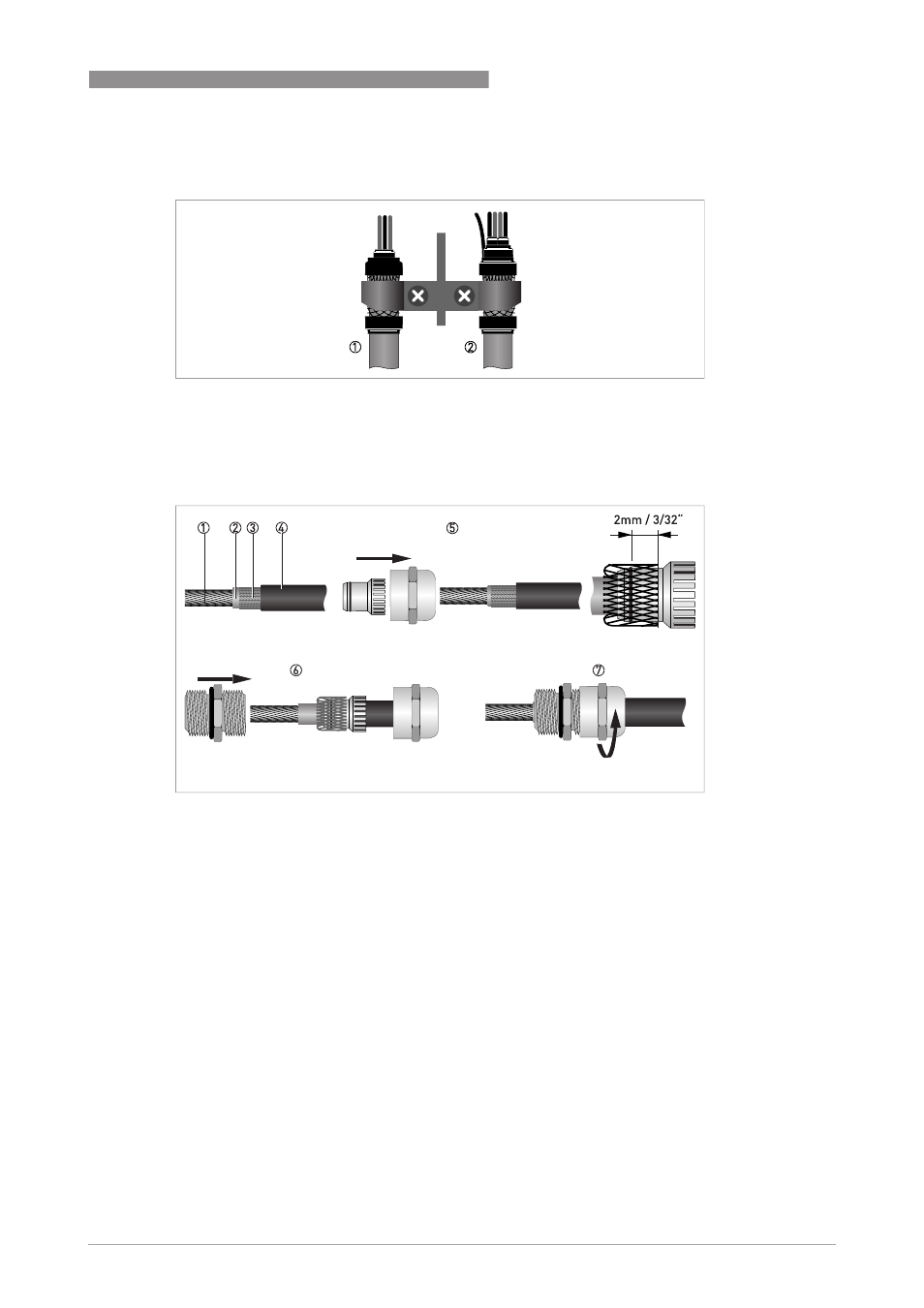

Connecting shielding under clamp in connection box of converter
Figure 4-31: Clamping of shields
1 Field current cable
2 Signal cable
Connecting shielding via special cable gland
Figure 4-32: Connecting the shield within the cable gland
1 Wires
2 Isolation
3 Shielding
4 Isolation
5 Feed cable through dome nut and clamping insert and fold shielding over clamping insert. Make sure that the braided
shield overlaps the O-ring by 2 mm / 3/32".
6 Push clamping insert into body.
7 Tighten the dome nut.
