DEVICE DESCRIPTION
16
IFC 300
www.krohne.com 08/2010 - 4000069803 - MA IFC 300 R04 en
2.2.1 Field housing

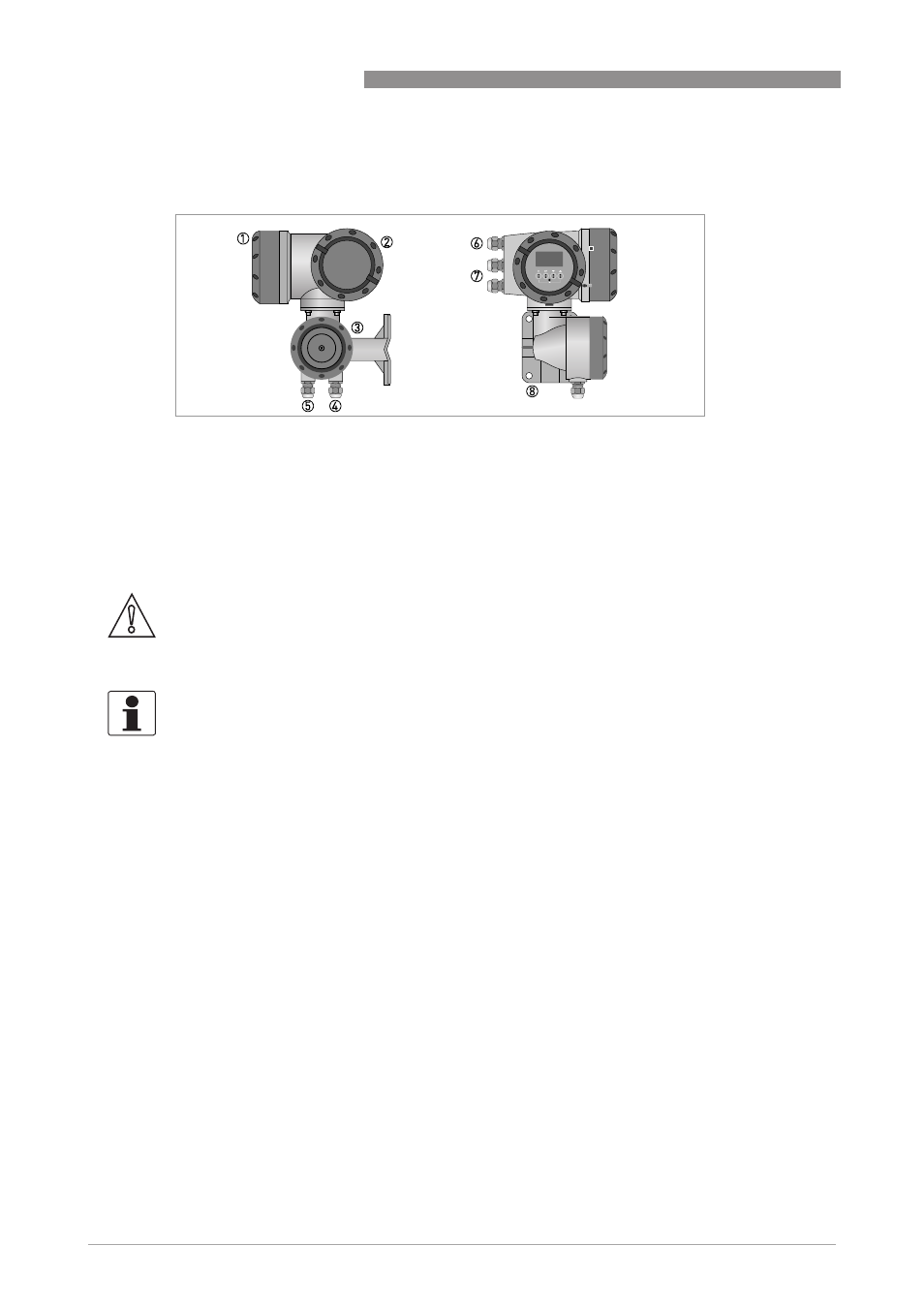

Figure 2-3: Construction of the field housing
1 Cover for electronics and display
2 Cover for power supply and inputs/outputs terminal compartment
3 Cover for for measuring sensor terminal compartment with locking screw
4 Cable entry for measuring sensor signal cable
5 Cable entry for measuring sensor field current cable
6 Cable entry for power supply
7 Cable entry for inputs and outputs
8 Mounting plate for pipe and wall mounting
CAUTION!
The design of the TIDALFLUX field housing is different to the standard version shown here. There
is an additional bush for the interface cable. For detailed information refer to Connection of
cables on page 63
.
INFORMATION!
Each time a housing cover is opened, the thread should be cleaned and greased. Use only resin-
free and acid-free grease.
Ensure that the housing gasket is properly fitted, clean and undamaged.
