Installation, 2 wall mounting – KROHNE IFC 300 Converter EN User Manual
Page 26
3
INSTALLATION
26
IFC 300
www.krohne.com
08/2010 - 4000069803 - MA IFC 300 R04 en
3.7.2 Wall mounting
1 Prepare the holes with the aid of the mounting plate. For further information refer to
Mounting
plate, wall-mounted housing
on page 157.
2 Fasten the mounting plate securely to the wall.
3 Screw the signal converter to the mounting plate with the nuts and washers.

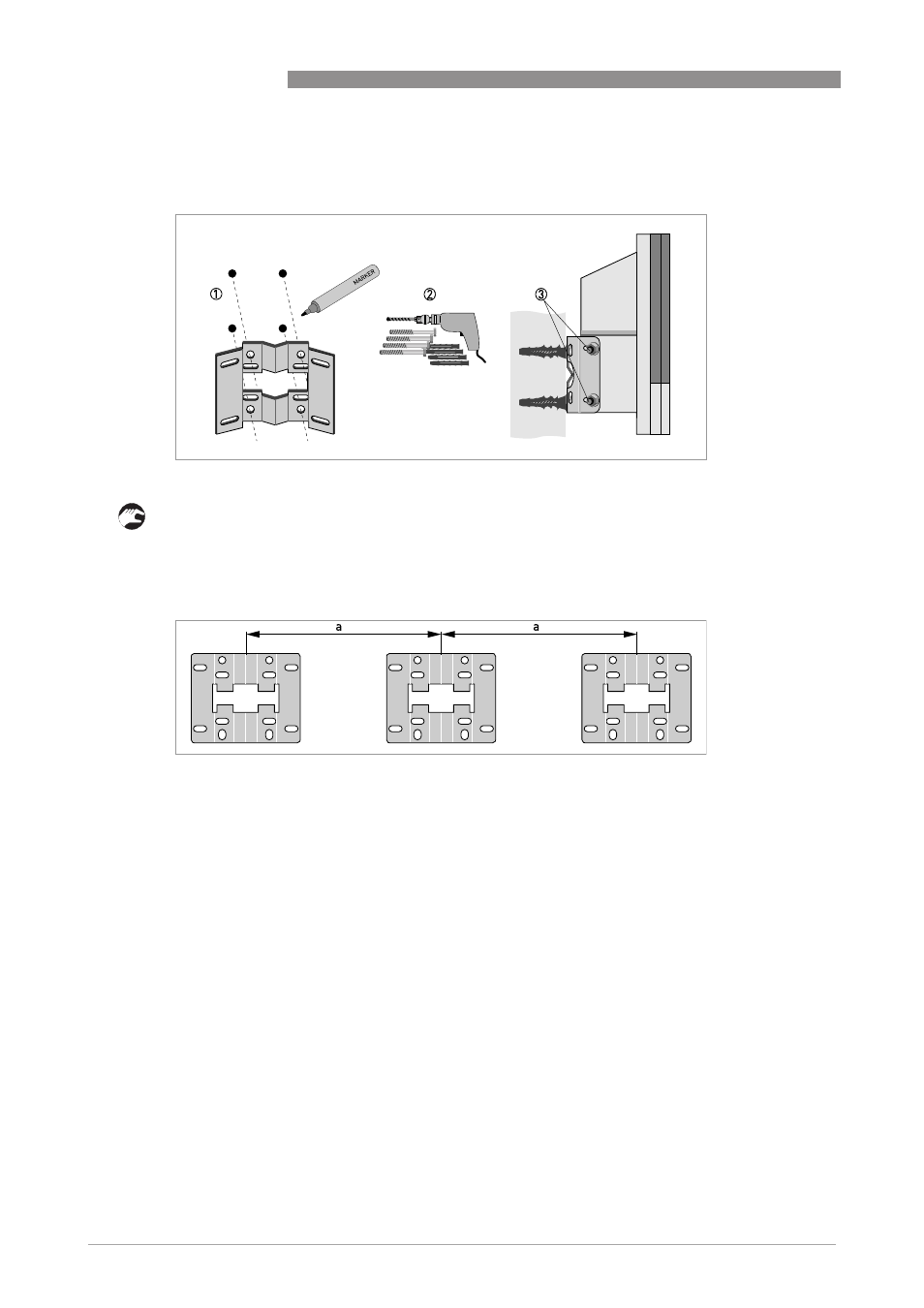

Figure 3-5: Wall mounting of the wall-mounted housing
Mounting multiple devices next to each other
a ≥ 240 mm / 9.4"
