KROHNE IFC 300 Converter EN - Manual (Page 84)

4
ELECTRICAL CONNECTIONS
84
IFC 300
www.krohne.com 08/2010 - 4000069803 - MA IFC 300 R04 en
4.12.3 Basic inputs/outputs
Current output active (HART ® ), basic I/Os
• U
int, nom
= 24 VDC nominal
• I ≤ 22 mA
• R
L
≤ 1 kΩ
Current output passive (HART ® ), basic I/Os
• U
int, nom
= 24 VDC nominal
• U
ext
≤ 32 VDC
• I ≤ 22 mA
• U
0
≥ 1.8 V
• R
L
≤ (U
ext
- U
0
) / I
max
CAUTION!
Observe connection polarity.

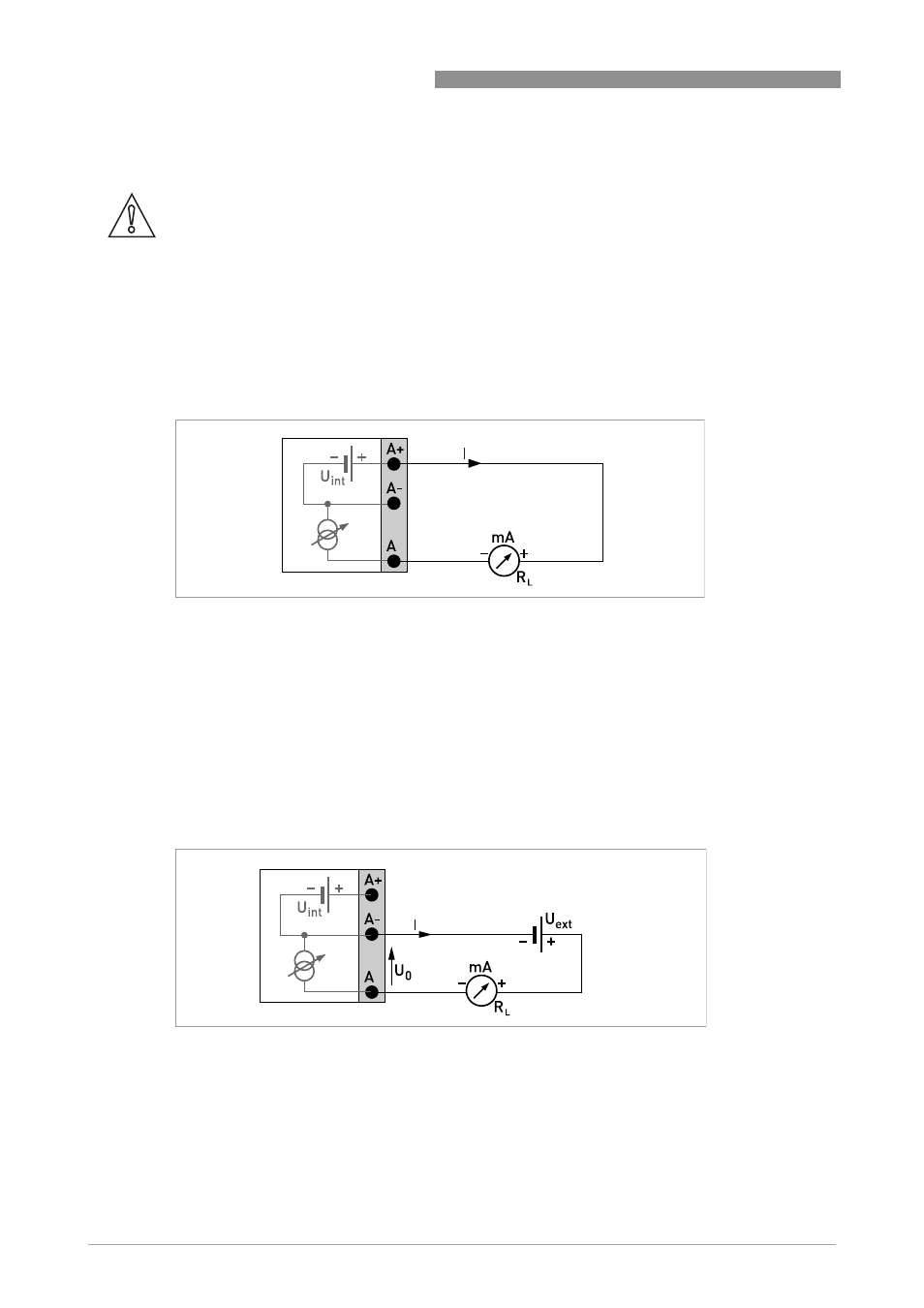

Figure 4-44: Current output active I
a
Figure 4-45: Current output passive I
p
