TECHNICAL DATA
8
119
OPTIWAVE 5200 C/F
www.krohne.com
07/2013 - 4001904902 - HB OPTIWAVE 5200 R02 en
Purging system and heating/cooling system: Dimensions in mm
Purging system and heating/cooling system: Dimensions in inches
Purging and heating/cooling system options

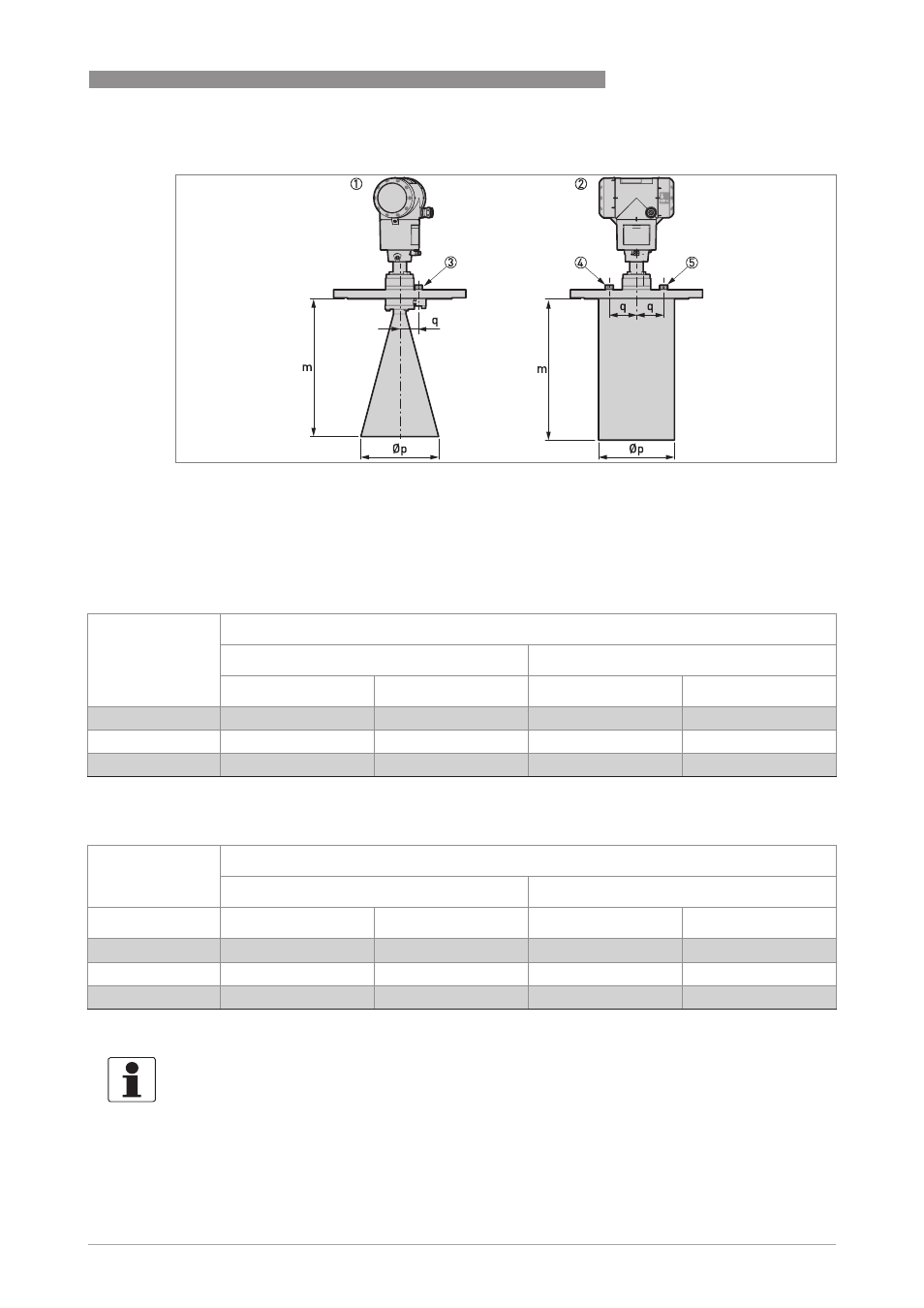

Figure 8-20: Purging and heating/cooling system options
1 Flange connection with purging option
2 Flange connection with heating/cooling system option
3 G ¼ threaded connection for purging system (the plug is supplied by the manufacturer)
4 G ¼ threaded connection for the heating/cooling system outlet (the plug is supplied by the manufacturer)
5 G ¼ threaded connection for the heating/cooling system inlet (the plug is supplied by the manufacturer)
Dimensions
[mm]
Metallic Horn antenna
Purging system
Heating/cooling system
DN150 / 6¨
DN200 / 8¨
DN150 / 6¨
DN200 / 8¨
m
m
m
m
223
351
202
360
1
Øp
Øp
Øp
Øp
140
200
139.7
195
q
q
34
34
53
70
1 This is the standard length. Longer on request.
Dimensions
[inches]
Metallic Horn antenna
Purging system
Heating/cooling system
DN150 / 6¨
DN200 / 8¨
DN150 / 6¨
DN200 / 8¨
m
m
m
m
8.78
13.82
8.0
14.17
1
Øp
Øp
Øp
Øp
5.51
7.87
5.5
7.68
q
q
1.34
1.34
2.1
2.76
1 This is the standard length. Longer on request.
INFORMATION!
All wetted parts (flange, antenna and heating/cooling jacket) of the heating/cooling system
option are made of 316Ti / 1.4571.
