8
TECHNICAL DATA
118
OPTIWAVE 5200 C/F
www.krohne.com 07/2013 - 4001904902 - HB OPTIWAVE 5200 R02 en
Special antenna extensions: Dimensions in mm
Special antenna extensions: Dimensions in inches
Special antenna extensions for tanks with obstructions (DN150 / 6¨ and DN200 / 8¨
Metallic Horn antenna options only)

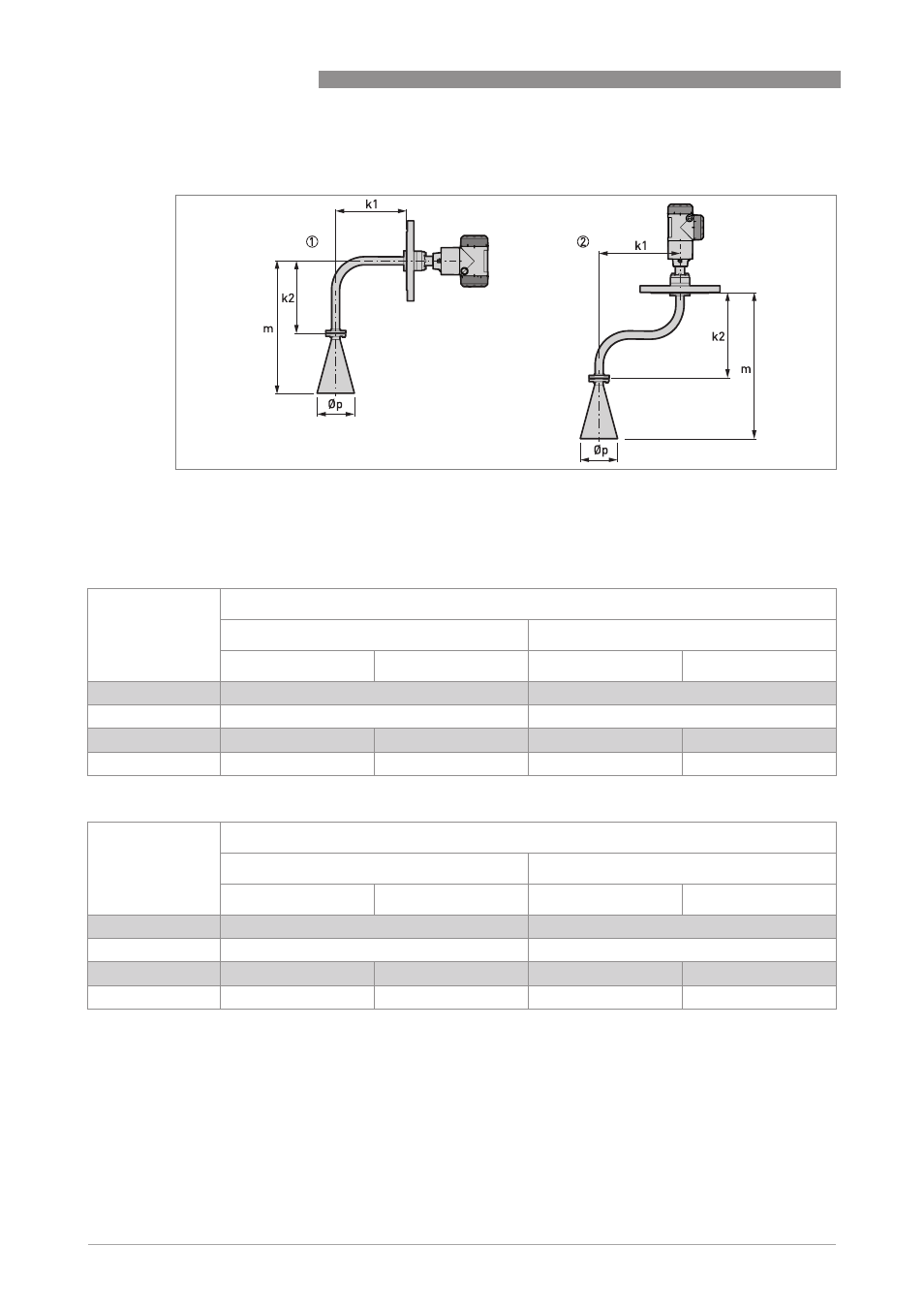

Figure 8-19: Special antenna extensions for tanks with obstructions (DN150 / 6¨ and DN200 / 8¨ Metallic Horn antenna
options only)
1 "L" (right angle) antenna extension
2 "S" antenna extension
Dimensions
[mm]
Metallic Horn antenna
With "L" (right angle) extension With "S" extension
DN150 / 6¨ DN200 / 8¨ DN150 / 6¨ DN200 / 8¨
k1 k1 k1 k1 271 300
k2 k2 k2 k2 271 322
m m m m 494 606 545 657
Øp Øp Øp Øp 140 200 140 200
Dimensions
[inches]
Metallic Horn antenna
With "L" (right angle) extension With "S" extension
DN150 / 6¨ DN200 / 8¨ DN150 / 6¨ DN200 / 8¨
k1 k1 k1 k1 10.67 11.81
k2 k2 k2 k2 10.67 12.68
m m m m 19.45 23.86 21.46 25.87
Øp Øp Øp Шp 5.51 7.87 5.51 7.87
