MEASUREMENT
91
Enters: Sets the NoGo condition to
when the input signal stays within
the limit boundary.

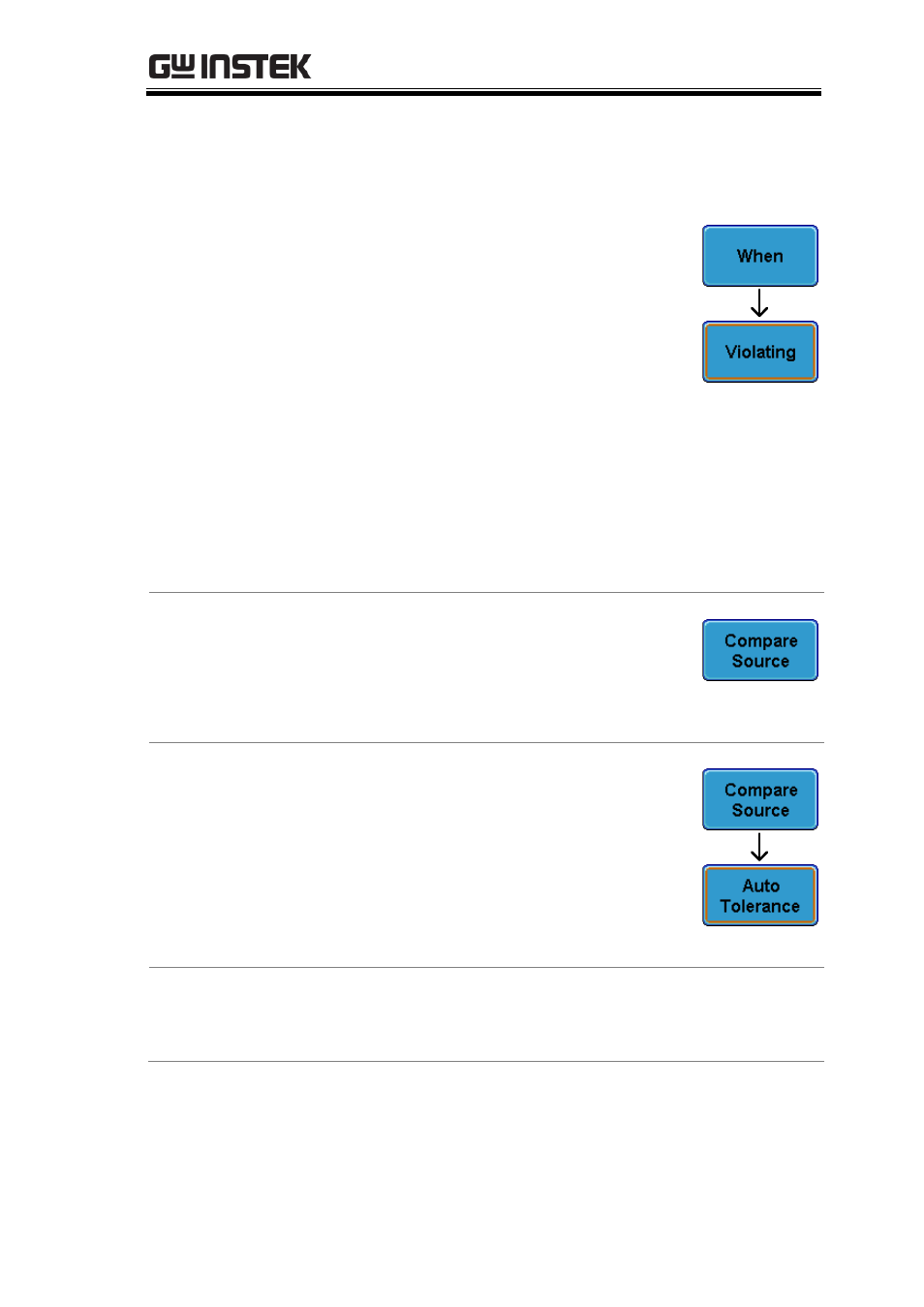

2. Press When again to change the
menu to Violating. Use the Variable
knob to choose the action for when
a violation occurs.
Violating Stop: The waveform will be frozen.
Stop_Beep: The waveform will be
frozen and a beep will be output.
Continue: Ignore the violation.
Continue_Beep: Output a beep, but
continue to monitor the signal.
Source 1. Press Compare Source from the
bottom menu and use the Variable
knob to select the source.
Source CH1, CH2, CH3, CH4
Tolerance
Boundary 1. To set a tolerance, press Compare
Source again to toggle the menu to
Auto Tolerance. Use the Variable
knob to choose the tolerance as a
percentage.
Violating 0.4% ~ 40% (.4% steps)
Note If a tolerance is set, the maximum
and minimum boundary is reset as
the tolerance boundary.
