MEASUREMENT
71

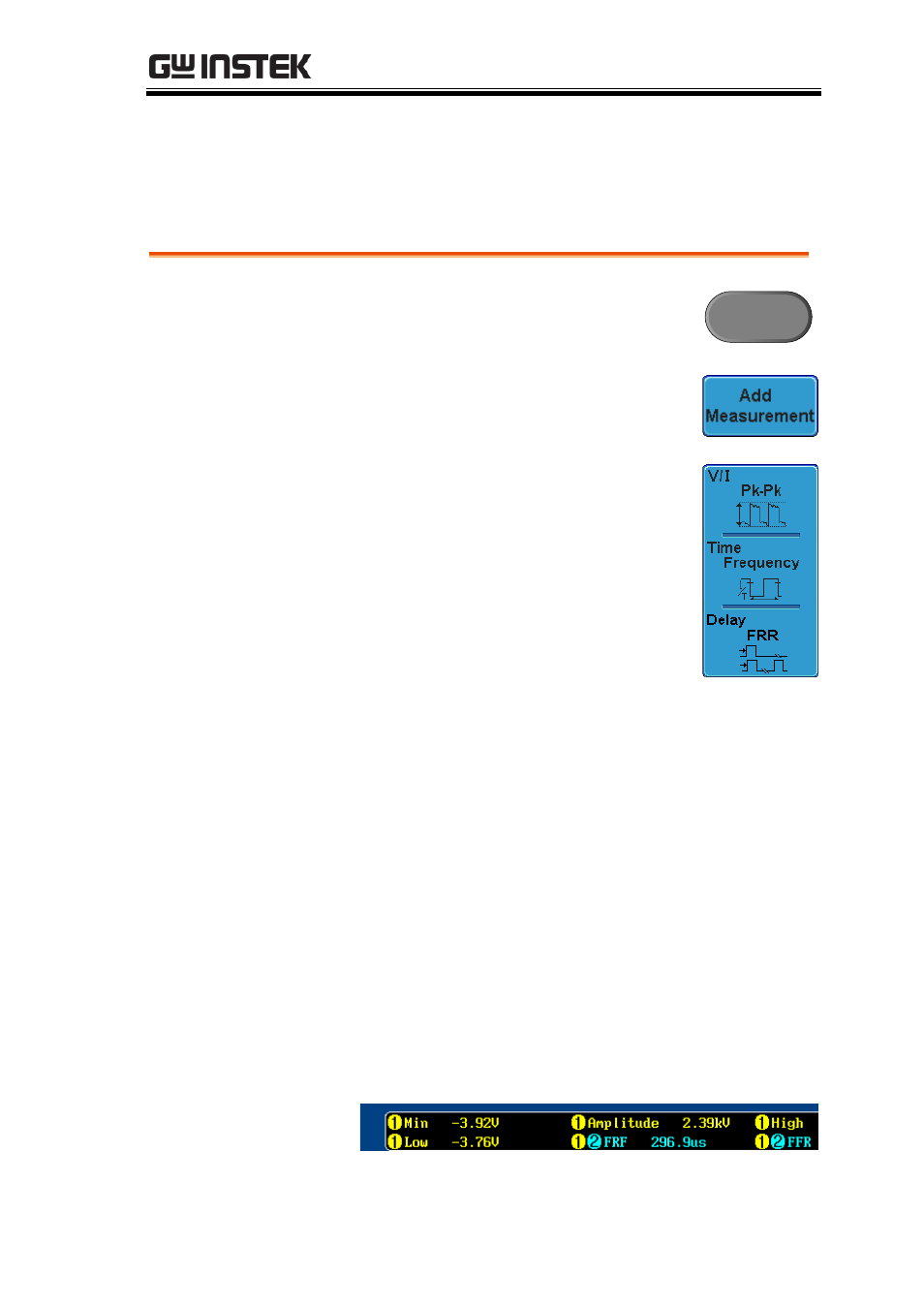

Individual Mode
Individual mode shows up to eight selected measurement items on
bottom of the screen from any channel source.
Add
Measurement
Item 1. Press the Measure key.
Measure
2. Press Add Measurement from the
bottom menu.
3. Choose either a V/I, Time or Delay
measurement from the side menu.
V/I
(Voltage/
Current) Pk-Pk, Max, Min, Amplitude, High,
Low, Average, RMS, ROVShoot,
FOVShoot, RPREShoot, FPREShoot
Time Frequency, Period, RiseTime,
FallTime, +Width, –Width, Duty
Cycle
Delay FRR, FRF, FFR, FFF, LRR, LRF, LFR,
LFF, Phase
4. All individual measurements will be displayed
in a window on the bottom of the screen. The
channel number and channel color indicate the
measurement source: yellow = CH1, blue =
CH2, pink = CH3, green = CH4.
