MEASUREMENT
69

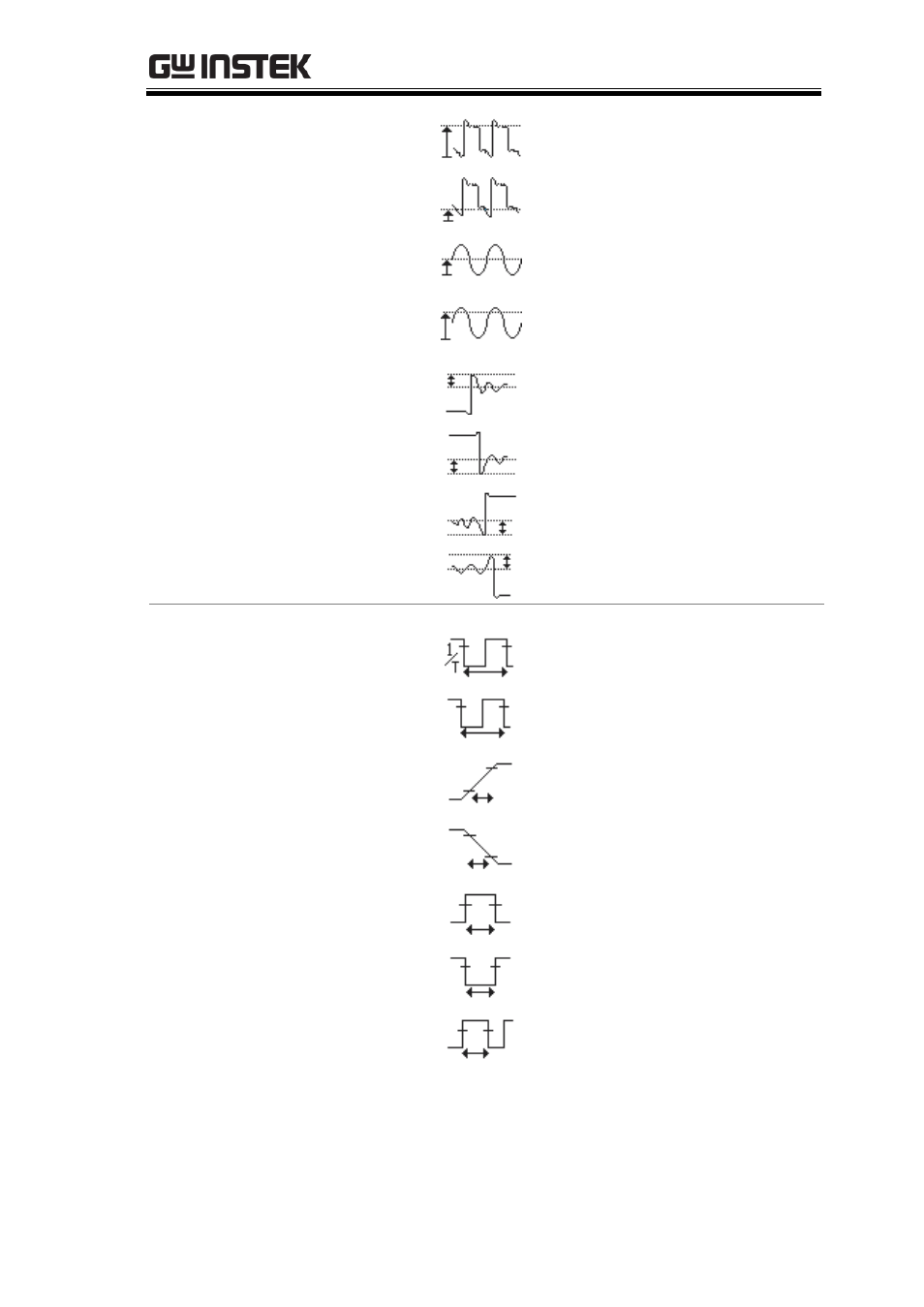

High Global high voltage
Low Global low voltage
Average Averaged voltage of the first
cycle
RMS RMS (root mean square)
voltage
ROVShoot Rise overshoot voltage
FOVShoot Fall overshoot voltage
RPREShoot Rise preshoot voltage
FPREShoot Fall preshoot voltage
Time
Measurement Frequency Frequency of the waveform
Period Waveform cycle time
(=1/Freq)
RiseTime Rising time of the pulse
(~90%)
FallTime Falling time of the pulse
(~10%)
+Width Positive pulse width
–Width Negative pulse width
Duty Cycle Ratio of signal pulse
compared with whole cycle
=100x (Pulse Width/Cycle)
