MEASUREMENT
73

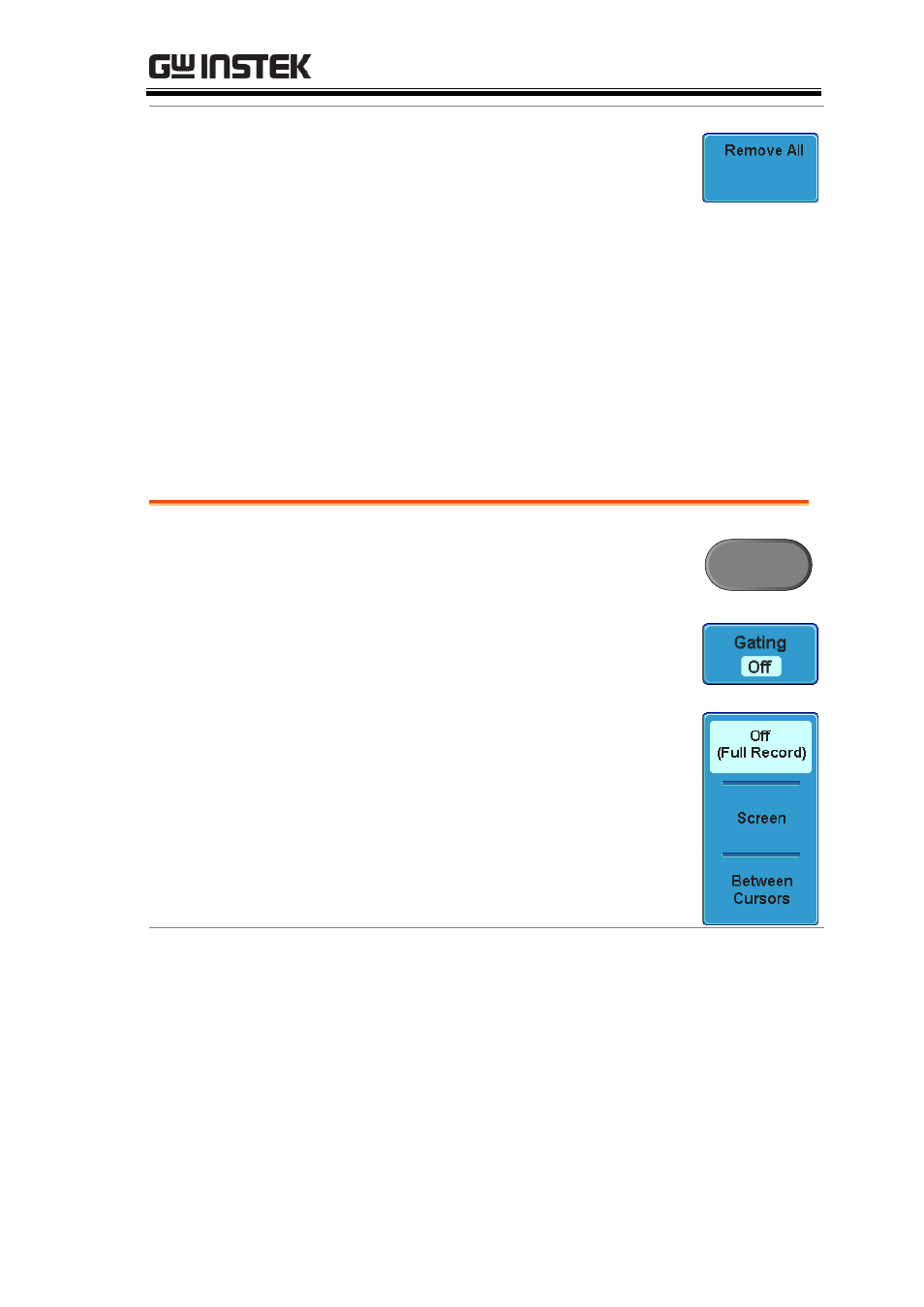

Remove All Items Press Remove All to remove all the
measurement items in full screen
mode, or to remove all the
measurement items for the active
window in split screen mode.
Gated mode
Some automatic measurements can be limited to a “gated” area
between cursors. Gating is useful for measuring a magnified
waveform or when using a fast time base. The Gated mode has
three possible configurations: Off (Full Record), Screen and
Between Cursors.
Set Gating Mode 1. Press the Measure key.
Measure
2. Press Gating from the bottom
menu.
3. Choose one of the gating modes
from the side menu: Off (Full
Record), Screen, Between Cursors
Cursors On
Screen If Between Cursors is selected, the
cursor positions can be edited by
using the cursor menu. Page 76
