Vertical accuracy calibration – GW Instek GDS-3000 Series User Manual User Manual
Page 189
MAINTENANCE
189

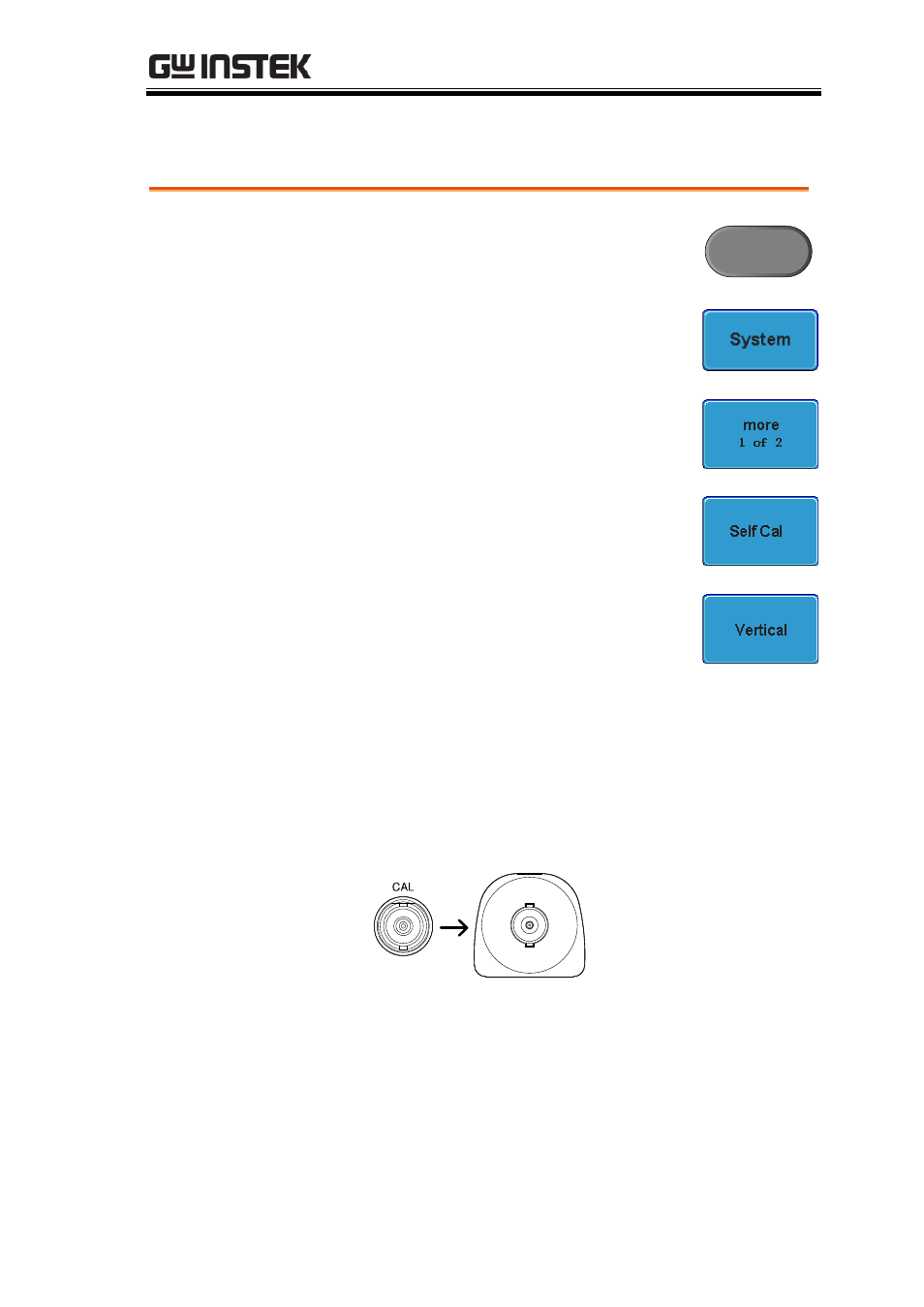

Vertical Accuracy Calibration
Panel Operation
1. Press the Utility key.
Utility
2. Press System from the bottom
menu.
3. Press more 1 of 2 from the side
menu.
4. Press Self Cal on the side menu.
5. Press Vertical on the side menu.
6. A message appears to “Set CAL to CH1, then
press F1”.
7. Connect the calibration signal from the rear
panel to the Channel1 input with a BNC cable.
CH1
