GDS-3000 Series User Manual
68

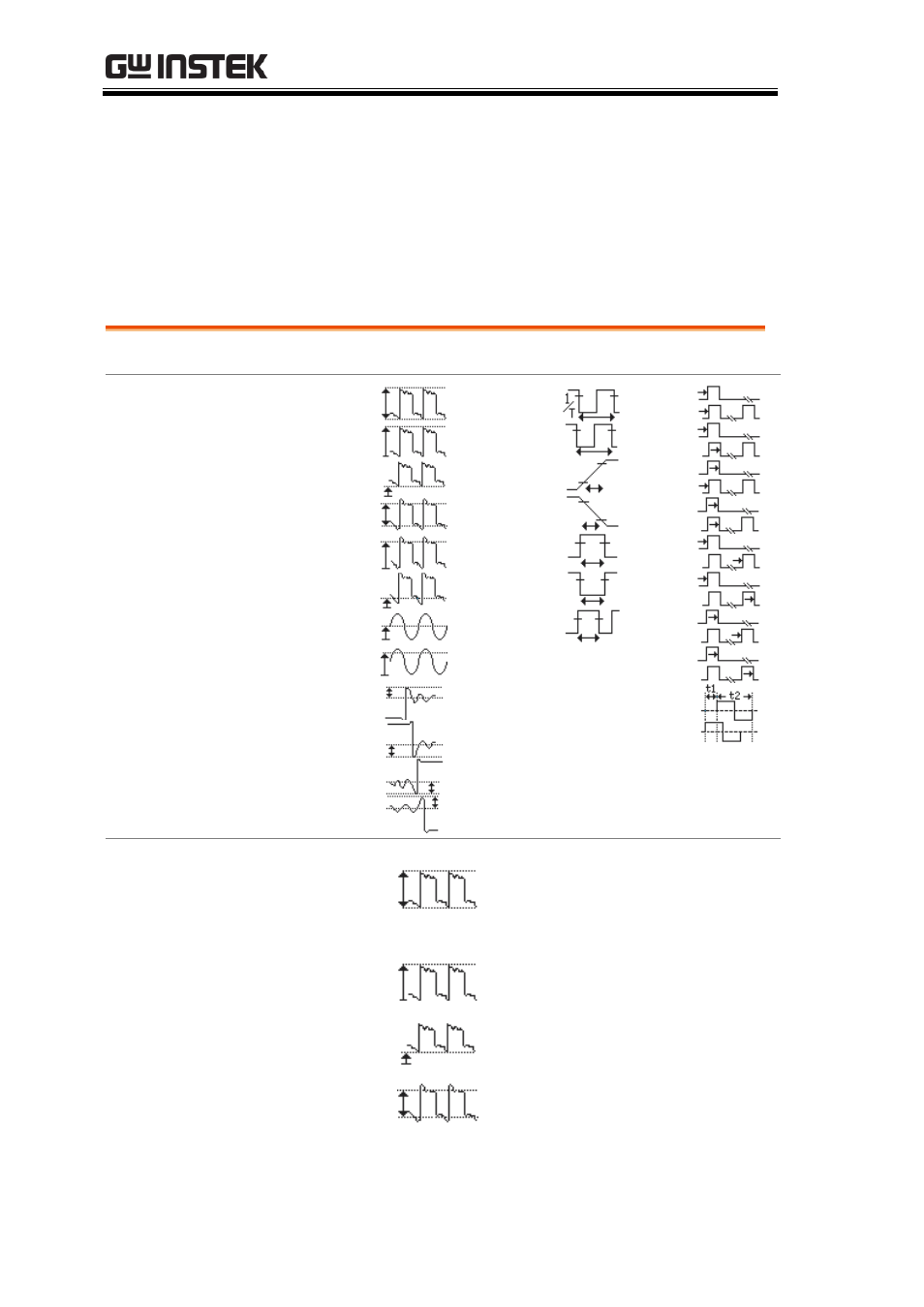

Automatic Measurement
The automatic measurement function measures and updates major
items for Voltage/Current, Time, and Delay type measurements.
Measurement Items
V/I Measurements Time Meas. Delay Meas.
Overview
Pk-Pk
Max
Min
FOVShoot
ROVShoot
RMS
Average
Low
High
Amplitude
RPREShoot
FPREShoot
Frequency
Dutycycle
-Width
+Width
FallTime
RiseTime
Period
FRR
FRF
FFR
Phase
LFF
LFR
LRF
LRR
FFF
Voltage/Current
Measurement
Pk-Pk
(peak to
peak)
Difference between positive
and negative peak voltage
(=Vmax − Vmin)
Max Positive peak voltage
Min Negative peak voltage
Amplitude Difference between global
high and global low voltage
(=Vhi − Vlo)
