GETTING STARTED
23

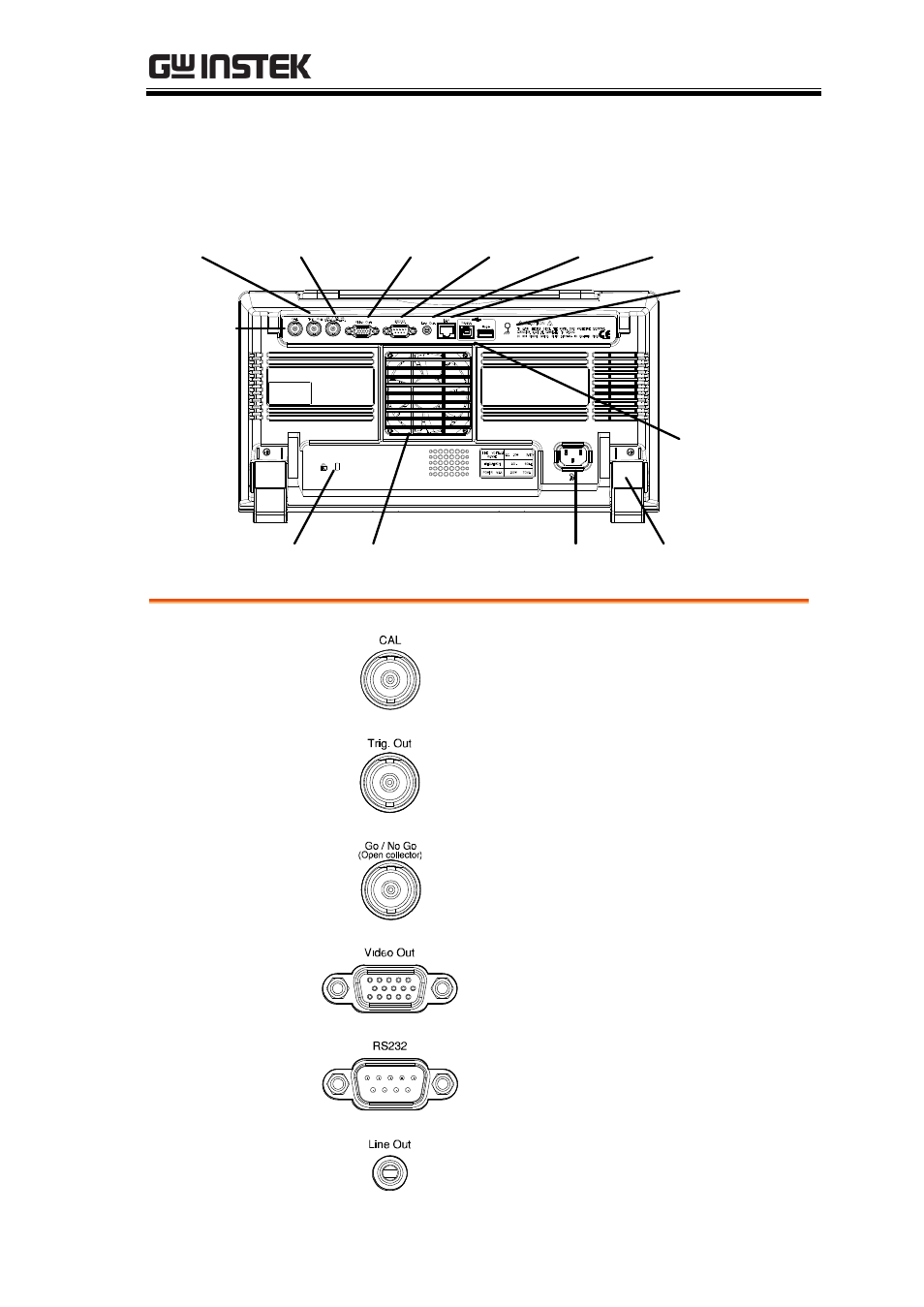

Rear Panel
Calibration
output
Video
Out RS232C
Output Line
out LAN
Port
USB
Device/
Host port
Rear
stand Power input
socket Fan Key lock
Go/No Go
output Trigger
output
Ground
strap
connector
Calibration
Output Outputs the signal for vertical scale
accuracy calibration (page 187).
Trigger Output Outputs the trigger timing.
Go-No Go
Output Outputs Go-No Go test results
(page 87) as 500us pulse signal.
Video Out Outputs SVGA resolution to an
external display.
RS232 RS232 remote control.
Line Out Audio line out.
