GDS-3000 Series User Manual
84

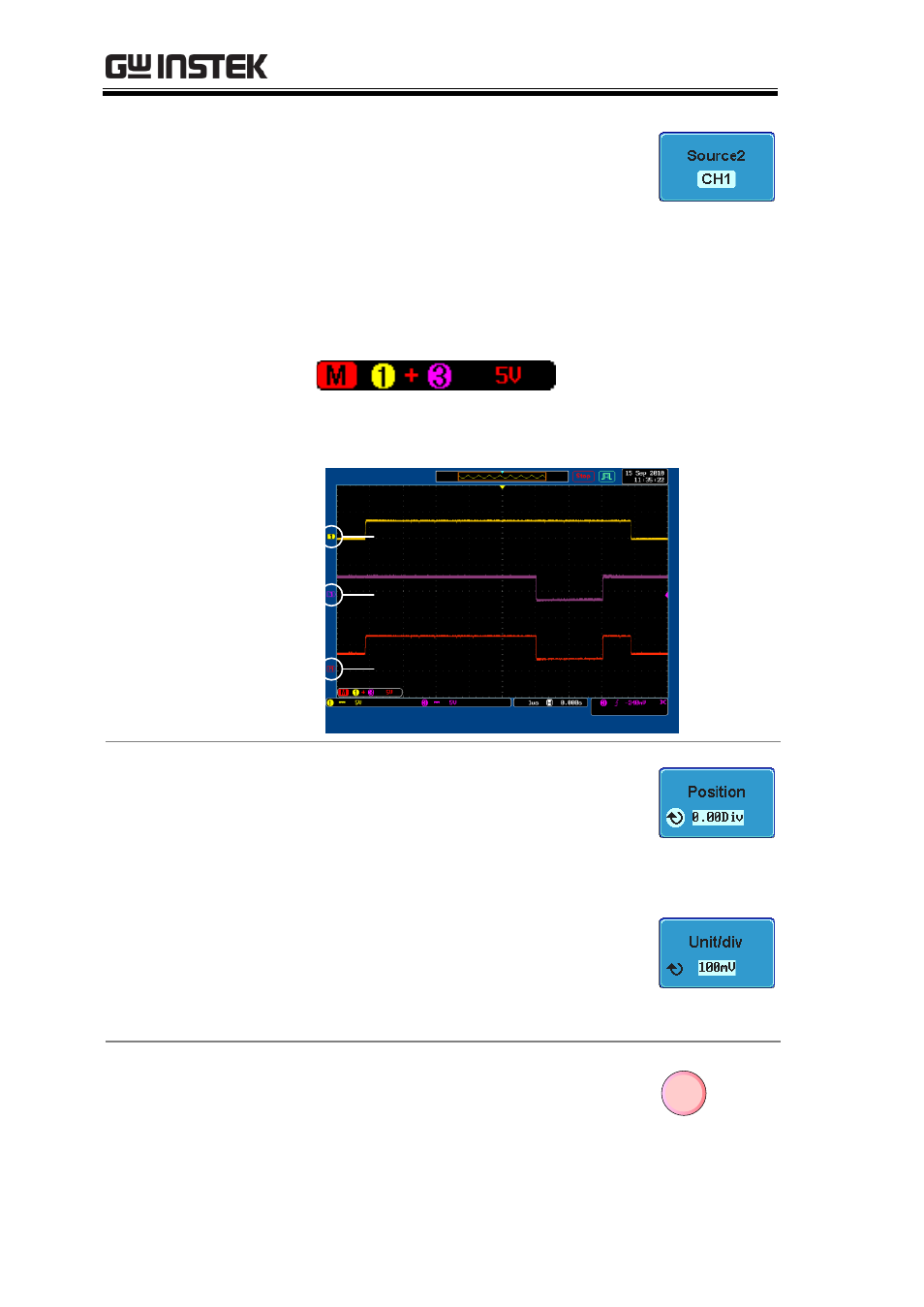

5. Select Source 2 from the side menu.
Range CH1~4, Ref~4
6. The math measurement result appears on the
display. The vertical scale of the math
waveform appears at the bottom of the screen.
From left: Math function, source1, operator,
source2, Unit/div
Example
Math
Source 2
Source 1
Position and Unit To move the math waveform
vertically, press the Position key from
the side menu and use the variable
knob to set the position.
To change the unit/div settings, press
Unit/div, then use the variable knob
change the unit/div.
Range 2mV~1kV (1-2-5 steps)
Turn Off Math To turn off the Math result from the
display, press the Math key again.
M
