GDS-3000 Series User Manual
90

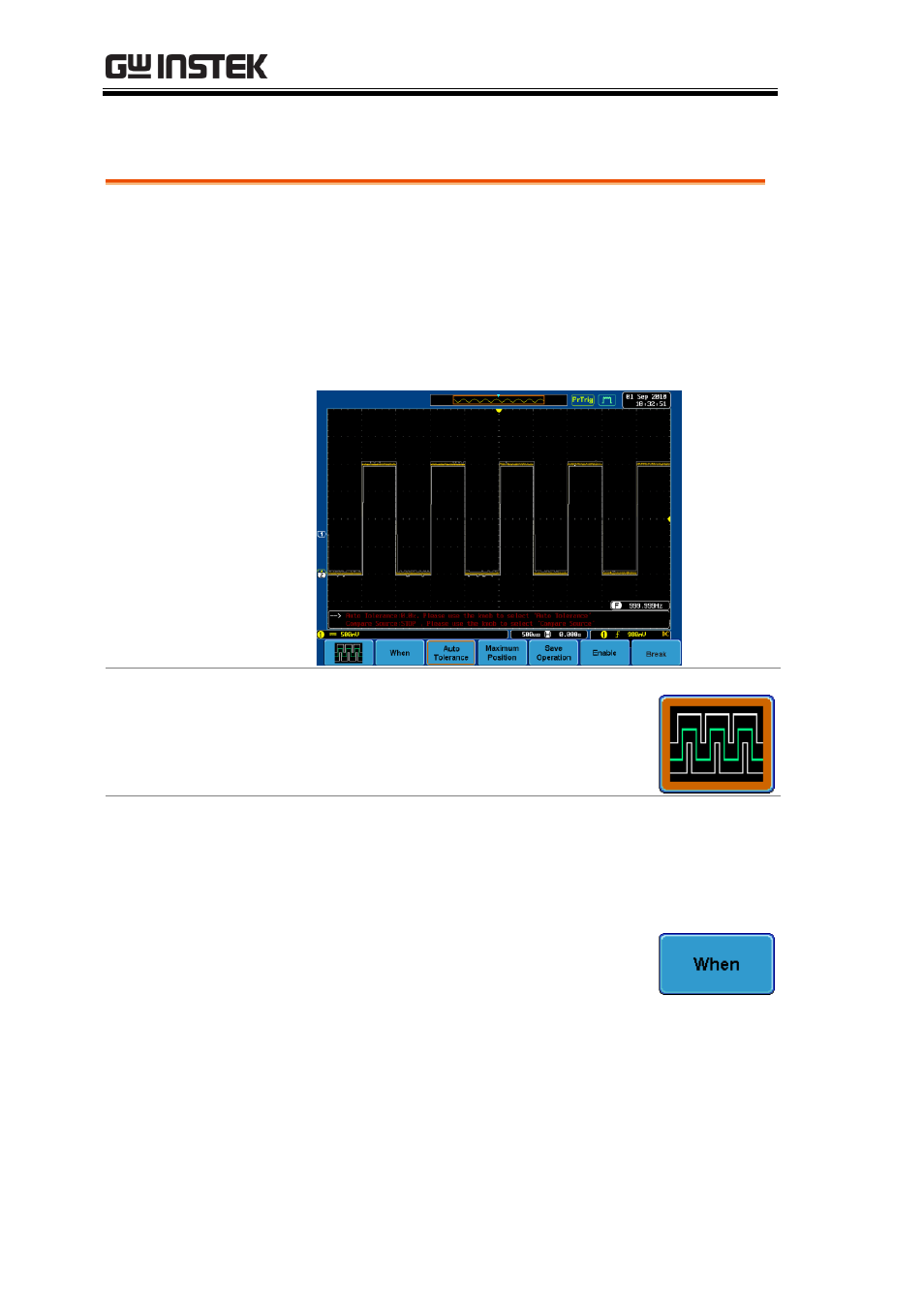

Using Go_NoGo
Background The Go-NoGo test checks if a waveform fits inside
a user-specified maximum and minimum
boundary (boundary template). Boundary
templates are automatically created from a source
channel. Boundary tolerance and violation
conditions can be set.
Choose the Go_NoGo application
from the APP. menu. See page 87.
Go-NoGo
Conditions Select the Go-NoGo conditions (When) and actions
when a Go-NoGo condition has been met
(Violating).
1. Press When from the bottom menu
and use the Variable knob to select
the When condition.
When Exits: Sets the NoGo condition to
when the input signal exceeds the
limit boundary.
