GDS-3000 Series User Manual
26

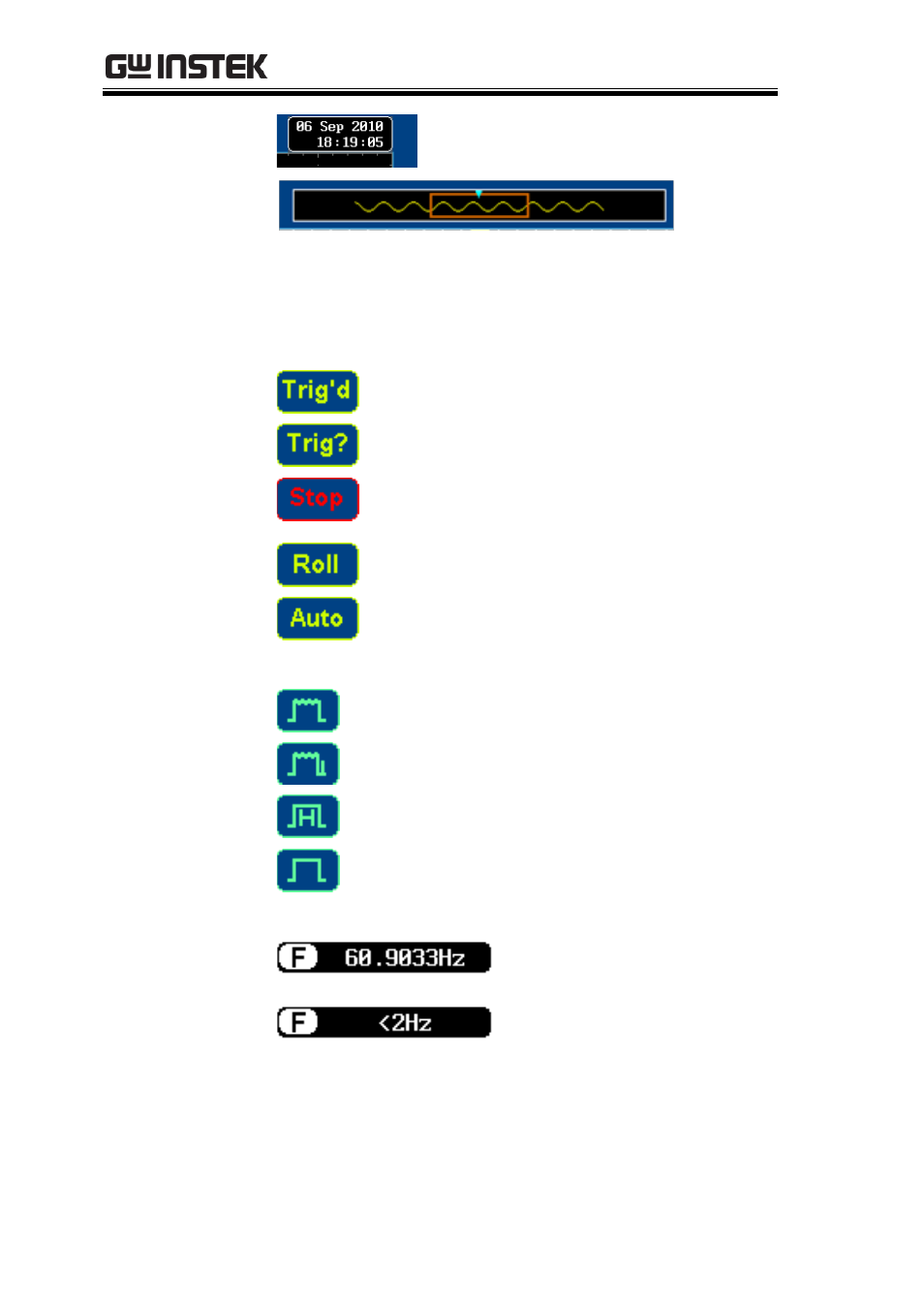

Date and Time Current date and time (page 144).
Memory Bar
The ratio and the position of the
displayed waveform compared
with the internal memory (page
112).
Trigger Status Triggered.
Not triggered, display not updated.
Trigger stopped. Also appears in
Run/Stop (page59).
Roll mode.
Auto trigger mode.
For trigger details, see page 125.
Acquisition Mode Normal mode
Peak detect mode
Hi Resolution
Average mode
For acquisition details, see page 100.
Signal Frequency
Shows the trigger source
frequency.
Indicates the frequency is
less than 2Hz (lower
frequency limit).
