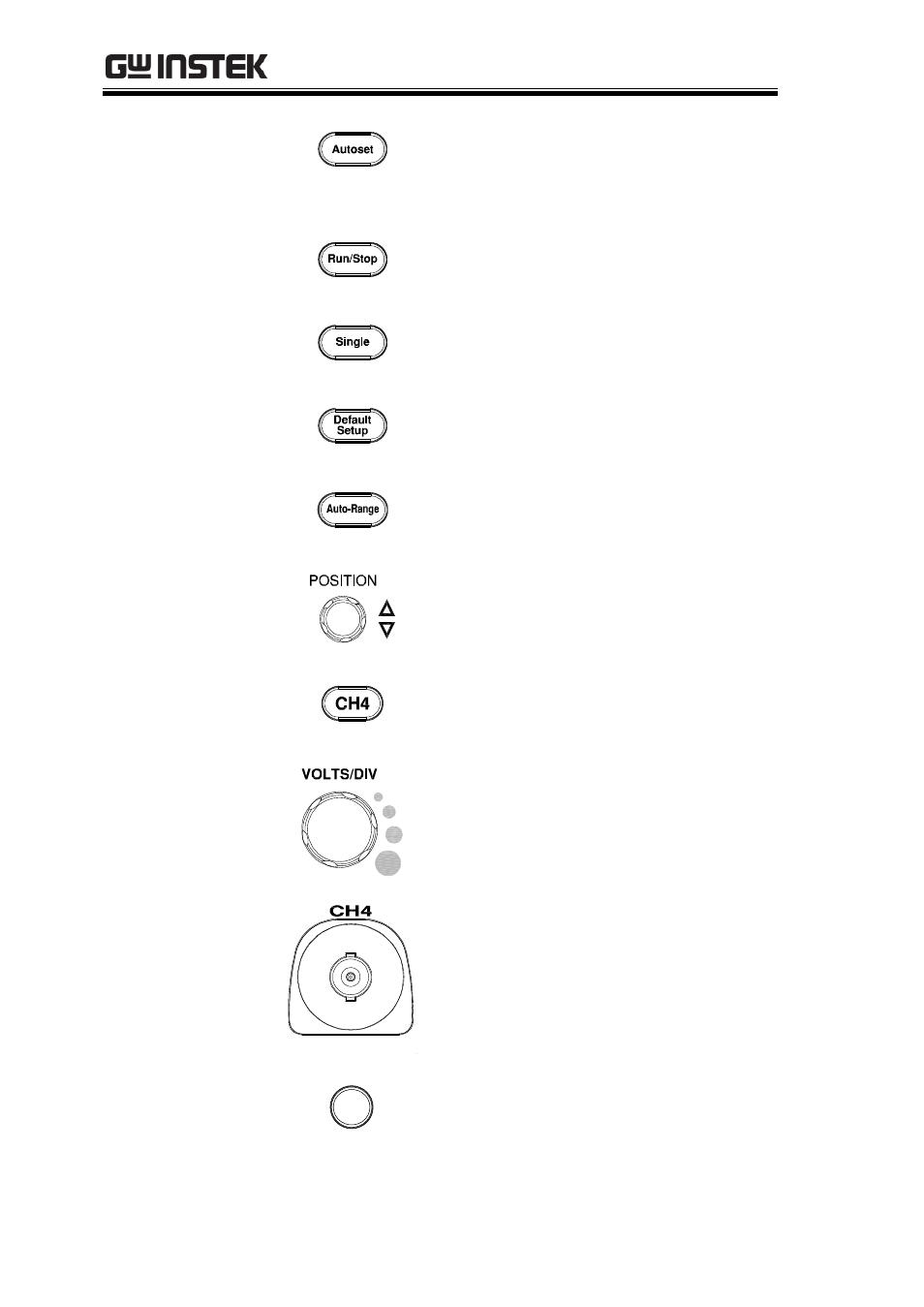

Autoset Press the Autoset key to
automatically set the trigger,
horizontal scale and vertical scale.
Run/Stop Key Press to freeze (Stop) or continue
(Run) signal acquisition (page59).
Single Sets the acquisition mode to single
triggering mode.
Default Setup Resets the oscilloscope to default
settings.
Auto-Range Sets the oscilloscope range
automatically.
Vertical
POSITION Sets the vertical position of the
waveform.
Channel Menu
Key Press the CH1~4 key to set the
channel.
VOLTS/DIV Knob Sets the vertical scale.
Input Terminals Accepts input signals. Input
impedance, selectable: 50Ω, 75Ω,
1MΩ.
Math Key
M
Use the math key to set and
configure math functions.
