MEASUREMENT
79

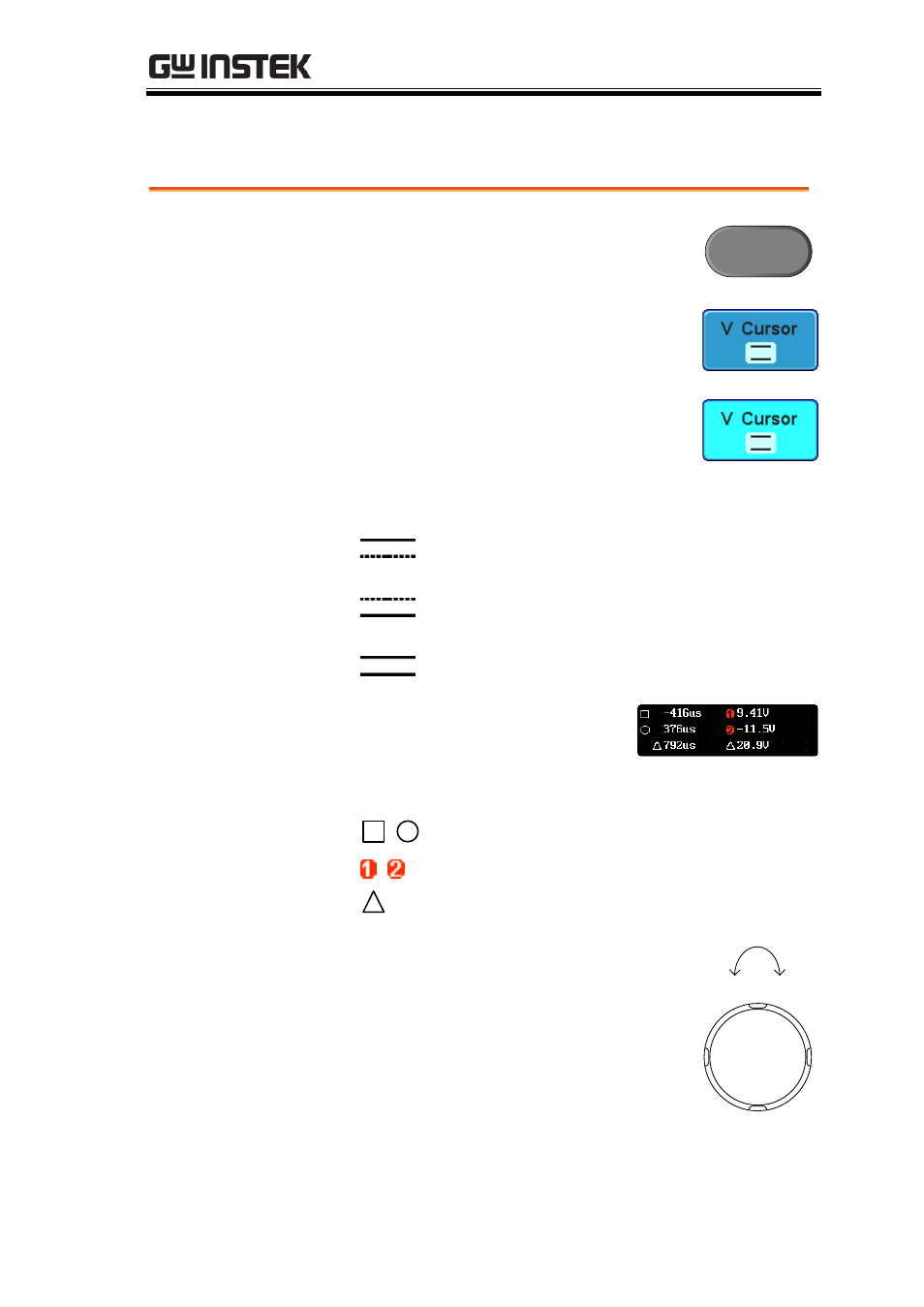

Use Vertical Cursors
Panel Operation/
Range 1. Press the Cursor key twice.
Cursor
2. Press V Cursor from the bottom
menu.
3. Press V Cursor repeatedly to toggle
the cursor type.
Range
Upper cursor movable, lower
cursor position fixed
Lower cursor movable, upper
cursor position fixed
Upper and lower cursor movable
together
4. The cursor position
information appears on the
top left hand side of the
screen.
, Time: cursor 1, cursor 2
, Voltage/Current: cursor1, cursor2
Delta (difference between cursors)
5. Use the Variable knob to move the
cursor(s) up or down.
VARIABLE
Up Down
