Select Display Graticule

Panel Operation

1. Press the Display menu key.

Display

2. Press Graticule from the bottom

menu.

3. From the side menu choose the

graticule display type.

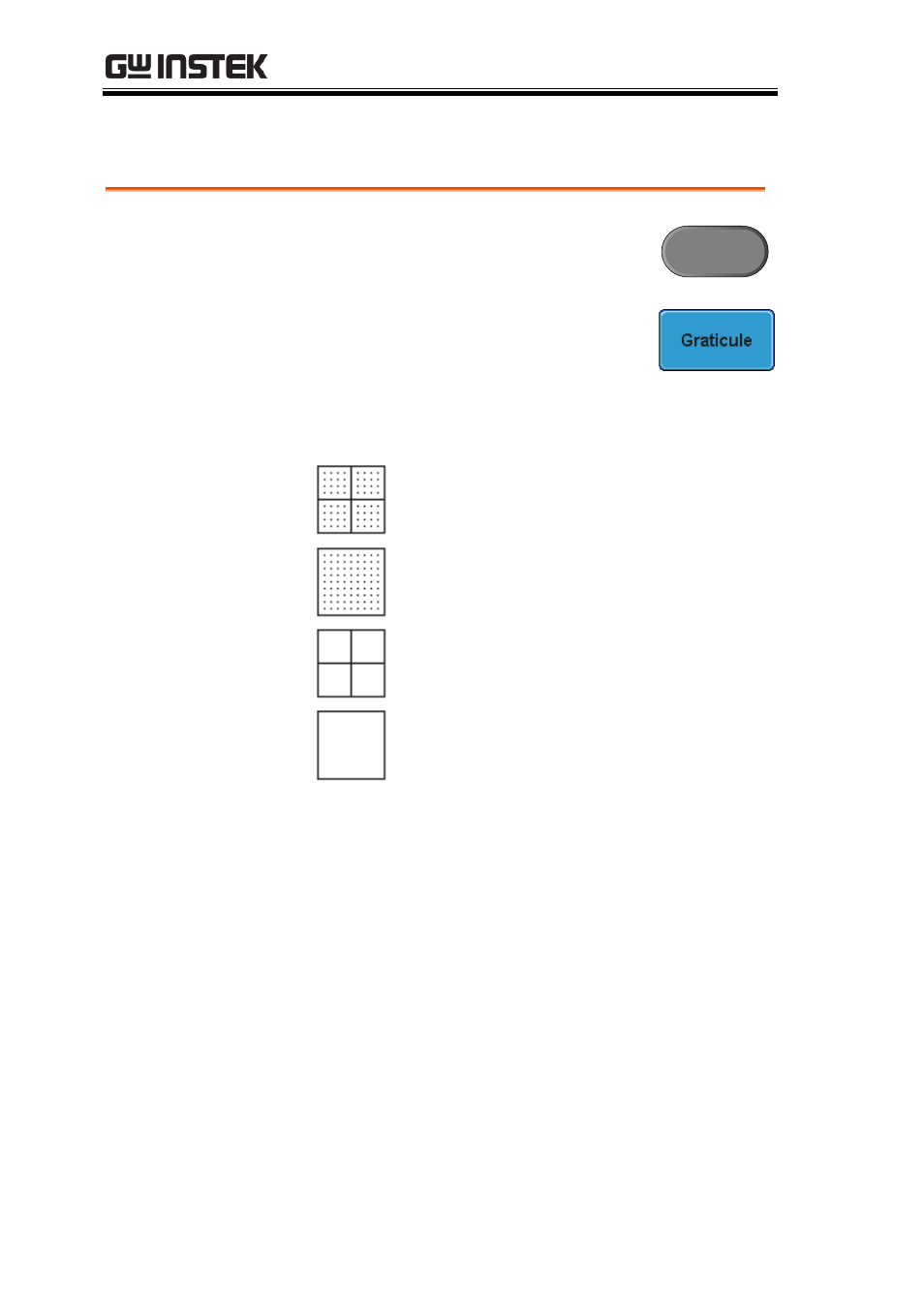

Full

: Shows the full grid; X and Y axis

for each division.

Grid

: Show the full grid without the X

and Y axis.

Cross Hair

: Shows only the center X

and Y frame.

Frame

: Shows only the outer frame.
