Choose a Source The channel source for measurement items can be
set either before or when selecting a measurement
item.

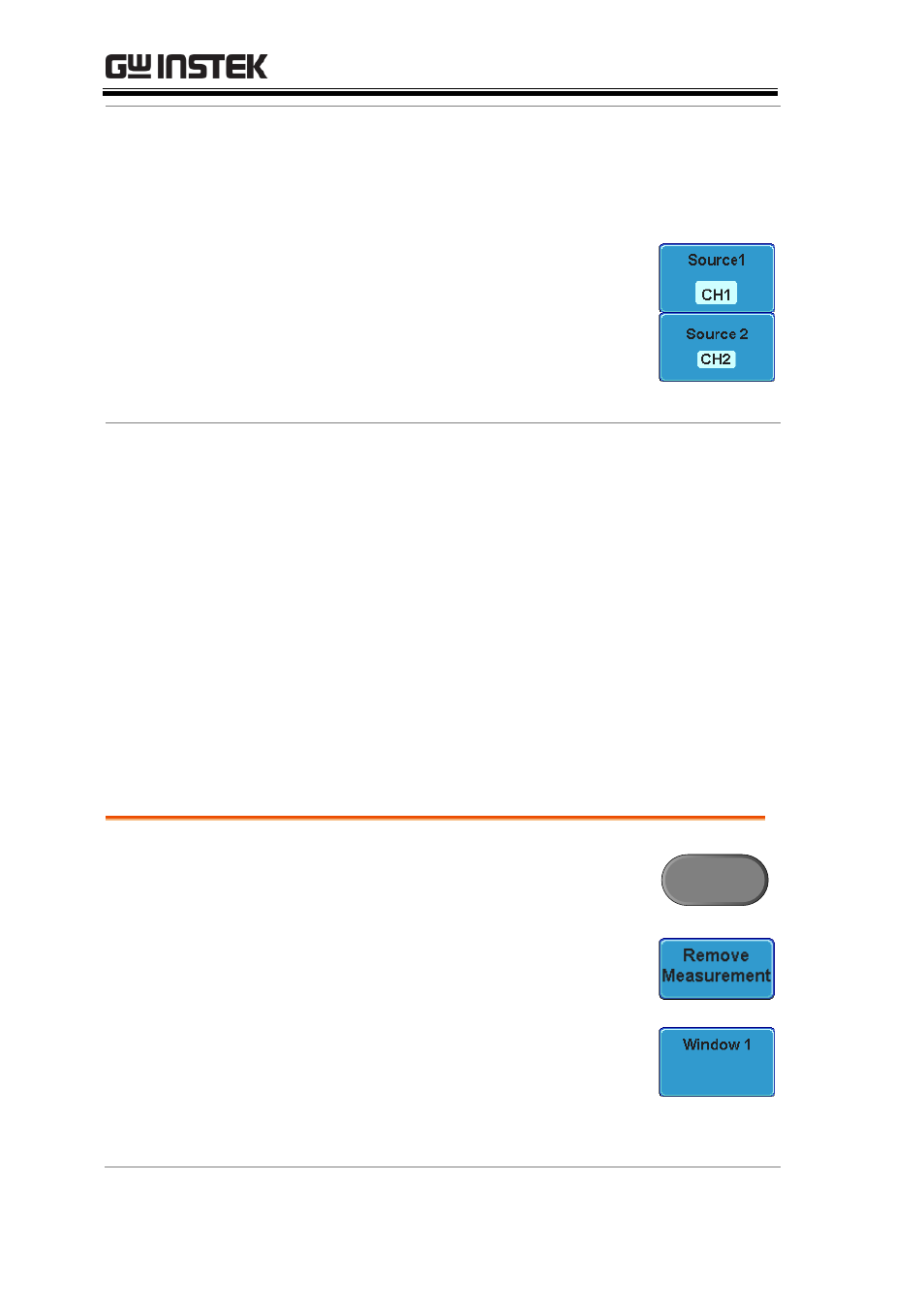

1. To set the source, press either the
Source1 or Source2 key from the
side menu and choose the source.
Source 2 is only for delay
measurements.
Range CH1, CH2, CH3, CH4
Split Window
Mode Individual mode can be used with the split
window mode. Each individual measurement will
be displayed in the split window that houses the
source of the measurement.
Delay measurements are not supported as only
one source can be used for each measurement in
split window mode.
Remove Measurement
Individual measurements can be removed at any time using the
Remove Measurement function.
Remove
Measurement
Item 1. Press the Measure key.
Measure
2. Press Remove Measurement from the
bottom menu.
3. Choose which measurement
window (if in split window mode)
the item is located in (Window 1~4)
and use the variable knob to
remove an item.
